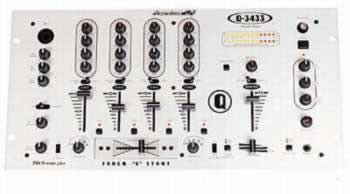

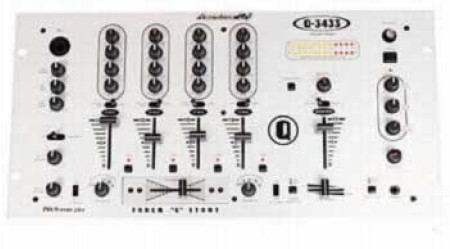

ADJ Q-3433-S 19 Mixer

american audio q-3433-s
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The Q-3433-S is American DJ at it's best! Fader "Q" start, balanced outputs, and much more put this mixer ahead of the pack!

• 19" rack mount
• 3 phono, 4 line, 3 auxiliaries & 3 mic inputs
• Fader "Q" Start w/ On/Off switch
• Fader "Q" On/Off switch
• Balanced XLR Outputs
• Bass, mid & treble control for mics
• Volume control for each mic
• Neutrik(tm) microphone connection
• 1/4 (6.3mm)/XLR On/off/talkover switch for DJ mic
• High quality Alps Feather Fader(tm) for smooth, clean crossfading
• On/Off Channel assign switch
• Gain control for each channel
• Bass, mid and treble control for each channel • Master volume control
• Stereo/Mono switch
• Cue mixing slider
• Split Cue monitoring Cue Level
• Control Cue button w/ LED for each channel • Master Level Indicators w/ peak hold
• Left/Right master balance
• 12V BNC light connector for gooseneck light
• Zone/Booth volume, treble and bass control
• Left & right turntable ground connectors
• Independent light control signal output for touch panels and chase controllers
• Soft-touch rubber knobs for better control
• Headphone bass cut switch
• Pre Fader Level Switch Line Output 20V
• Frequency Range: 20Hz - 20kHz, 20Hz - 20kHz, +/-1dB
• Distortion: <0.03%. Talkover: -15dB
• Headphone Impedance: 16 Ohms.
• Power: 115V 60Hz / 230V 50Hz switchable
• Crossfader: FF-5
• Dimensions: 19 W x 9.5 D x 2.25 H inches (4 rack mount spaces)

Additional Information

ManufacturerAmerican Audio
Product ConditionNew - On Clearance
