ADJ V-3000 Amplifier

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

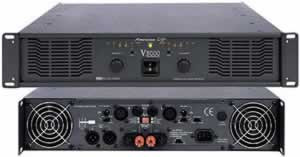

american audio v-3000
Features LED display with clip indicators, XLR and 1/4" inputs, a dual-speed fan and heatsink for cooling.
• 960 Watts per Channel at 2 ohms
• 690 Watts per Channel at 4 ohms
• 440 Watts per Channel at 8 ohms
• 1930 Watts Bridged Mono @ 4 ohms
• 1450 Watts Bridged Mono @ 8 ohms

FEATURES


• 800W RMS @ 2 Ohms, 1KHz, 1% THD per channel (stereo)
• 600W RMS @ 4 Ohms, 1KHz, 1% THD per channel (stereo)
• 400W RMS @ 8 Ohms, 1KHz, 1% THD per channel (stereo)
• 1500W RMS @ 4 Ohms, 1KHz, 1% THD per channel (mono bridged) / 1100W RMS @ 8 Ohms, 1KHz, 1% THD per channel (mono bridged)
• LED display with clip indicators.
• Subcrossover on rear - each channel selectable from normal to Subwoofer.
• Frequency knobs - adjust from 20 - 200 Hz.
• DC output protection.
• Short circuit protection.
• Total Harmonic Distortion: Less than 0.1%.
• Input sensitivity and Impedance: 1.0 V RMS (0 dBV).
• Hum and Noise: 100 dB, unweighted.
• Power Consumption: 10A @ 120V AC.
• Frequency Response: 10Hz - 40 kHz, 1 dB.
• Dimensions: 3.5H x 19W x 15.9D inches / 880mm x 483mm x 405mm.
• 120V/60Hz or 220V/50Hz switchable
• REAR FEATURES: DIP switch for limiter and 30Hz/50Hz low cut filters.
• Balanced XLR and 1/4 inch(6.3mm) input. XLR balanced outputs (through).
• Subcrossover Switch with Subwoofer Frequency Knobs: 20Hz-200200Hz.
• Amp Mode Switch: Stereo/Mono.
• 5-way binding banana plug channel outputs; either channel can be disabled independently.
• 2x dual speed fans with heatsink.
• Ground Lift Switch.

Additional Information

UPCN/A
SKUV-3000
ManufacturerAmerican Audio
Product ConditionNew - On Clearance
ReturnableNo
