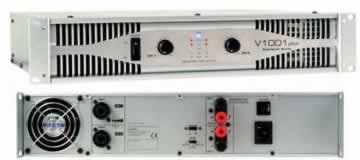

American Audio V1001 Power Amplifier

Output Power:
• 2 ohms, 1 khz 1% THD 450W RMS per channel
• 4 ohms, 1 khz 1% THD 350W RMS per channel
• 8 ohms, 1 khz 1% THD 230W RMS per channel (Bridged Mode, mono)
• 4 ohms, 1 khz 1% THD 890W RMS per channel
• 8 ohms, 1 khz 1% THD 700W RMS per channel
Total Harmonic Distortion (THD):
• Less than 0.1% (20Hz-20kHz, @ 8 Ohms)

Input Sensitivity & Impedance:
• 1.0v rms (0 dBv) (@ 4 Ohms)

Dimensions & Weight:
• Height : 3.5" (88cm)
• Width: 19" (48.3cm)
• Depth: 15.9" (40.5cm)
• Weight: 26.4 lbs (12 kg)

Frequency Response:
• .5dB, 1W RMS 8 ohms (10Hz - 28 kHz)
• 3dB, 1W RMS 8 ohms (5Hz - 80 kHz)

Hum & Noise:
• 100 dB, unweighted (@ 8 Ohms)

Signal to Noise Ratio:
• 104 dB , unweighted (@ 4 ohms full power) "A" Weighted

Slew Rate:
• 90v/usec

Damping Factor:
• 240 (@ 8 Ohms)

Protection Circuit:
• DC output protection, Overload protection
• Short circuit protection, On & Off protection

Special Features:
• Front panel reset

Power Consumption:
• 5A @ 120V AC (@ 8 Ohms)

Turn-On Thump Protection:
• Yes

Cooling System:
• Dual 1 speed fans & heatsink
