American Audio V6001PLUS Power Amplifier

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american audio v6001plus

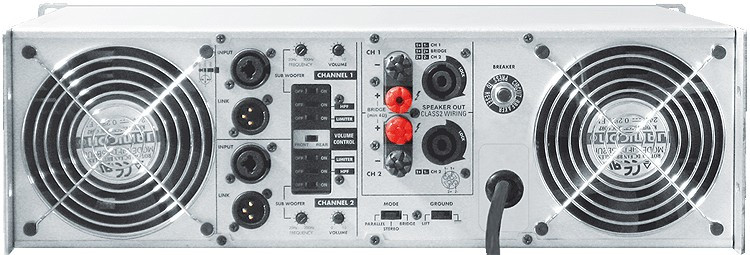

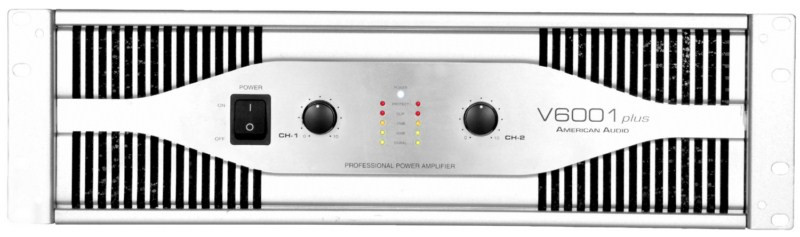

american audio v6001plus American Audio V6001PLUS Power Amplifier
Images may show accessories or configurations not packaged with this item.
Rugged Professional Powered Amplifier.

Output Power:
2 ohms, 1 khz 1% THD 2530W RMS per channel
4 ohms, 1 khz 1% THD 1920W RMS per channel
8 ohms, 1 khz 1% THD 1260W RMS per channel
(Bridged Mode, mono)
4 ohms, 1 khz 1% THD 5100W RMS per channel
8 ohms, 1 khz 1% THD 3650W RMS per channel

Total Harmonic Distortion (THD): Less than 0.03% (20Hz-20kHz, @ 4 Ohms)
Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 8 Ohms)

Dimensions & Weight:
Height : 5.25" (13.3cm)
Width: 19" (48.3cm)
Depth: 15.9" (40.5cm)
Weight: 62 lbs (28 kg)

Frequency Response: .5dB, 1W RMS 8 ohms (10Hz - 35 kHz)
3dB, 1W RMS 8 ohms (5Hz - 85 kHz)

Hum & Noise: 100 dB, unweighted (@ 8 Ohms)

Signal to Noise Ratio: 100 dB , unweighted (@ 4 ohms full power) "A" Weighted

Slew Rate: 25v/usec

Damping Factor: 500 (@ 8 Ohms)

Protection Circuit: DC output protection, Overload protection
Short circuit protection, On & Off protection

Special Features:
Sub Woofer
Crossover 20-200Hz
LED mode indicator
Contractor Smart' Feature (Switch on rear panel to disable front volume controls)

Power Consumption: 53A @ 120V AC (@ 4 Ohms) / 25.5A @ 240V AC (@ 4 Ohms)
Turn-On Thump Protection: Yes
Cooling System: Dual 2 speed fans & heatsink

Additional Information

ManufacturerAmerican Audio
Product ConditionNew - On Clearance
