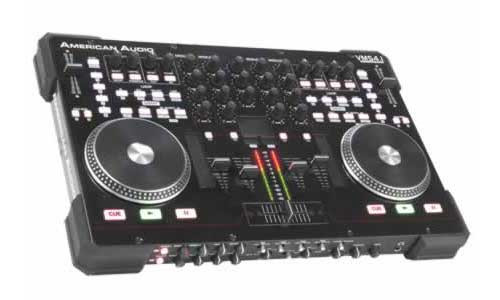

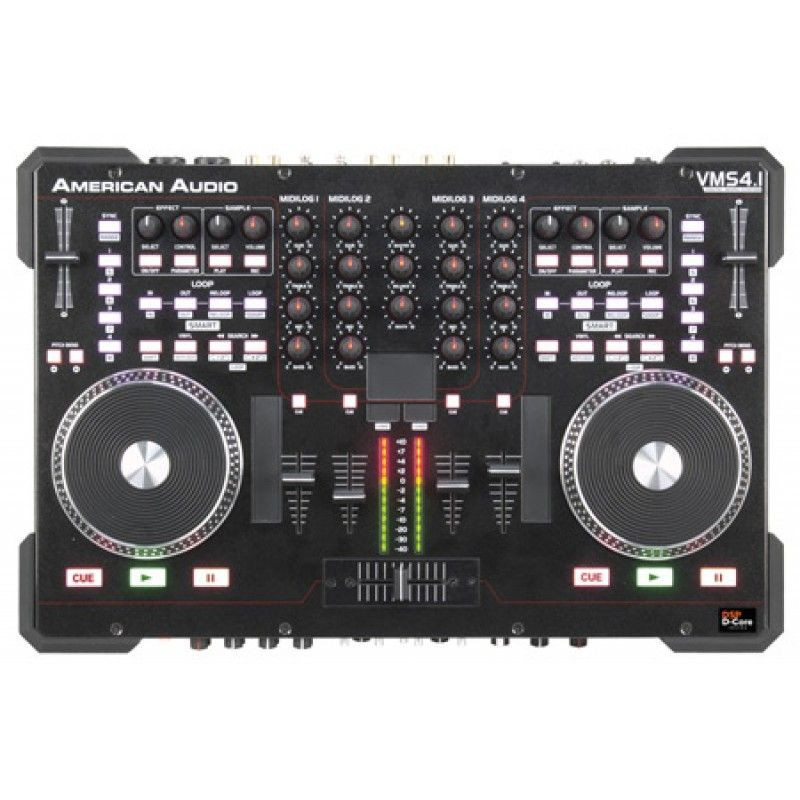

The VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 tracks from their laptop, plus have the option to add CD Players and turntables to the mix.
VIDEO
Main Features: • 4x Midilog' Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
• DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
• 2x Mics with Gain, Treble, Mid & Bass Control
• Crossfader Curve Adjustment
• Balanced XLR Outputs
• Assignable Touch Strips
• Built-in Mouse Pad
• Built-in 4 In/4 Out Soundcard

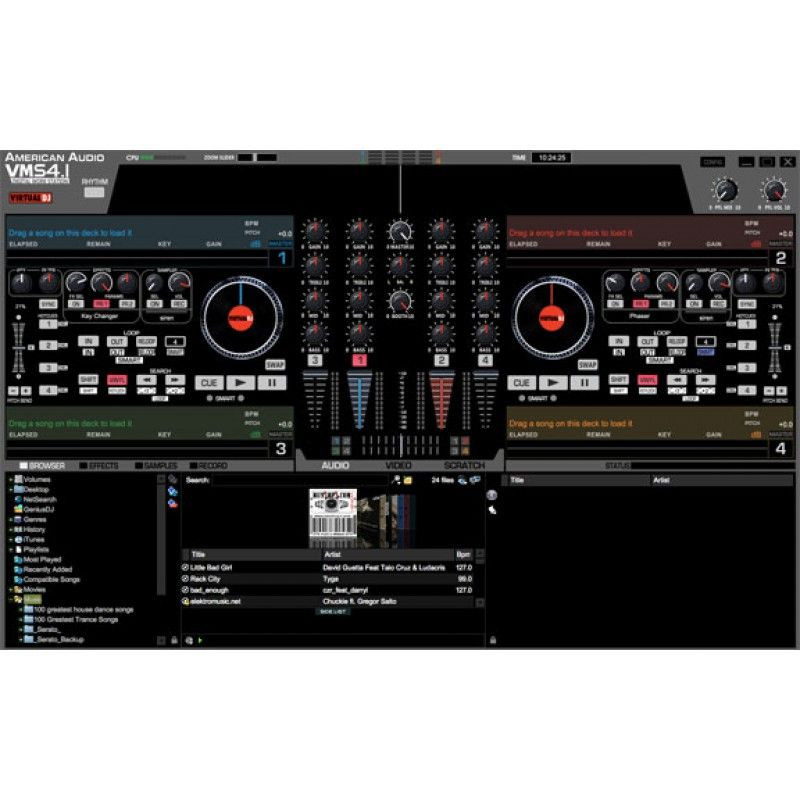

• Bundled with Virtual DJ LE Software
General Features: • Midi Controller with 4 USB / Analog selectable MIDILOG' (Midi & Analog) channels
• All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
• On/Off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOGTM channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOGTM channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter
• Dimensions (LxWxH): 19"x12.75"x1.5" / 482x325x40mm
• Weight: 13 lbs. / 6 kg.
Midi Features: • Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers
Audio Features: • 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency
* For each audio channel, both line and phono mode
PC System Requirements:** • Windows XP Sp2 or Windows Vista (32-bit & 64-bit supported)
• PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
• 1024_768 SVGA Video
• 2 GIG RAM (Vista)
• 40MB Free on the Hard-Drive (Recommended 2000MB)
• DirectX 9.0
Mac System Requirements: • Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
• 1.86GHz
• 2GB RAM
** System Requirements may differ due to manufacturer software
