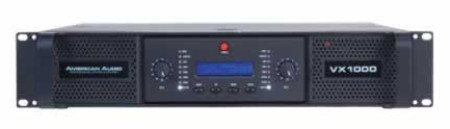

VX-Series, the latest generation of American Audio amplifiers are a professional performance amplifier series with a high protection grade developed and designed for small installations, DJ and Bands.
The multifunctional display allows a full overview on functions and settings - Its easy to navigate and self-explanatory. Special attention was given to every aspect of the VX amplifiers for the highest reliability. With outstanding sound performance, built-in sound dynamic processing circuitry, and a superior clip limiter gives users a wide variety of possibilities. With a solid case design with 3mm steel, and back ears to be mounted in a rack, the VX Series enables the day-by-day use on the road as well as fixed installations in racks. VX Series added value features:* Bright LCD Display: Shows temperature, Working Mode & Protection Mode* CPS - Comprehensive Protection System: Auto Shut Down protects amplifier from overheating* Dynamic Sound Circuitry - Improves dynamic range & quality of sound Output Power:* 2 ohms, 1 khz 1% THD 550W RMS per channel* 4 ohms, 1 khz 1% THD 500W RMS per channel* 8 ohms, 1 khz 1% THD 330W RMS per channel (Bridged Mode, mono)* 4 ohms, 1 khz 1% THD 1100W RMS per channel* 8 ohms, 1 khz 1% THD 1000W RMS per channel Total Harmonic Distortion (THD): Less than 0.5% (20Hz-20kHz, @ 8 Ohms) Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 4 Ohms) Dimensions:* Height : 3.5" (88mm)* Width: 19" (483mm)* Depth: 16.5" (429mm) Weight: 40 lbs. (18.5 kg) Frequency Response: 3dB, 1W RMS 8 ohms (20Hz - 20kHz) Signal to Noise Ratio: Less than 95 dB , unweighted (@ 8 ohms full power) Slew Rate: 15v/usec Damping Factor: 300 (@ 8 Ohms) Protection Circuit: DC output protection, Overload protection, High Temp protection, Short circuit protection, Current Inrush protection, Soft start-up protection Power Consumption: 5A @ 120V AC (@ 8 Ohms) Fan: 2-speed fan Modes: Stereo, Parallel or Bridge Mono
