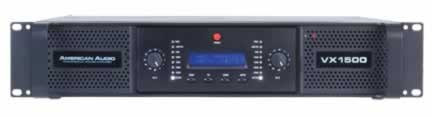

VX-Series, the latest generation of American Audio amplifiers are a professional performance amplifier series with a high protection grade developed and designed for small installations, DJ and Bands.
The multifunctional display allows a full overview on functions and settings - Its easy to navigate and self explanatory. Special attention was given to every aspect of the VX amplifiers for the highest reliability. With outstanding sound performance, built-in sound dynamic processing circuitry, and a superior clip limiter gives users a wide variety of possibilities. With a solid case design with 3mm steel, and back ears to be mounted in a rack, the VX Series enables the day-by-day use on the road as well as fixed installations in racks.
VX Series Added Value Features: Bright LCD Display: Shows temperature, Working Mode & Protection Mode CPS - Comprehensive Protection System: Auto Shut Down protects amplifier from overheating Dynamic Sound Circuitry - Improves dynamic range & quality of soundOutput Power:* 2 ohms, 1 khz 1% THD 750W RMS per channel* 4 ohms, 1 khz 1% THD 700W RMS per channel* 8 ohms, 1 khz 1% THD 450W RMS per channel (Bridged Mode, mono)* 4 ohms, 1 khz 1% THD 1500W RMS per channel* 8 ohms, 1 khz 1% THD 1400W RMS per channel Total Harmonic Distortion (THD): Less than 0.5% 20Hz-20kHz, @ 8 Ohms) Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 4 Ohms) Dimensions & Weight: * Height: 3.5" (88mm)* Width: 19" (483mm)* Depth: 16.5" (429mm) * Weight: 45 lbs. (18.5 kg) Frequency Response:* 3dB, 1W RMS 8 ohms (20Hz - 20kHz) Signal to Noise Ratio: Less than 95 dB, unweighted (@ 8 ohms full power) Slew Rate: 15v/usec Damping Factor: 300 (@ 8 Ohms) Protection Circuit:DC output protection, Overload protection, high Temp protection, Short circuit protection, Current Inrush protection, Soft start-up protection Power Consumption: 5A @ 120V AC (@ 8 Ohms) Fan: 2-speed fan Modes: Stereo, Parallel or Bridge Mono
