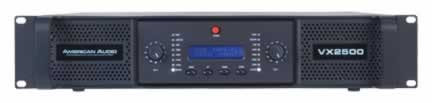

VX-Series, the latest generation of American Audio amplifiers are a professional performance amplifier series with a high protection grade developed and designed for small installations, DJ and Bands.
The multifunctional display allows a full overview on functions and settings - Its easy to navigate and self explanatory. Special attention was given to every aspect of the VX amplifiers for the highest reliability. With outstanding sound performance, built-in sound dynamic processing circuitry, and a superior clip limiter gives users a wide variety of possibilities. With a solid case design with 3mm steel, and back ears to be mounted in a rack, the VX Series enables the day-by-day use on the road as well as fixed installations in racks.
VX Series added value features: Bright LCD Display: Shows temperature, Working Mode & Protection Mode CPS - Comprehensive Protection System: Auto Shut Down protects amplifier from overheating Dynamic Sound Circuitry - Improves dynamic range & quality of sound Output Power: * 2 ohms, 1 khz 1% THD 1400W RMS per channel * 4 ohms, 1 khz 1% THD 1200W RMS per channel* 8 ohms, 1 khz 1% THD 750W RMS per channel (Bridged Mode, mono)* 4 ohms, 1 khz 1% THD 2800W RMS per channel* 8 ohms, 1 khz 1% THD 2400W RMS per channel Total Harmonic Distortion (THD): Less than 0.5% (20Hz-20kHz, @ 8 Ohms) Input Sensitivity & Impedance: 1.0v rms (0 dBv) (@ 4 Ohms) Dimensions & Weight:* Height : 3.5" (88mm)* Width: 19" (483mm)* Depth: 19.5" (495mm) * Weight: 52 lbs. (23.5 kg) Frequency Response: 3dB, 1W RMS 8 ohms (20Hz - 20kHz) Signal to Noise Ratio: Less than 95 dB , unweighted (@ 8 ohms full power) Slew Rate: * 15v/usec Damping Factor: * 500 (@ 8 Ohms) Protection Circuit: * DC output protection, Overload protection, High Temp protection, Short circuit protection, Current Inrush protection, Soft start-up protection Power Consumption: * 5A @ 120V AC (@ 8 Ohms) Fan: * 2-speed fan Modes: * Stereo, Parallel or Bridge Mono
