ADJ XDM-343 Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

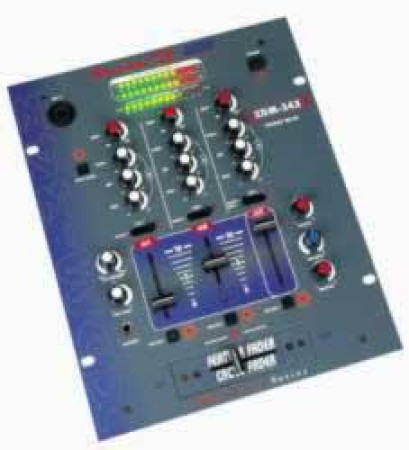

american audio xdm-343
Images may show accessories or configurations not packaged with this item.
The XDM series proudly boasts the 343. Three channels, and feather crossfader make this mixer a must for the serious DJ!

• Bass/mid/treble controls for each channel.
• Separate gain control for each channel.
• High quality Alps Feather Fader for smooth crossfading (replaceable - made in Japan).
• Master level LEDs with peak hold.
• Left and right Pre Fader Level (PFL) LEDs.
• Balance control with center detent.
• Master plus booth/zone volume controls.
• Cue mixing / cue level controls.
• Accurate beat LEDs for easy crossfade.
• DJ mic with Neutrik connection - 1/4 inch (6.3mm)/XLR.
• Talkover switch for DJ mic.
• Bass/mid/treble and gain controls on all 3 mics.
• High level headphone output.
• Line Output: 20V peak to peak, (+20dB).
• S/N Ratio: >85dB.
• Frequency Range: 20Hz - 20kHz, +/-1dB. Distortion: <0.03 percent.
• Talkover: -15dB.
• Headphone Impedance: 16 Ohms.
• Power Supply: 115V/220V AC, 50/60Hz switchable.
• Crossfader: FF-2.
• Dimensions: 12.5W x 10.25D x 4H.
