ADJ XDM-3633 Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

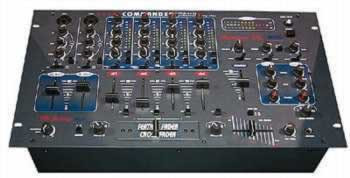

american audio xdm-3633
Images may show accessories or configurations not packaged with this item.
The Ultimate DJ & Club Mixer! Command your performance with the XDM-3633 "Commander."

• Balanced outputs.
• High quality Feather Fader for smooth, clean crossfades (replaceable/made in Japan).
• Bass, mid and treble for each channel.
• 2 independent microphones with separate bass, mid and treble with Neutrik connection - 1/4 inch (6.3mm)/XLR.
• 2 zones with bass and treble.
• Zone 2 is assignable to any of the 4 channels.
• High level headphone output.
• Cue mixing.
• Split cue for headphones.
• Low cut bass switch - 30dB cut feature for bass, mid and treble.
• Auto mute.
• Talk over level control.
• Send and receive for every channel including independent mics - all selectable at the same time.
• Left and right turntable ground connectors conveniently located at each end of the rear panel.
• Master level LED display w/ peak hold.
• Pre Fader Levels (PFL) for each channel.
• Accurate beat LED's for easy crossfades.
• On/off switch for channel assign.
• LED display for each channel.
• Gain control for each channel.
• Independent light control output for touch panels and chase controllers - 1/4 inch connection.
• Soft-touch rubber knobs for better control.
• 12V DC BNC connector for gooseneck light.
• L shaped rear case design.
• Line Output: 25V peak to peak, (+21.5dB).
• S/N Ratio: Line= >88dB, Mic= >78dB, Phono= >83dB, Channel EQ: -30dB - +20dB for bass, mid and treble.
• Frequency Range: 20Hz - 20kHz, +/-1dB.
• Distortion: <0.03 percent.
• Talkover: -15dB.
• Headphone Impedance: 16 Ohms.
• Power: 110V/220V switchable.
• Crossfader: FF-2.
• Dimensions: 19 W x 10.5 D x 3.5 H inches.

Additional Information

ManufacturerAmerican Audio
Product ConditionNew - On Clearance
