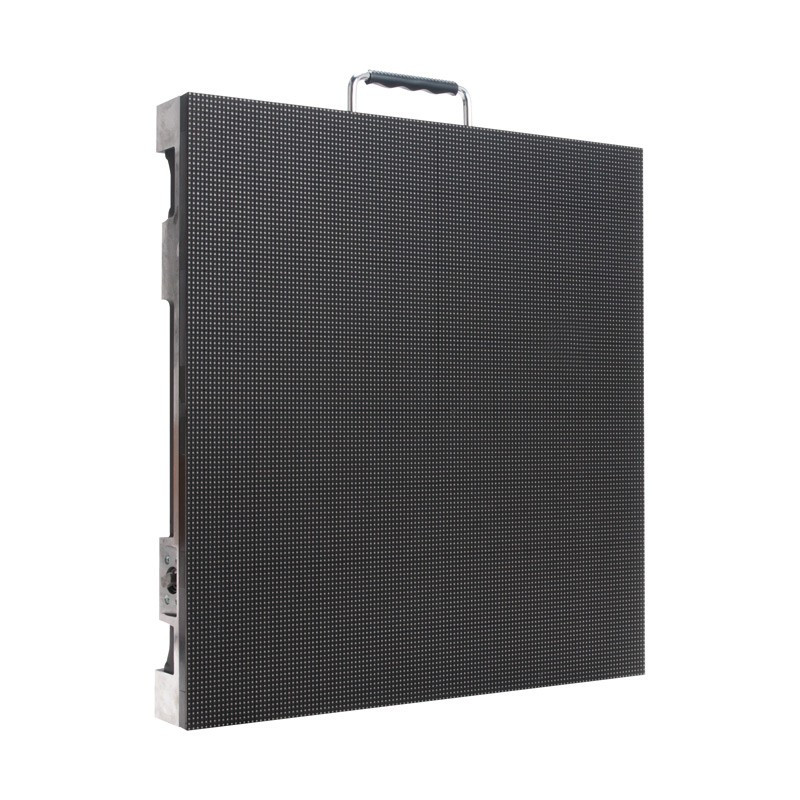

The AV3 is a high resolution video panel from ADJ. Each panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. The brightness is 1000NITS. There are 4 mini modular panels with-in the master panel. This allows for easy serviceability. The AV3 connections include powerCon In/Out and Ethercon In/Out. This panel also features a Novastar receiving card.
VIDEO
ADJ offers full packages with video processors, software, cabling, rigging bars and flight cases so that you have everything you need to get up and running.
ADJ AV3 SPECIFICATIONS: • Pixel Pitch: 3.91mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 128x128; 65536 per square meter
• Size :19.75" x 19.75" x 4" / 500 x 500 x 100mm
• Module Quantity: 4
• Weight: 20 lbs. / 9kg.
MECHANICAL RATINGS: • Surface Flatness: Gaps<0.5mm
OPITCAL RATINGS: • Brightness: 1000 NITS
• View Angle: Horizontal 120/Vertical 120 @ 13 ft. (4m)
• Gray Scale / Display Color: 14-bit
• Brightness Adjustment: 0100% 100 Levels
• Processing: 14-bit
POWER SUPPLY: • Operation Power: 100240V 50-60Hz
• Max. Power Consumption: 170W/per panel
• Ave. Power Consumption: 70W/per panel
• Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
CONTROL SYSTEM: • Control Mode: Nova Star Synchronous System with Control via DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/16
• Refresh Rate: 1920Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL: • Operating Temp / Humidity: Fahrenheit: -4 + 104 / Celsius: -20 + 40/ 10-90% (No Condensation)
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Protection Level: IP20 (Front and Back)
• Out of Control Rate: <0.02%
• Listings: ETL, CE, FCC Class A
