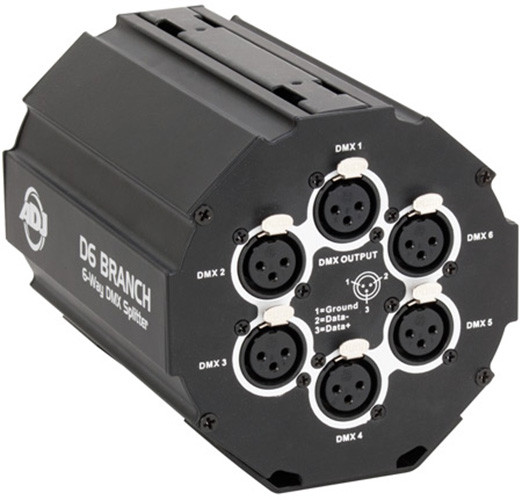

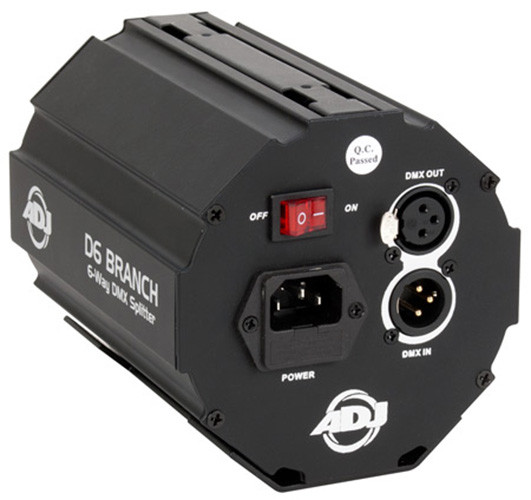

The D6 Branch is a 6-way DMX Splitter/amplifier. Each output is electrically and optically isolated from the input, and from every other output by optical couplers. It makes running DMX cable to lighting fixtures easier and more efficient. It features one DMX Input, 6 DMX Outputs and 1 DMX Thru. The D6 Branch also includes two Velcro straps and a clamp-mounting bracket.
• 6-Way DMX Splitter & amplifier
• 1x DMX In, 6x DMX Out & 1 DMX Thru (all 3-pin XLR's)
• Link with other D6 Branch Splitters
• Input & outputs are electrically and optically isolated from each other

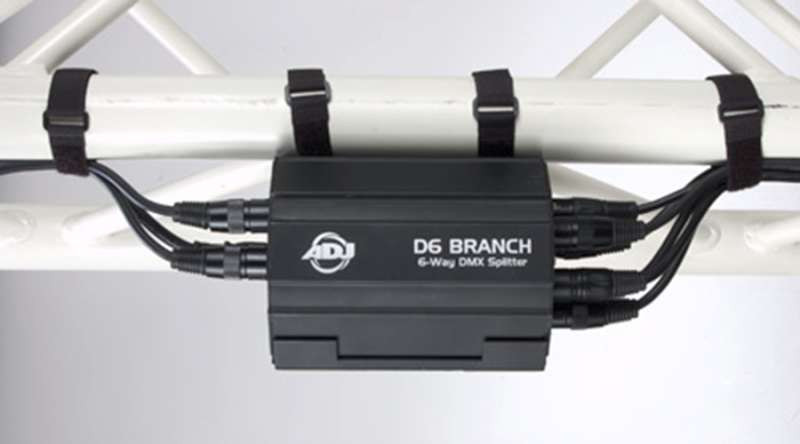

• Includes 2x Velcro straps to securely attach to truss
• Clamp mount bracket included
• On/Off power switch
• Multi-voltage operation: AC 100-240V, 50/60Hz (IEC Socket)
• Dimensions (LxWxH): 4.75"x5"x6" / 118.5x122.5x153mm
• Weight: 2.5 lbs/ 1 kg.
