ADJ DMX16SWSYS 16 Channel on/off DMX Control System (Open Box)

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american dj dmx16swsys*openbox

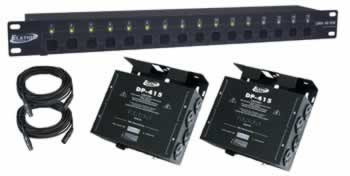

DMX-16 SYS Components:(1) DMX-16SW (2) DP-415 (1) 25ft. DMX cable (1) 10ft. DMX cable

DMX-16 System Features:
* USITT DMX512 (1990) multiplexed control system
* 16 channel On/Off control system
* (2) DP-415 packs offer 8 output channels to connect fixtures into
* (2) DMX cables to connect from control panel to pack and from pack to pack
* Up to 32 DMX-16SW's can be linked, for On/Off control of 512 DMX channels

DMX-16SW Control Panel Specifications:
• USITT DMX512 (1990) multiplexed control system
• 16 On/Off channel switches with LED indicators
• 3-pin XLR, DMX Input and Output to link additional DMX-16SW's and to link to packs
• 10 position dip switch on rear of DMX-16SW for setting DMX address
• On/Off power switch on rear of DMX-16SW control panel
• Power failure memory
• DMX-16SW Power Requirement: 9VDC, 200mA Min. (Power supply included)
• DMX-16SW Dimensions: 19" x 3.25" x 1.75" (482 x 82 x 44mm)
• DMX-16SW Weight: 5.1lbs. (2.3kg)

DP-415 Specifications:
• Compact 4-channel DMX Dimmer/Switch Pack
• Dual 15 Amp Edison sockets per channel
• 10-position dip switch for setting DMX address
• Reversible hanging bracket allows for more flexible rigging options
• On/Off power switch with LED indicator
• 4-channel intensity LED indicators
• Load Capacity: 5 Amps per channel, 15 Amps maximum ON at a time
• Power Requirement: 120VAC 60Hz, 15A max.
• Dimensions: 7.1" x 7" x 2.52" (180 x 177 x 64mm)
• Weight: 3.1lbs. (1.4kg) DP-415

Additional Information

Product ConditionOpen Box
