ADJ DOTZ BAR 1.4

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

adj dotzbar1.4
adj dotzbar1.4 ADJ DOTZ BAR 1.4 ADJ DOTZ BAR 1.4 ADJ DOTZ BAR 1.4 ADJ DOTZ BAR 1.4 ADJ DOTZ BAR 1.4
Images may show accessories or configurations not packaged with this item.

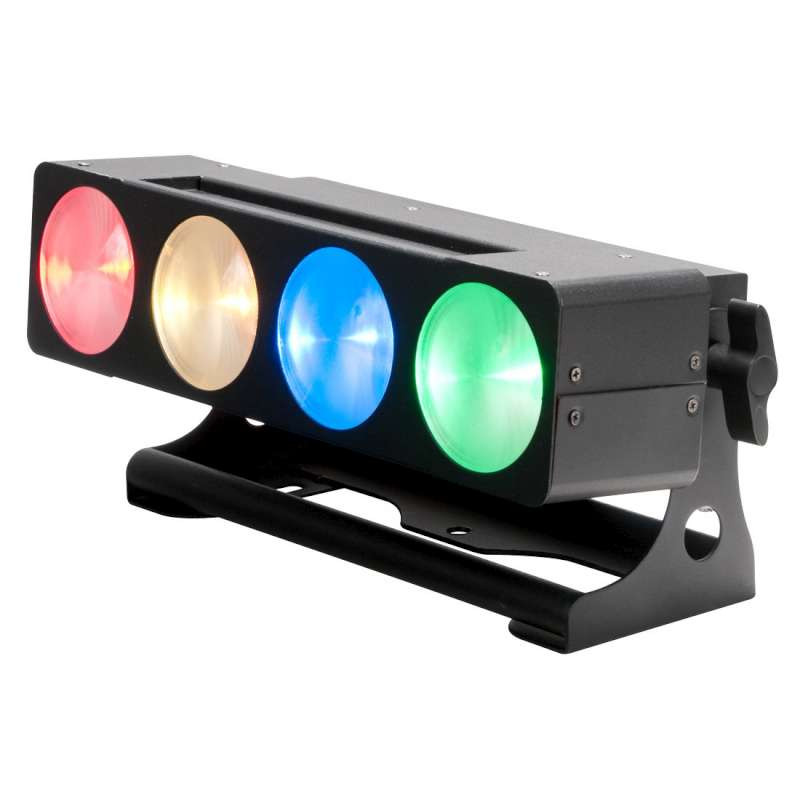

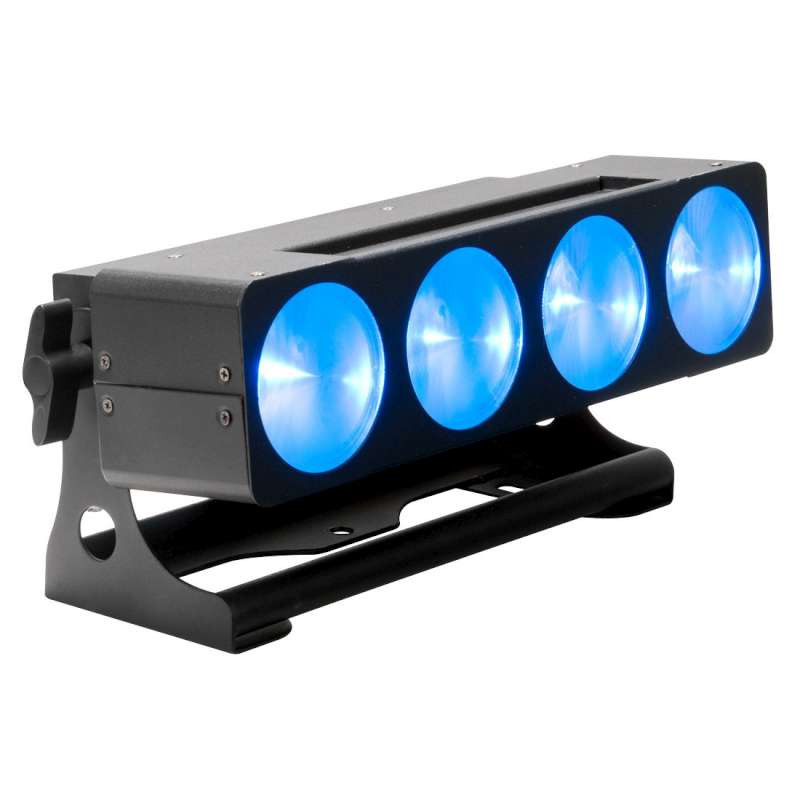

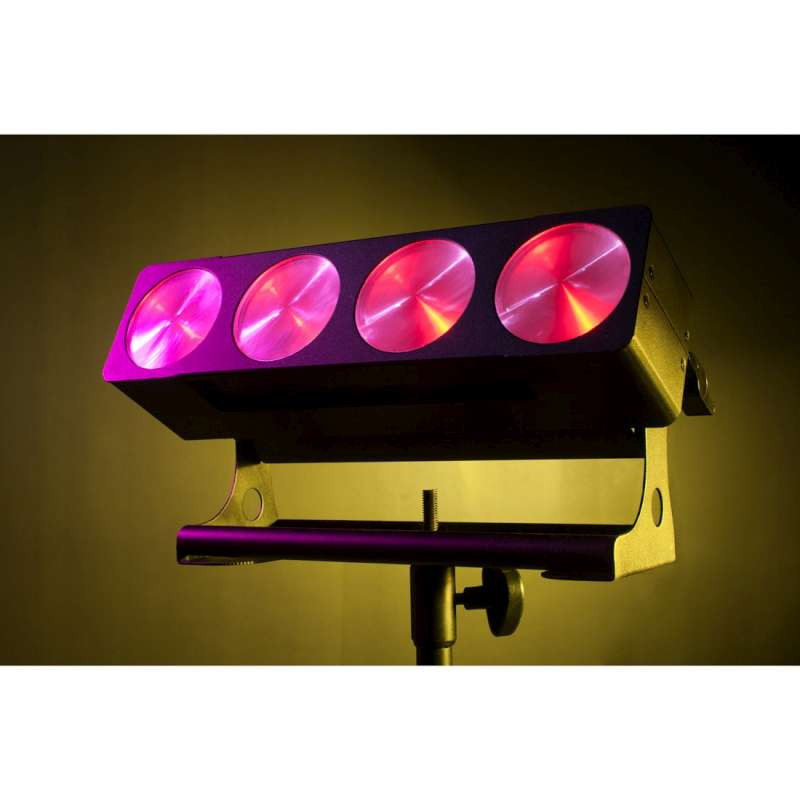

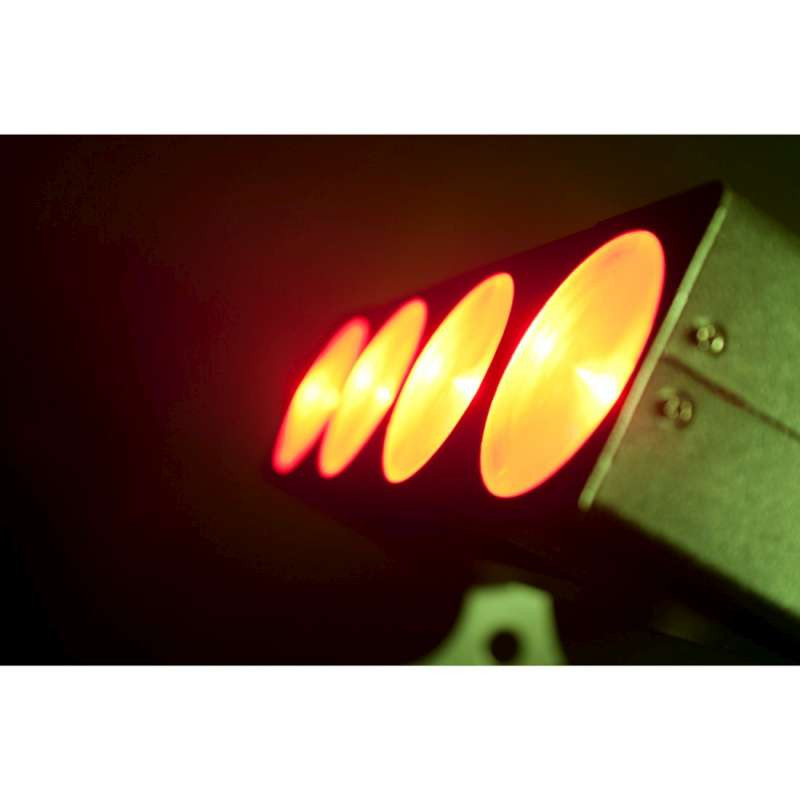

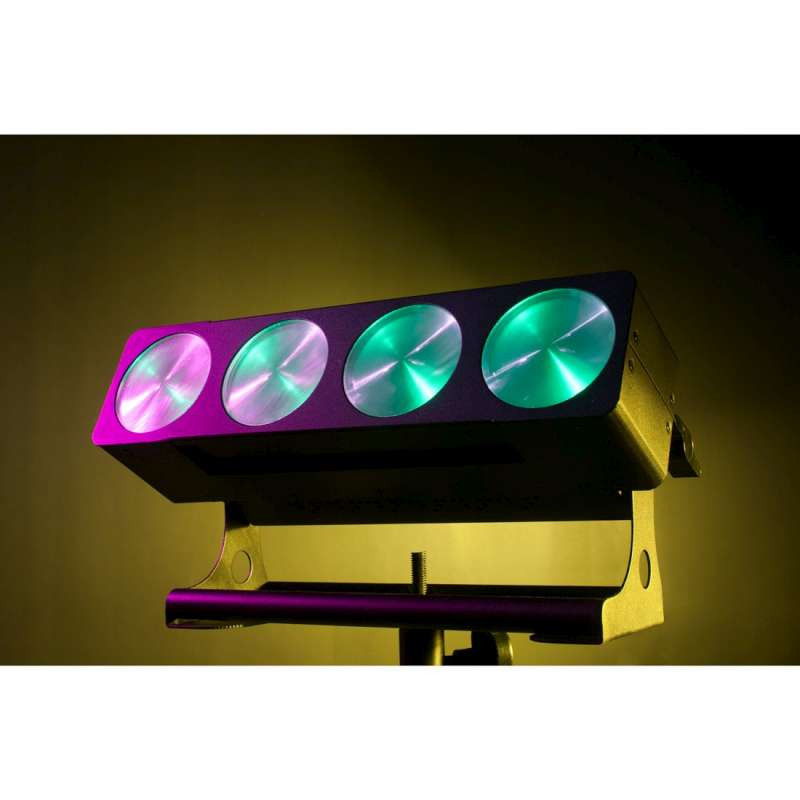

ADJ's Dotz BAR 1.4 is the perfect size Wash/Blinder fixture for DJ,BAND small stage with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing fixture powered by 4 x TRI COB LEDs. Suitable for staging and nightclub lighting because it produces wide covers at a short distance and has no RGB color shadows.

The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, and a 4-button LCD DMX display. Dotz Flood may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.



Specifications
- 1 x 4 COB TRI LED high output linear wash bar
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/Bar or Pixel Mapped for a stunning visual effect
- Great for Stage Lighting, Bands or Night Clubs
- 4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
- 5 DMX channel modes: 3, 6, 8, 12 & 17 channel
- Individual Pixel controllable in 12 or 17 channel DMX mode
- Pixel Flip options changes pixel orientation
- RDM Compliant (Remote Device Management)
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- 25-degree beam angle

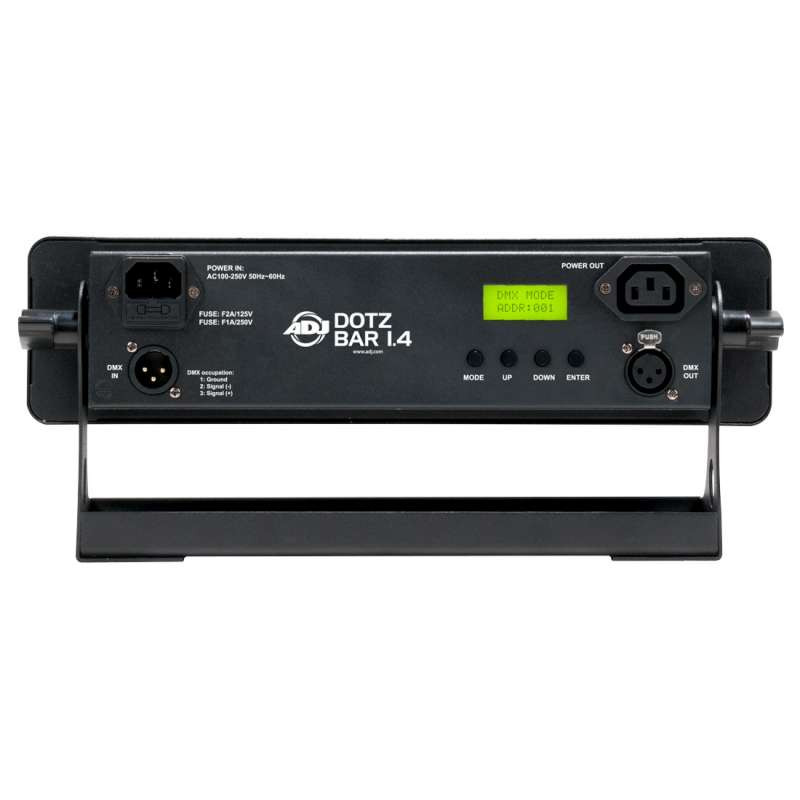

- 3 -pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 10 Dotz Bar 1.4's @ 120V and 22 Dotz Bar 1.4's @ 230V)
- Power Draw: 48W total (All LED's @ Full)
- 4-button DMX LCD display
- Single yoke allows fixture to be mounted
- Light Source: 4x 9-Watt COB TRI LEDs (RGB: 3 in 1)
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH): 340 x 140 x 140mm
- Weight: 2.8 kg

Additional Information

UPC819730011015
SKUDOTZBAR1.4
ManufacturerADJ
Price$199.99
Product ConditionNew - On Clearance
