ADJ DOTZ BRICK 3.3

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american dj dotzbrick3.3
american dj dotzbrick3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3 ADJ DOTZ BRICK 3.3
Images may show accessories or configurations not packaged with this item.

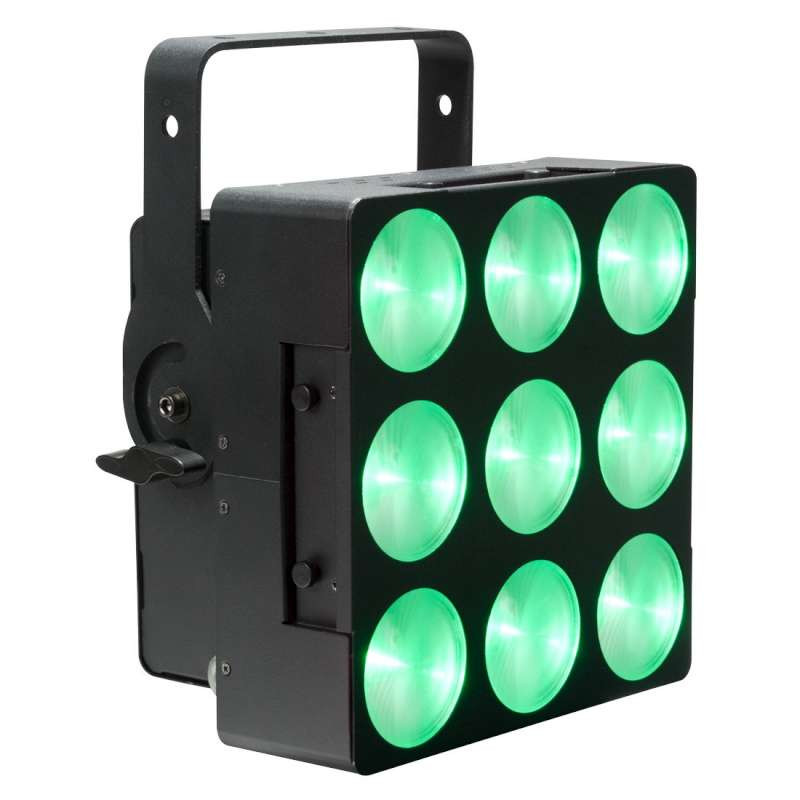

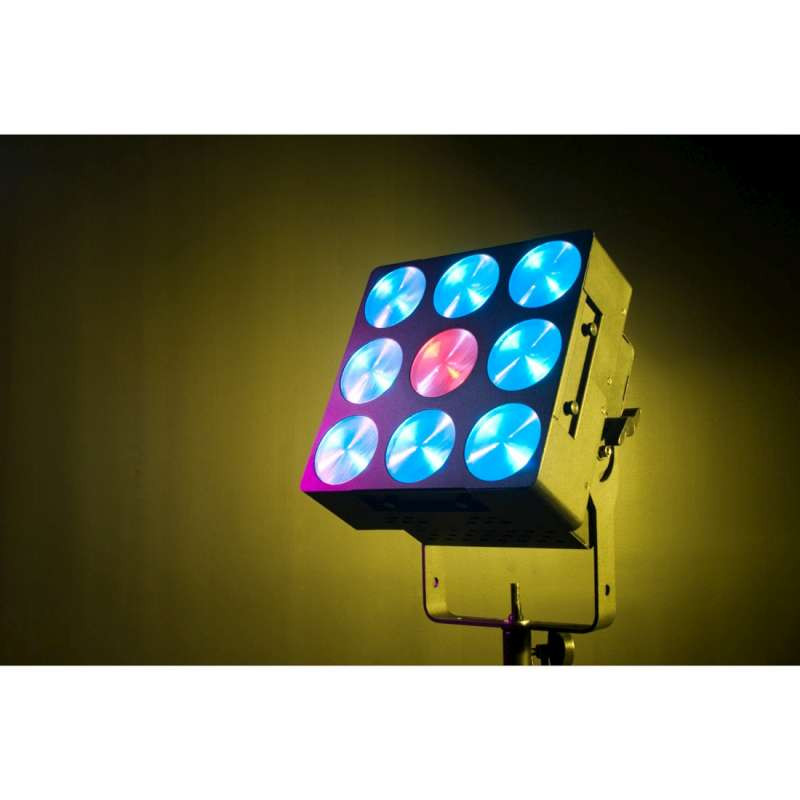

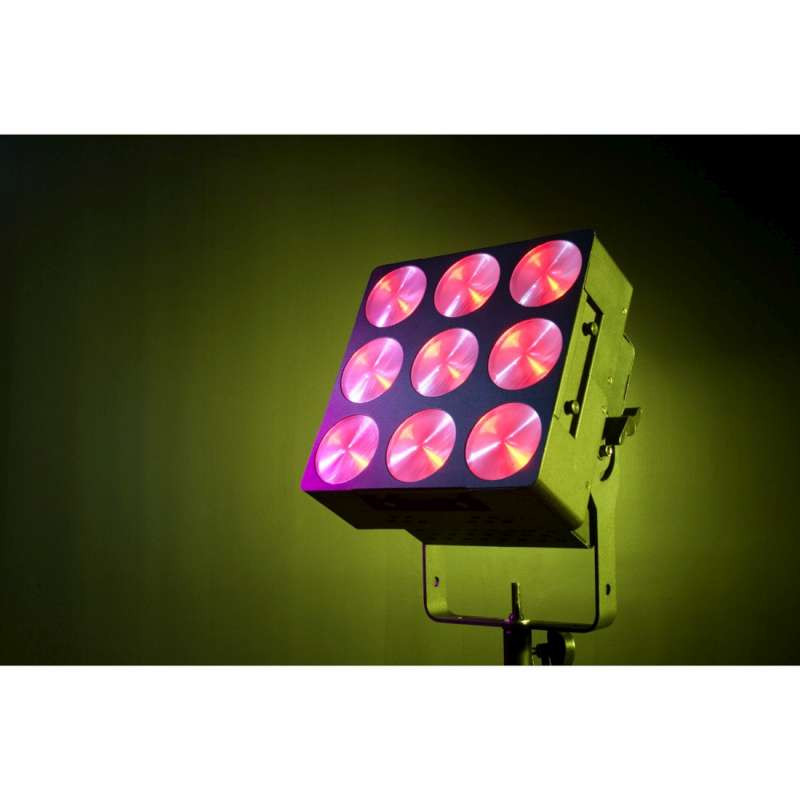

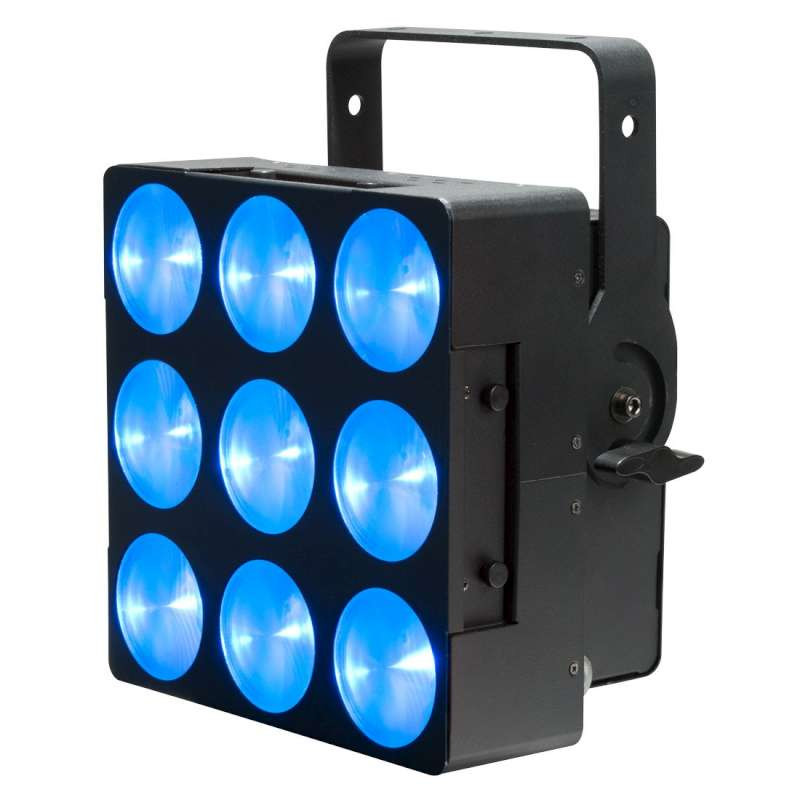

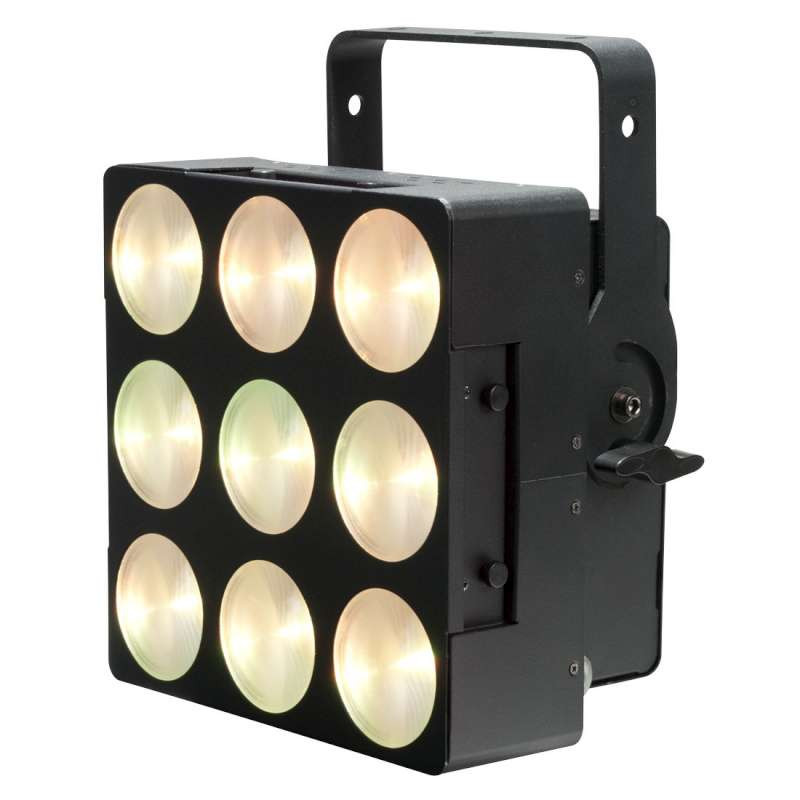

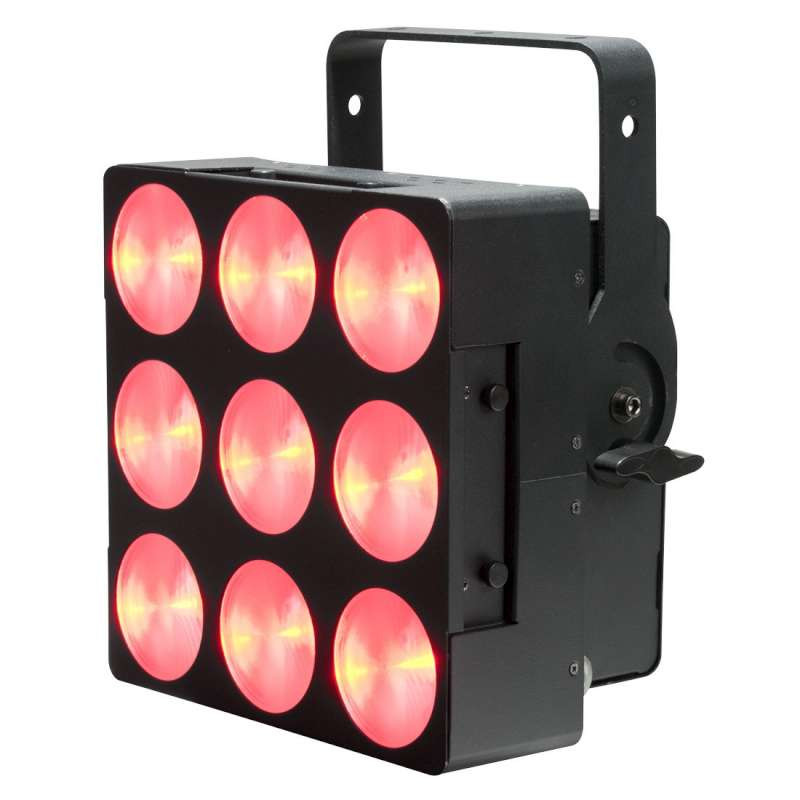

The American DJ Dotz Brick 3.3 is a high output, smooth color mixing fixture powered by 9 x TRI COB LEDs. Suitable for staging and nightclub lighting because it produces wide covers at a short distance and has no RGB color shadows.

The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, and a 4-button LCD DMX display. Dotz BRICK 3.3 may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.



Specifications
- 3 x 3 COB TRI LED high output Wash/Blinder Matrix panel
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/Matrix or Pixel Mapped for a stunning visual effect
- Great for Stage Lighting, Bands or Night Clubs
- 4x Operational modes: Auto Run, Sound Active, Built-In Programs, and DMX Controlled Mode
- 5 DMX channel modes: 3, 6, 8, 27 or 32 channel
- Individual Pixel controllable in 27 or 32 channel DMX mode
- Pixel Flip options changes pixel orientation
- RDM Compliant (Remote Device Management)
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- 25-degree beam angle
- 3-pin XLR chassis mount connectors for DMX linking
- IEC AC IN/OUT to daisy chain power (up to 7 Dotz Brick 3.3's @ 120V and 14 Dotz Brick 3.3's @ 230V)
- Power Draw: 116W total (All LED's @ Full)

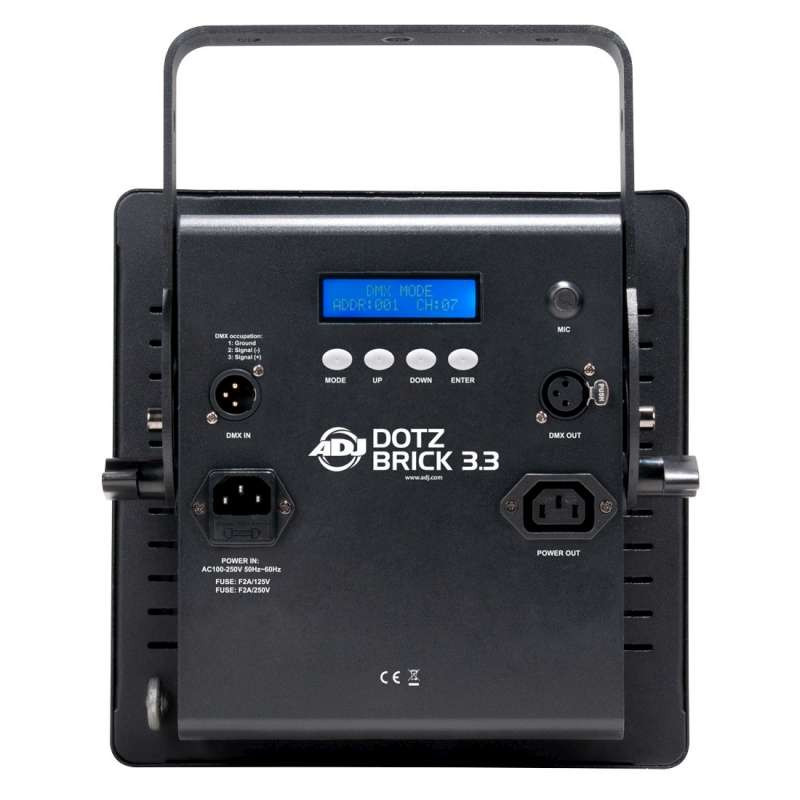

- 4-button DMX LCD display
- Single yoke allows fixture to be mounted
- Fan Cooled
- Light Source: 3 x 3 9-Watt COB TRI LEDs (RGB: 3 in 1)
- Lux @ 3M: 471 Lux
- Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
- Dimensions (LxWxH): 10.25" X 6.75" X 12"
- Weight: 11 lbs.

Additional Information

UPC

N/A

SKU

DOTZBRICK3.3

Manufacturer

ADJ

Price

$419.99

Product Condition

New - On Clearance
