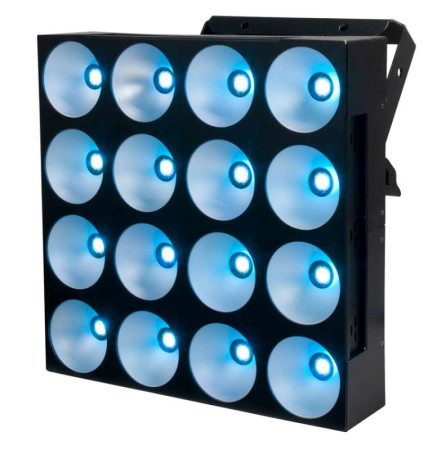

ADJ DOTZ MATRIX 4x4 Flood, Wash, Chase Fixture

adj dotzmatrix
adj dotzmatrix ADJ DOTZ MATRIX 4x4 Flood, Wash, Chase Fixture ADJ DOTZ MATRIX 4x4 Flood, Wash, Chase Fixture ADJ DOTZ MATRIX 4x4 Flood, Wash, Chase Fixture ADJ DOTZ MATRIX 4x4 Flood, Wash, Chase Fixture
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Dropships Currently Out of Stock at Planet DJ
In Stock May Be Available on Amazon
In Stock Free Shipping On Most Orders Over $35
Buy on Amazon
ADJ's Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 430 Watts with a massive 60 degree beam angle.



The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.

Specifications
• 4 x 4 COB LED high output Wash/Blinder Matrix panel
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
• Great for Stage Lighting, Bands or Night Clubs
• 5 DMX channel modes: 3, 6, 7, 48 & 52 channel
• Individual Pixel controllable in 48 & 52 channel DMX modes
• 4x Pixel Flip options changes pixel orientation
• 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
• RDM Compliant (Remote Device Management)
• Built-In preset colors and programs
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• 60-degree beam angle
• 3 & 5-pin XLR chassis mount connectors for DMX linking
• PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
• Power Draw: 430W total (All LED's @ Full)
• 4-button DMX LCD display
• Single yoke allows fixture to be mounted
• Fan Cooled
• Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 13.75" x 6.75" x 14.75"/ 345 x 170 x 370mm
• Weight: 18 lbs. / 7.8 kgs.

Additional Information

UPCN/A
SKUDOTZMATRIX
ManufacturerADJ
Price$899.99
Product ConditionNew
