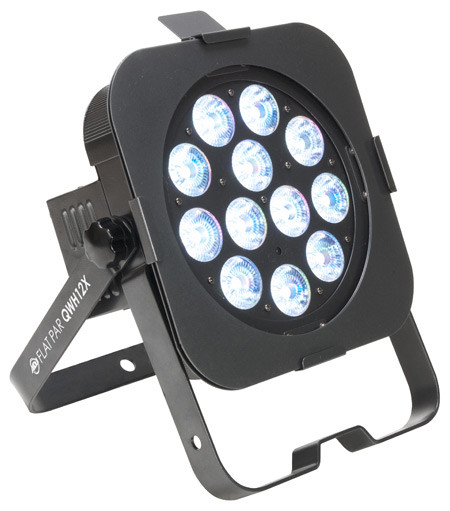

ADJ FLAT PAR QWH12X Ultra Bright Low Profile DMX LED Par

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

american dj flatparqwh12x
american dj flatparqwh12x ADJ FLAT PAR QWH12X Ultra Bright Low Profile DMX LED Par ADJ FLAT PAR QWH12X Ultra Bright Low Profile DMX LED Par ADJ FLAT PAR QWH12X Ultra Bright Low Profile DMX LED Par
New sideways power & DMX inputs/outputs.Ultra bright low profile DMX LED par. 12 x 5 watt RGBW LED source. 25 degree beam angle.

Take your color mixing to the next level with the American DJ Flat Par QWH12X professional "low profile" LED fixture. It features twelve 5-Watt QUAD LEDs (4-in-1 RGBW) with smooth RGB color mixing as well as a White LED to get the hard to achieve true cool white.

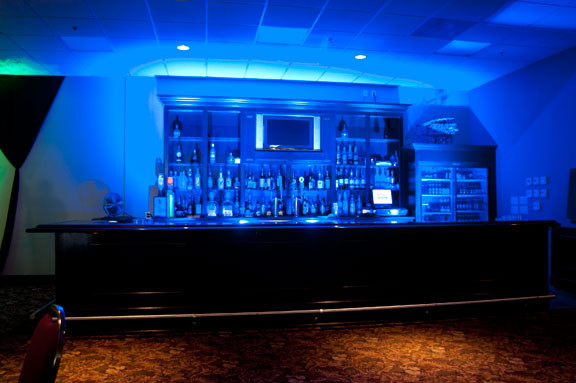

The units "low profile," sideways power & DMX Ins/Outs and dual hanging brackets make it ideal for mobile entertainers, permanent installations and for inserting into truss or for uplighting.


The Flat Par QWH12X has 8 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go "wireless" with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 44 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QWH12X LEDs are rated at 50,000 hours, and only draws 80-Watts of power per fixture.


Specifications:
• Ultra bright slim fixture with 12x 5-Watt QUAD LEDs (4-in-1 RGBW- Red, Green, Blue & White)

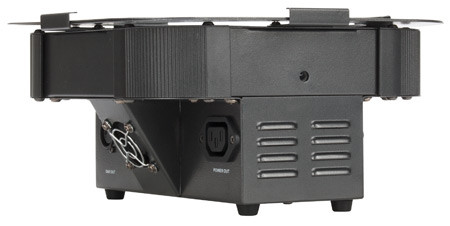

• Unique "sit flat" design - Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss
• Great for performance stages where traditional par cans emit a lot of heat onto performers
• Low profile case design
• Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)
• 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
• 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
• Smooth RGBW color mixing (fast or slow color change operation)
• QUAD LED (4-in-1) projects no RGB shadows
• 44 built-in Color Macros
• Color strobe effect
• Flicker Free
• Electronic Dimming: 0 - 100%
• Beam angle: 40-degree
• Linkable via 3-pin XLR cable (In/Out)
• 4-button LED DMX display on rear panel

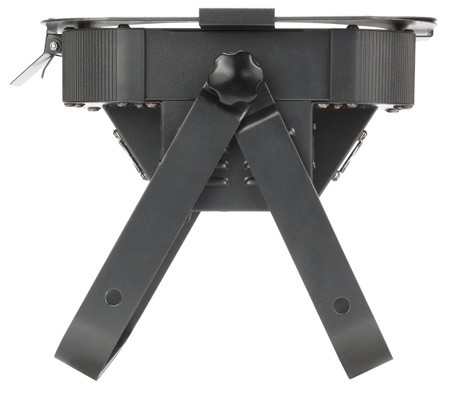

• Dual bracket yoke allows fixture to be hung or set on the ground
• IEC AC IN/OUT outlets on rear to daisy chain power (up to 7 units)
• Includes gel frame for optional diffusion filters
• Run all night - No duty cycle
• Long Life LEDs (50,000 hrs.)
• Power Draw: 80W max
• Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
• Dimensions (LxWxH): 13"x11"x4.5" / 328x280x115mm
• Weight: 7 lbs. / 3.2 kg.
• ETL approved

Additional Information

UPCN/A
SKUFLATPARQWH12X
ManufacturerADJ
Product ConditionNew - On Clearance
ReturnableNo
