ADJ FREQ 16 16-Zone LED Chasing DMX Strobe

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

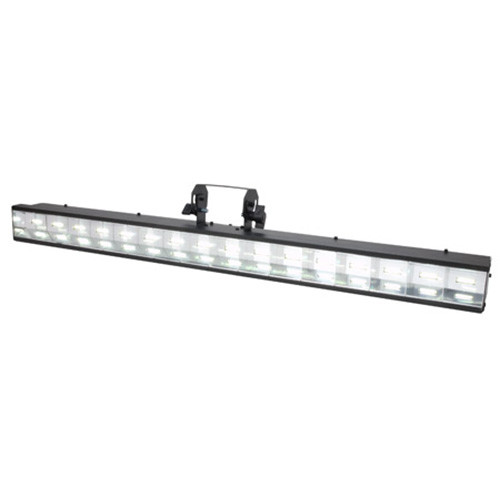

american dj freq16
Add more creativity to your lightshow with the American DJ FREQ 16 revolutionary 16-Zone LED Strobe. This 2-FX-IN-1fixture features a traditional LED strobe + 16-Zone chase effect. The Zone chase effect gives lighting designers the ability to display this strobe bar vertical or horizontal creating chasing white light for a dynamic energy-driven light show.

The FREQ 16 offers full DMX control with 4 DMX channel modes, dimming, strobe speed and chase speed. Users can also run the FREQ 16 in sound active mode, or manually control strobe speed and dimming on the back of the unit from it's potentiometer knobs. The FREQ 16 uses sixteen 5-Watt bright white LEDs and consumes a maximum of 91-Watts of power.



• Revolutionary 16-Zone LED Chasing Strobe
• 2-FX-IN-1: Traditional LED Strobe + 16-Zone chase effect
• 16x 5-Watt White bright LEDs (30,000 hr. rated)
• 4-Button DMX LED Display
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• 4 DMX Channel modes (1, 2, 16 or 18 Ch.)
• Strobe speed: control via DMX or knob on rear of unit
• 0-100% dimming: control via DMX or knob on rear of unit
• Includes exciting sound activate built-in programs
• LED Strobe effect
• Strobe 1200 times per minute.
• No Moving Parts
• Fan cooled
• Extremely Long Life (30,000 hr. rated)
• Runs extremely cool! - NO Duty Cycles! - Run all night!
• Includes hanging bracket
• Safety hook on rear panel
• Very low power consumption - connect more units in a single circuit
• IEC AC IN/OUT on rear to daisy chain power (up to 3 units)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Power Consumption: 91W maximum
• Multi-voltage operation: AC 100-240V 50/60Hz- IEC socket
• Dimensions (LxWxH): 35"x 5.75"x 4.5" / 887x141x110mm
• Weight: 8 lbs. / 3.6 kg.
• ETL approved

Additional Information

UPC640282002868
SKUFREQ16
ManufacturerADJ
Product ConditionNew - On Clearance
ReturnableNo
