ADJ FREQ MATRIX Strobe/Blinder Effect

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american dj freqmatrix
american dj freqmatrix ADJ FREQ MATRIX Strobe/Blinder Effect ADJ FREQ MATRIX Strobe/Blinder Effect

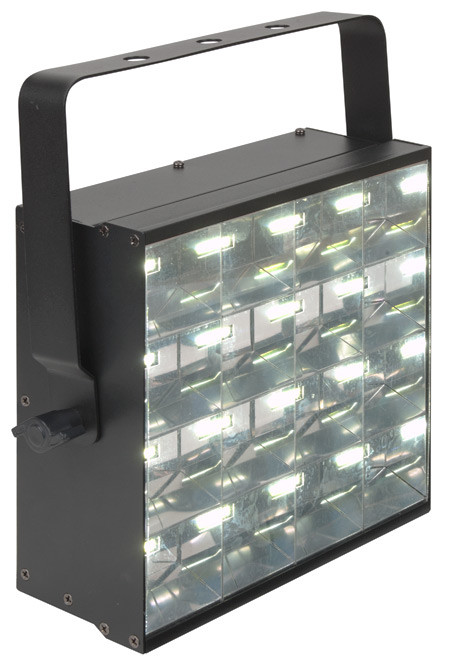

Add more creativity to your lightshow with ADJ's FREQ MATRIX revolutionary 16-Zone LED Strobe matrix. This 2-FX-IN-1fixture features a traditional LED strobe + 16-Zone matrix chase effect. The matrix zone chase effect gives lighting designers the ability to create exciting and dynamic energy-driven lighting shows.

The FREQ MATRIX offers full DMX control with 4 DMX channel modes, dimming, strobe speed and chase speed. Users can also run the FREQ MATRIX in sound active mode, or manually control strobe speed and dimming on the back of the unit from it's potentiometer knobs.

The FREQ MATRIX uses sixteen 5-Watt bright white LEDs and consumes a maximum of 107-watts of power.

• 2-FX-IN-1: Traditional LED Strobe/Blinder + 16-Zone chase effect
• 16x 5-Watt White bright LEDs (30,000 hr. rated)
• 4-Button DMX LED Display
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• 4 DMX Channel modes (1, 2, 16 or 18 Ch.)
• Strobe speed: control via DMX or potentiometer knob on rear of unit
• 0-100% dimming: control via DMX or potentiometer knob on rear of unit
• Includes exciting sound activate built-in matrix programs
• LED pulse & strobe effect
• Strobe up to1200 times per minute
• Fan Cooled
• Extremely Long Life (30,000 hr. rated)
• Runs extremely cool! - NO Duty Cycles! - Run all night!
• Includes hanging bracket
• Safety hook on rear panel
• Very low power consumption - connect more units in a single circuit

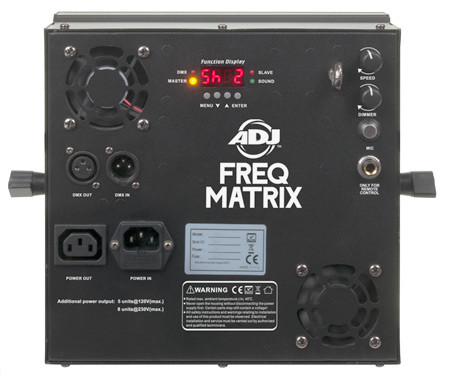

• IEC AC IN/OUT on rear to daisy chain power (up to 3 Freq Matrix's @ 120V and 6 Freq Matrix's @ 230V )
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Power Consumption: 107W maximum
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Dimensions (LxWxH): 11.75" x 11.5" x 4.75"/ 295 x 291 x 115mm
• Weight: 8 lbs. / 3.6 kg.
