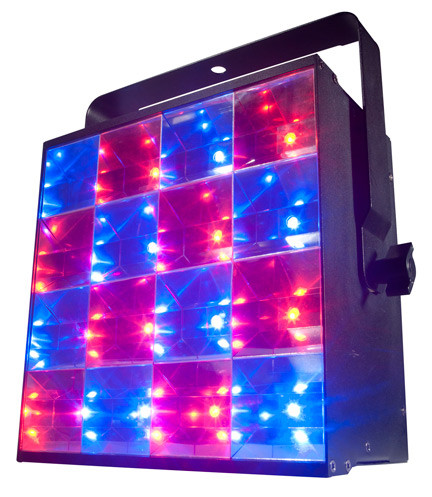

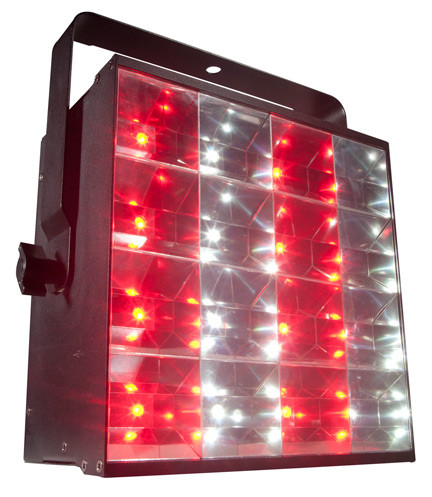

Add more creativity to your light show with ADJ's FREQ MATRIX QUAD - a revolutionary 16-Zone RGBW LED Strobe Matrix. This 2-FX-IN-1 fixture features a traditional 4-IN-1 RGBW LED strobe + 16-Zone matrix chase effect. The matrix zone chase effect gives lighting designers the ability to create exciting and dynamic energy-driven lighting shows.
Offers full DMX control with 4 DMX channel modes, dimming, strobe speed and chase speed. The FREQ MATRIX QUAD uses sixteen 8-Watt bright RGBW LEDs and consumes a maximum of 143-watts of power.
VIDEO
Specifications: • 2-FX-IN-1: Traditional RGBW LED Strobe/Blinder + 16-Zone chase effect
• 16x 8-Watt 4-in-1 RGBW LEDs (30,000 hr. rated)
• 4-Button DMX LED Display
• 3 Operational modes: DMX controller, Master/Slave & Sound Active
• 4 DMX Channel modes (2, 5,18 or 64 Ch.)
• 0-100% electronic dimming via DMX control
• Includes exciting sound activate built-in matrix programs
• LED pulse & strobe effect
• Strobe up to1200 times per minute
• Extremely Long Life (30,000 hr. rated)
• Beam Angle: 120 degree
• Runs extremely cool! - NO Duty Cycles! - Run all night!
• Includes hanging bracket
• Safety hook on rear panel
• Very low power consumption - connect more units in a single circuit
• IEC AC IN/OUT on rear to daisy chain power (up to 3 Freq Matrix Quad's @ 120V and 5 Freq Matrix Quad's @ 230V )
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Power Consumption: 143W maximum
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Dimensions (LxWxH): 12.5" x 6.5" x 13.25"/ 310 x 163 x 334mm
• Weight: 15 lbs. / 6.6 kg.
