ADJ ILLUSION DOTZ 3.3 COB LED Moving Head

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american dj illusiondotz3-3
american dj illusiondotz3-3 ADJ ILLUSION DOTZ 3.3 COB LED Moving Head ADJ ILLUSION DOTZ 3.3 COB LED Moving Head ADJ ILLUSION DOTZ 3.3 COB LED Moving Head ADJ ILLUSION DOTZ 3.3 COB LED Moving Head ADJ ILLUSION DOTZ 3.3 COB LED Moving Head ADJ ILLUSION DOTZ 3.3 COB LED Moving Head

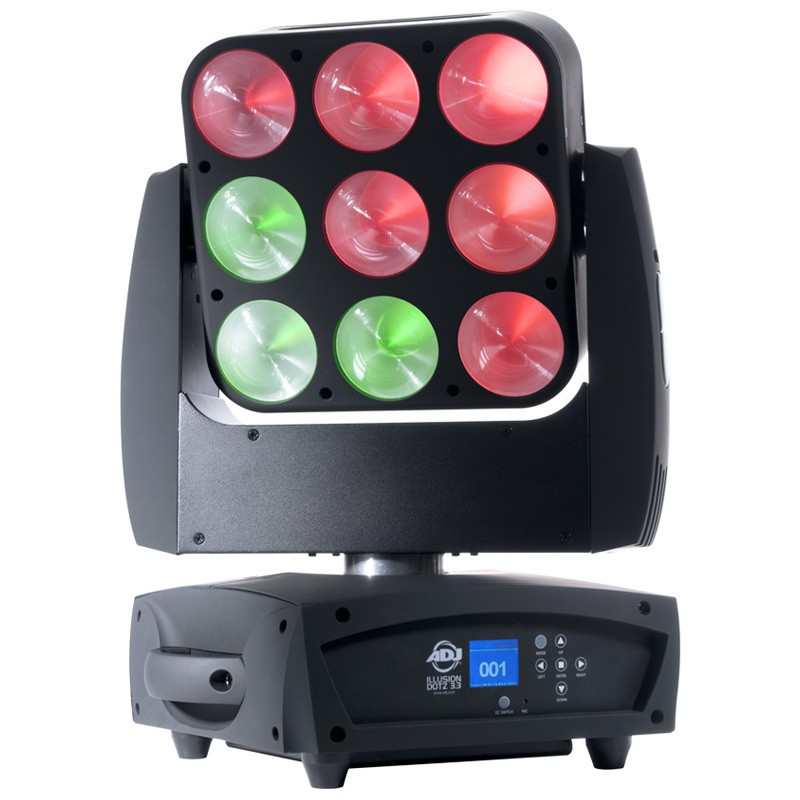

Take your light show to a new dimension with the ADJ Illusion Dotz 3.3, a Moving Head wash fixture with nine 30W Chip On Board (COB) pixel controllable TRI LEDs. Its 360/540-degree pan and 270-degree tilt allow for the beams of light to move and spin, creating added excitement to any lightshow.

Add more eye candy to your lightshow with the Dotz Illusion 3.3's stunning effects from the on-board 3x3 Pixel Mapping capabilities. Because the fixture is Artnet/Klingnet compatible, designers may project low-res video content through the RJ45 connections on the back of the unit.

The Illusion Dotz 3.3 is a smaller, more compact, footprint compared to the ADJ Illusion Dotz 4.4 making it great for nightclubs, mobile entertainers and productions, stages and churches.

The Illusion Dotz 3.3 has a 15-degree beam angle, 3 operational modes, 3 DMX channel modes and 5 dimming curve settings. The full color digital display allows for easy navigation through the fixture's functions.

• Moving Head with 3x3 Matrix of Pixel Controllable TRI color LEDs
• Light source: 9 x 30Watt TRI RGB COB LED
• 3 Operational modes: DMX Control, Sound Active & Auto Show
• Edit Programs and Scenes into on-board memory
• Pan & Tilt Inversion
• 3 DMX Modes: 12/14/38 channels (3 & 5 Pin In/Out)
• RDMX compatible
• Beam Angle: 15-degrees
• Pan: 360-degrees or 540-degrees
• Tilt: 270-degrees
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Strobing: Pulse effect; random strobe slow to fast
• Dimming: 0% - 100%
• Digital display for easy addressing and function settings
• Display Inversion Mode
• Stand Alone or Master-Slave configuration
• IEC AC IN/OUT on rear to daisy chain power (up to 4 @ 120V and 9 @ 230V )

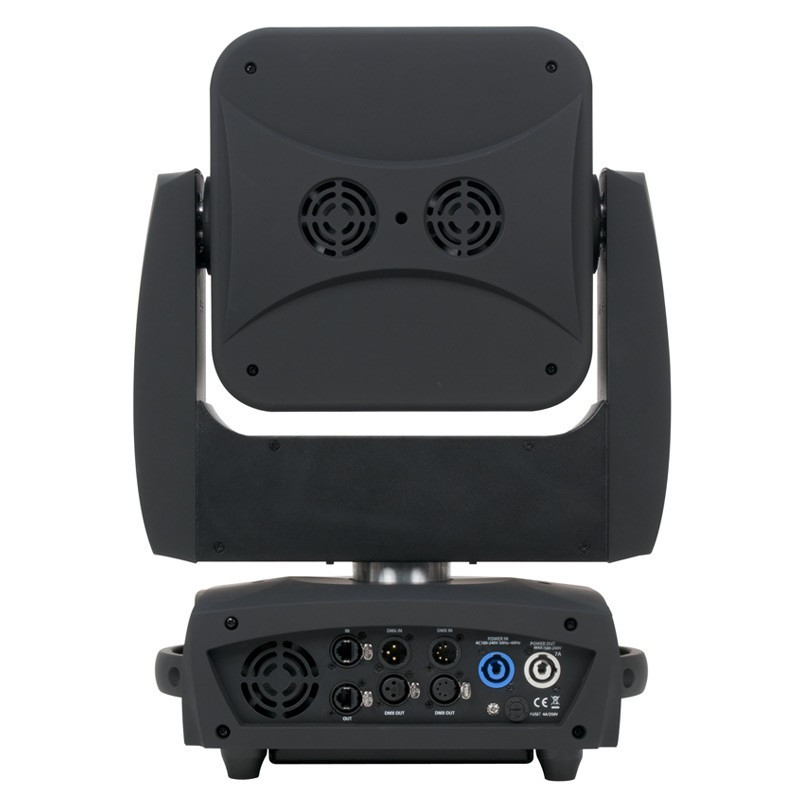

• RJ45 Input/Output for Artnet/KlingNet Control (Recommended control solutions: Arkaos Media Master Express, Media Master Pro, and LED Master software - sold separately)
• PowerCon AC IN/OUT; Daisy Chain up to 4 units @120V or 95 units @ 220V
• Power consumption: 285W (Full-On)
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz (auto sensing)
• Dimensions (LxWxH): 15" x 10.5" x 20.25" / 380 x 264 x 512mm
• Weight: 29 lbs. / 13 kgs.

Additional Information

UPCN/A
SKUILLUSIONDOTZ3-3
ManufacturerADJ
Product ConditionNew - On Clearance
ReturnableNo
