ADJ LIGHT COPILOT III Analog Lighting Controller

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american dj light-copilot3
This is a high-performance lighting controller with many useful functions. 8 Channels output and16 Channels output are available for your application. AUDIO and CHASE control are available bythis unit. A built-in microphone is provided for easy audio control. The "LATCH" function canoverride the chase function to remain an individual channel "on", while the other maintain theirchase sequence normally. There are 16 built-in programs for chasing effect which can beoperated in MANUAL mode or in AUTO mode.

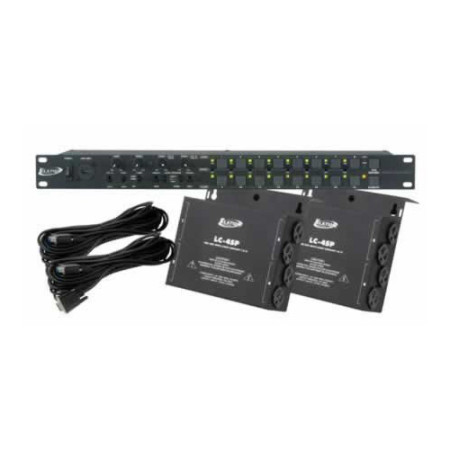

System includes: * 1x Light Copilot II controller * 2x LC-4SP, 4-Ch. Power Packs (15A per pack) * 2x LC-EX25, 25 ft. connector cablesLIGHT COPILOT II SPECIFICATIONS:* 16 channel analog chase controller * Control panel has two 8-channel zones * Fog Machine trigger button with LED function indicators (compatible with specific American DJ fog machines) * USB gooseneck light input * 16 built-in programs * Each zone is switchable from audio (sound activated) to standard to timed chase (Fast Chase to 10 minute intervals) * Internal Microphone or line input for music control * Audio sensitivity control knob * Offers option to turn desired light ON with the rest of lights maintaining chase sequence * Daisy chain up to 3 switch packs for easy installation and enhanced expendability * Flash button override * Black out (Stand by) * Switch packs use triacs rather than mechanical relays for faster, more reliable chase functions and longer life * Maximum Load: 15A per channelLC-4SP SPECIFICATIONS: * Compact 4-Channel Power Pack (proprietary for Light Copilot I & Light Copilot II) * 2x 3-pong Edison plugs per channel (8 total plugs)* 9-pin In & Out connectors to daisy chain to other LC-4SP power packs* Daisy chain output selector (Ch. 1-4 or Ch. 5-8)* Changeable hanging bracket to hang on truss * Max Power: 15A Total, 10A per channel* 15A circuit breaker* Dimensions (LxWxH): 7" x 7" x 2.5" / 180x177x64mm * Weight: 4 lbs./1.8 kgs.

Additional Information

UPC640282032193
SKULIGHT-COPILOT3
ManufacturerADJ
Product ConditionNew - On Clearance
ReturnableNo
