ADJ MATRIX BEAM LED Blinder/Cyc Effect Light

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american dj matrixbeam
american dj matrixbeam ADJ MATRIX BEAM LED Blinder/Cyc Effect Light ADJ MATRIX BEAM LED Blinder/Cyc Effect Light ADJ MATRIX BEAM LED Blinder/Cyc Effect Light

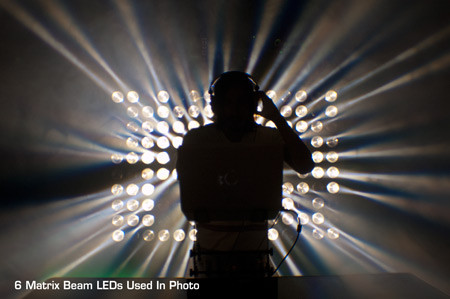

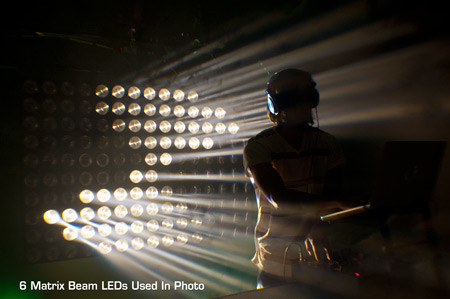

The American DJ Matrix Beam LED is designed as a Blinder/Cyc effect or as a matrix chase effect for stages and mobile productions. This fixture has built-in light chases with the option to create the alphabetic and numeric characters in light via DMX. The Matrix Beam is powered by twenty-five 3-Watt warm white LEDs in a 5x5 panel.

The Matrix Beam LED is full of user programmable features such as: 3 different DMX Channel Mode settings, 3 Operational Modes and a latch system to link multiple fixtures together for custom light show designs.



Specifications:
• 25x 3W Warm White Cree LED's in a 5x5 panel
• Designed for use as a blinder or matrix chase effect for dramatic lighting - create your own matrix chase, alphabetic and numeric characters in light via DMX
• Exciting built-in lighting programs - best when used in multiples
• 3 DMX Channel Modes: 1, 4 or 25 Channels
• 3 Operational modes: Auto (Program Run) Mode, Sound Active Mode and DMX-512 Mode
• Flicker Free
• Variable speed strobe effect
• DMX-512 Protocol
• Electronic Dimming: 0 - 100%
• Beam angle: 2-degree
• Linkable via 3-pin XLR cable
• 4-button LED display on rear panel
• IEC AC Power In/Out on rear to daisy chain power (Power connect up to 3 Matrix Beam LED)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Yoke + safety hook included
• Latching system to connect multiple panels together
• Long life LEDs (Rated at 50,000 hrs.)
• Low Power Draw: 66W max
• Multi-voltage Operation: AC 100 - 240V, 50/60Hz
• Dimensions (LxWxH): 23.75" x 23.75" x 4.5" / 600 x 600 x 114mm
26.25" x 26.5" x 4.5" / 664 x 668 x 114mm (with handles)
• Weight: 23 lbs. / 10.2 kg.
Specifications subject to change without notice.
