ADJ OCTO BEAM WW 8-Head White LED Beam Effect

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

american dj octobeamww
american dj octobeamww ADJ OCTO BEAM WW 8-Head White LED Beam Effect ADJ OCTO BEAM WW 8-Head White LED Beam Effect
The ADJ Octo Beam WW produces a classic effect with a modern twist! The effect looks like an all white Halogen bulb effect but in essence uses 8x 3-Watt warm white LEDs. It produces sharp, bright beams at a 3.4 degree beam angle. The Octo Beam WW has 3 DMX channel modes (1, 8 or 10), 3 operational modes (Sound Active, Show or DMX modes), LED pulse and strobe effects and 0-100% electronic dimming.

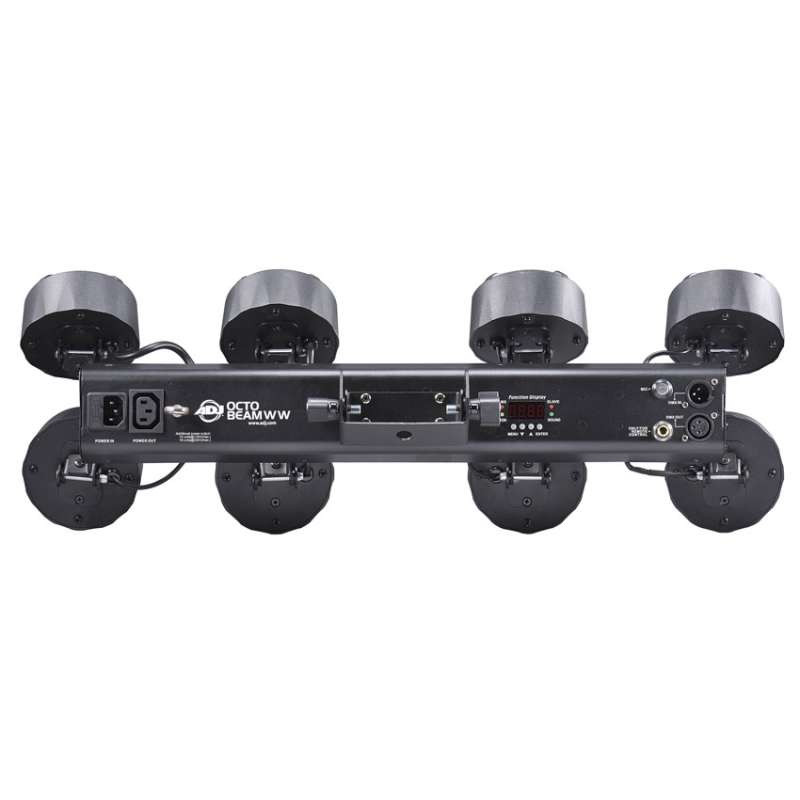

The rear control panel features a 4-button LED display menu, 3-pin DMX In/Out connections and IEC In/Out for power linking up to 12 units at 120V or 19 units at 230V operation. This fixture is compatible with the ADJ UC3 easy-to-use controller.

• 8-head beam effect with eight warm white LED's
• 3 DMX Channel modes: 1, 8 or 10 channel modes
• 3 Operational modes: Sound Active Mode, Show Mode, & DMX Controlled
• Stand Alone or Master-Slave Configuration & Manual control of each fixture head setting Dim and Full on.
• LED pulse & strobe effect
• Flicker Free
• Electronic Dimming: 0 - 100%
• Beam angle: 3.4-degree
• Linkable via 3-pin XLR cable
• 4-button digital display on rear panel
• IEC AC IN/OUT on rear to daisy chain power (up to 12 Octo Beam WW's @ 120V and 19 Octo Beam WW's @ 230V )
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Includes mounting yoke to mount on a wall or on to trussing
• Light Source: 8x 3W (2700K-3300K) Warm White LED source (Rated at approximately 50,000 hours)
• Safety loop on rear
• Run all night - No duty cycle - Low power consumption
• Multi-voltage: 100-240V, 50/60Hz
• Power Draw: 28.9W max (All LED's @ Full On)
• Dimensions (LxWxH): 25" x 9" x 8" / 632.6 x 226.9 x 199mm
• Weight: 8 lbs. / 3.5 kg.
