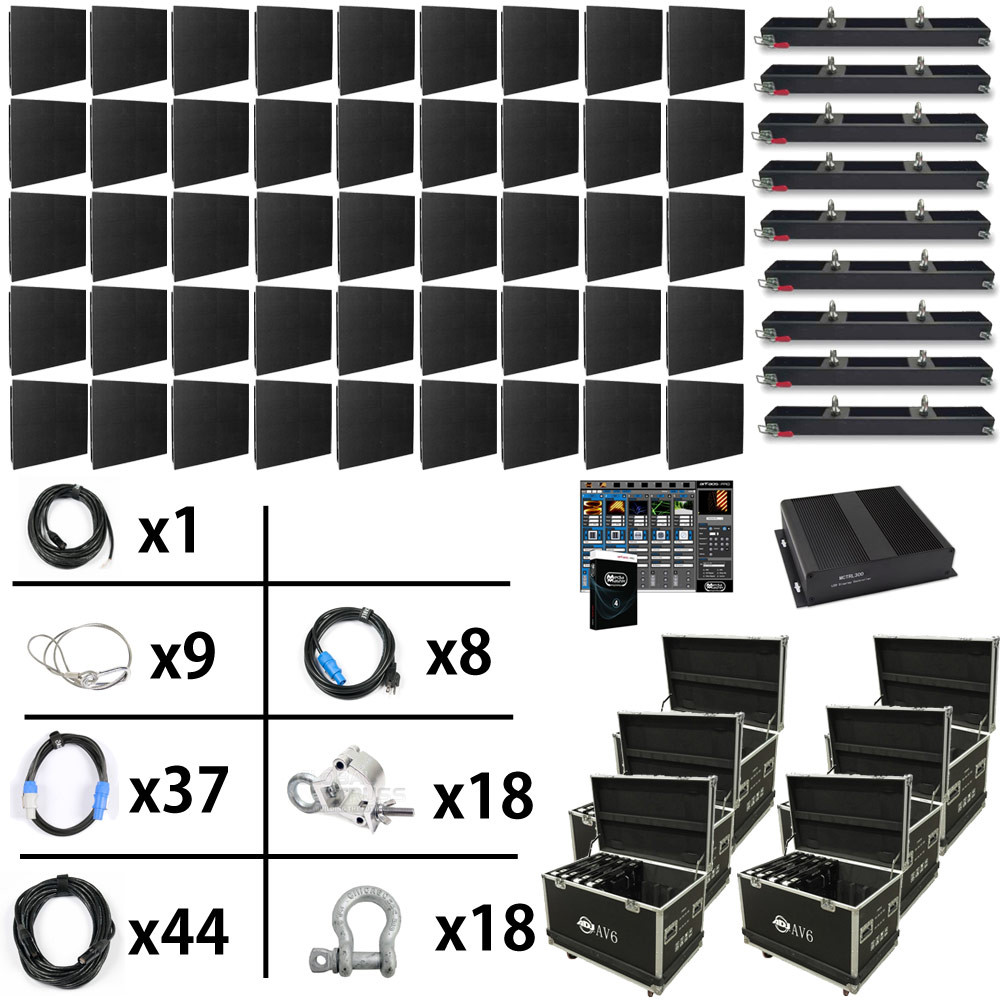

Measuring approximately 17.06 feet wide by 9.48 feet high, this pre-configured video wall package utilizes (45) ADJ AV6 video wall panels and includes the required driver, as well as all necessary powerCON linking cables, etherCON linking cables, rigging kits to properly hang the wall, as well as road cases to house/protect the video wall panels.
This AV6 LED Video Wall System Includes: (45) AV6 Video Panels VIDEO
Specifications • Pixel Pitch: 6.0mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 576 x 576 x 75mm / 22.75" x 22.75" x 3"
• Module Quantity: 4
• Weight: 23lbs. / 8.15Kg
(6) AV6FC Flight Cases • Fits 8 AV6 video panels
• 9mm Plywood
• Butterfly Latches
• Swivel Castors
• Steel Ball Corners
• Foam Inlay
• Outer dimensions (LxWxH): 39.8" x 26" x 32.3" (1.01 x 0.66 x 0.82m)
(1) MCTRL 300 The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs. The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668. The MCTRL-300 is an essential accessory for the AV6 video panels.
• Control Mode: Synchronous Display with Control PC by DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668
• Brightness Correction: Pixel, Module, Cabinet
* Requires a computer (sold separately)
Media Master Express • Control video layers with just a few DMX channels or MIDI notes
• Work on a single DMX universe or MIDI channel
• Drag & Drop visuals directly on the main interface
• Organize your shows with up to 64 patches of 64 cells
• Control up to 3 parameters per cell via DMX or MIDI
• Optional fade time on trigger
* Requires a computer (sold separately)
Cables and Accessories • (9) AV6RB1 Rigging Bars - Up to 20 panels maximum vertical hang.
• (44) 3-Foot Cat3 Data Cables
• (37) PLC3A 3-Foot Powercon Cables
• (8) MPC50 50-Foot Data Cables
• (1) CAT6PRO50FC 50-Foot Neutrik Power First Cable
• (18) 5/8" Shackles
• (9) CH-05 Safety Cables
• (18) Eye Clamps
NOTE: Regardless of shipping method selected, this package will ship via standard Ground delivery.
