ADJ AV6 17ft x 11.4ft Fixed Install Video Wall Package

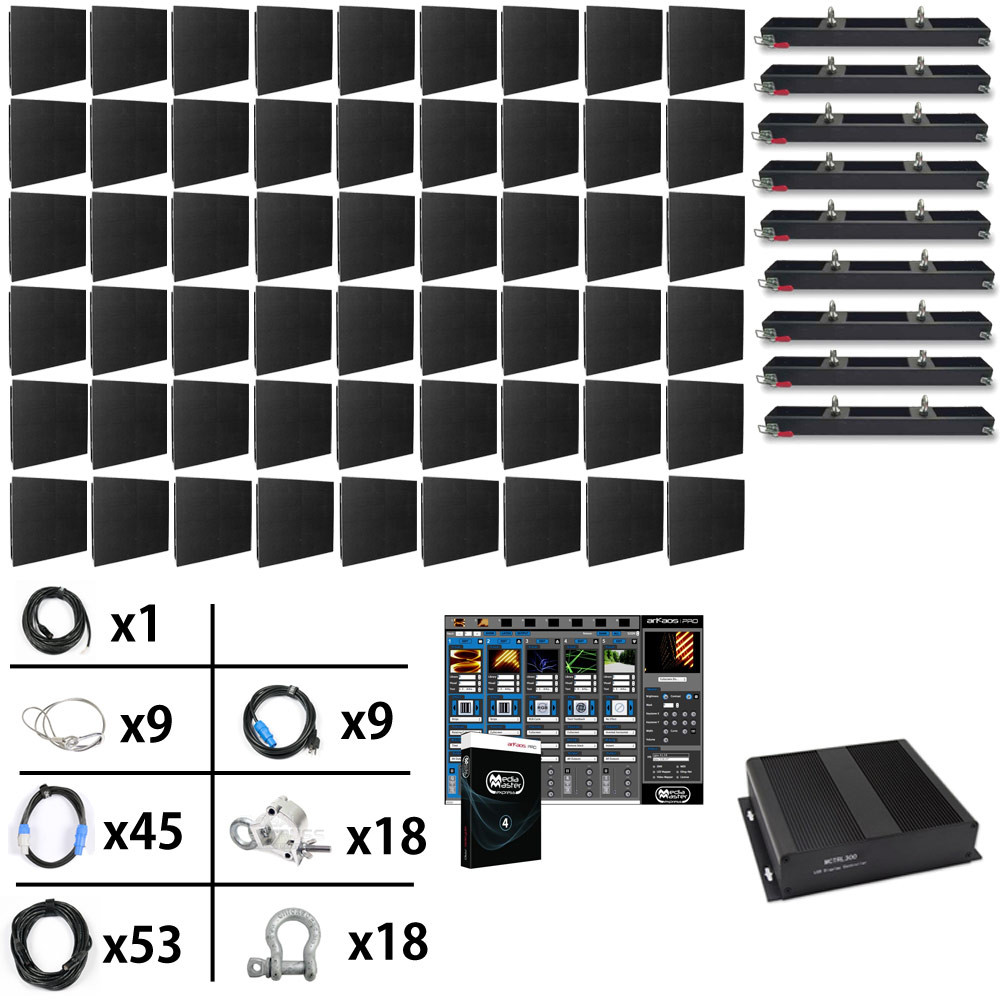

This AV6 LED Video Wall System Includes:

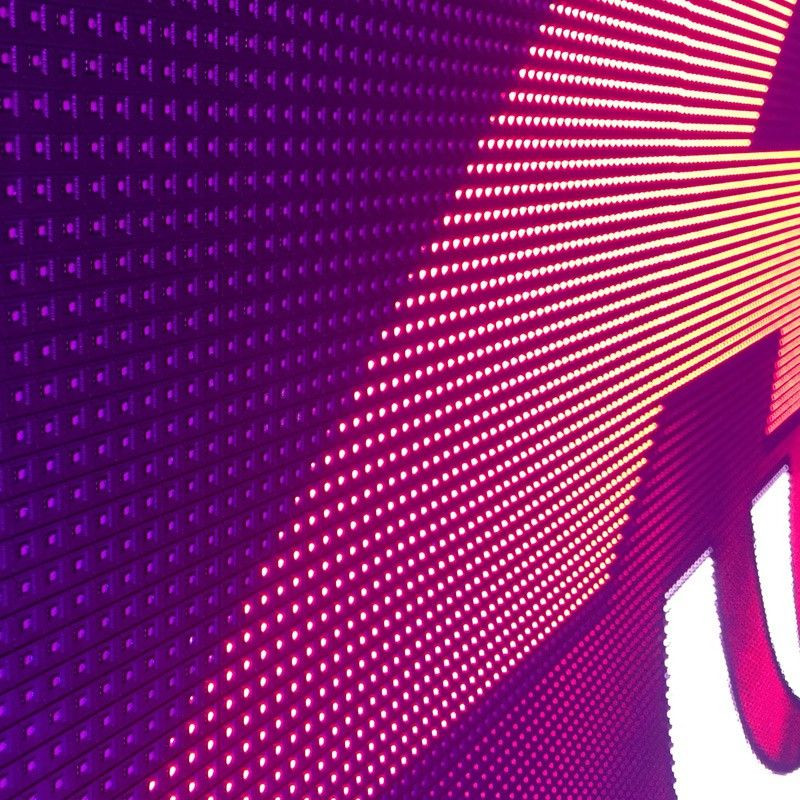

(54) AV6 Video Panels


Specifications
• Pixel Pitch: 6.0mm (0.25")
• LED Configuration: 3-in-1 SMD2121 LED
• Pixel Density: 96x96; 27,777 per square meter
• Size: 576 x 576 x 75mm / 22.75" x 22.75" x 3"
• Module Quantity: 4
• Weight: 23lbs. / 8.15Kg

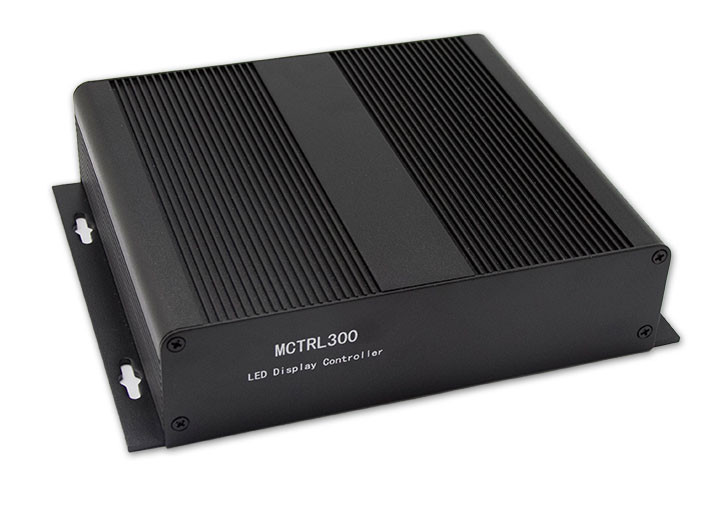

(1) MCTRL 300
The MCTRL-300 is a controller for ADJ's AV6 LED video panels. It features one DVI signal source input and two RJ45 pixel-data outputs. The controller is easily configured via USB and it will drive up to 1.3 million pixels supporting the following resolutions: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668. The MCTRL-300 is an essential accessory for the AV6 video panels.

• Control Mode: Synchronous Display with Control PC by DVI
• Frame Update Frequency: 50-60Hz
• Scan Mode: 1/12 Duty
• Refresh Rate: 1200Hz
• Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• Control Distance: Ethernet Cable <100m or Fiber Optic>120m
• Support VGA Mode: 1280 x 1024, 1024 x 1200, 1600 x 848, 1920 x 712, 2048 x 668
• Brightness Correction: Pixel, Module, Cabinet
* Requires a computer (sold separately)

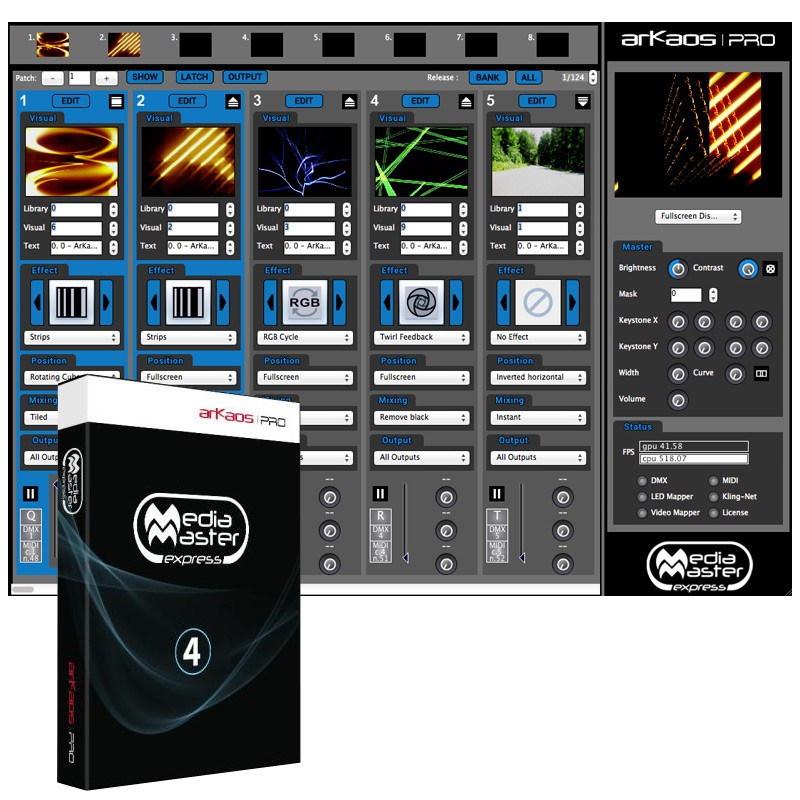

Media Master Express
• Control video layers with just a few DMX channels or MIDI notes
• Work on a single DMX universe or MIDI channel
• Drag & Drop visuals directly on the main interface
• Organize your shows with up to 64 patches of 64 cells
• Control up to 3 parameters per cell via DMX or MIDI
• Optional fade time on trigger
* Requires a computer (sold separately)

Cables and Accessories

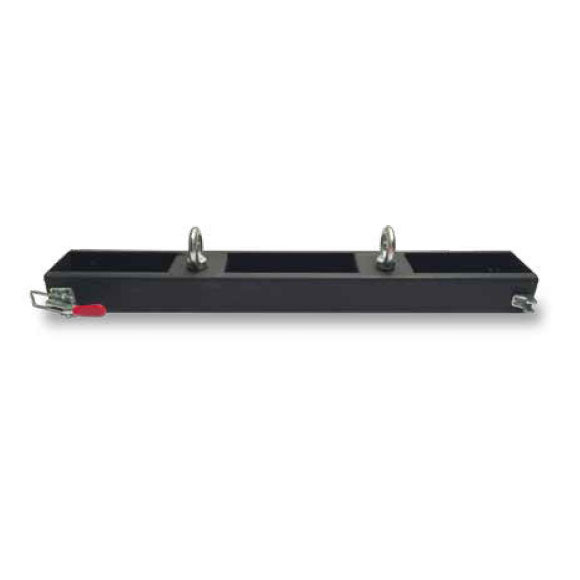

• (9) AV6RB1 Rigging Bars - Up to 20 panels maximum vertical hang.
• (53) 3-Foot Cat3 Data Cables
• (45) PLC3A 3-Foot Powercon Cables
• (9) MPC50 50-Foot Data Cables

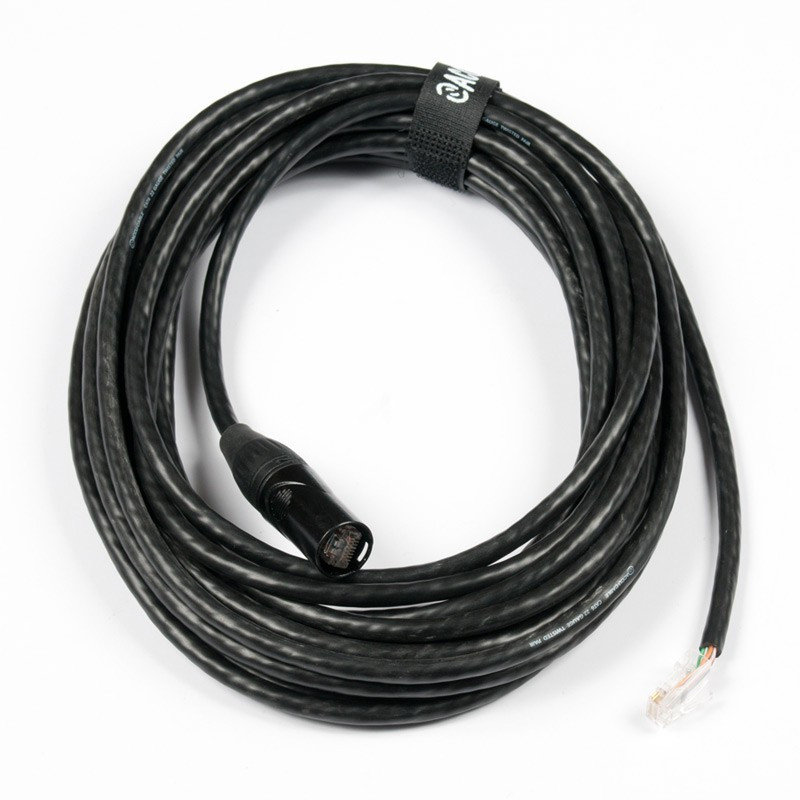

• (1) CAT6PRO50FC 50-Foot Neutrik Power First Cable
• (18) 5/8" Shackles
• (9) CH-05 Safety Cables
• (18) Eye Clamps

NOTE: Regardless of shipping method selected, this package will ship via standard Ground delivery.
