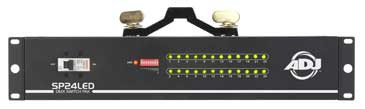

24 channel switch pack with DMX in/out. On/Off control up to 24 LED fixtures
The SP24LED is a 24-channel DMX Switch Pack designed to turn LED fixtures on and off using a universal DMX controller (sold separately). Up to 21 SP24LEDs may be daisy-chained in one DMX-512 chain. There are 24 power inputs on the rear of the controller to plug your lighting fixtures into. The SP24LED is great for DJs, night clubs, bowling centers, roller rinks and permanent lighting installations.
• 24-channel Switch Pack with DMX In/Out
• Independently control On/Off for 24 LED fixtures
• Daisy-chain up to 21 SP24LED Switch Packs in one DMX-512 chain
• Rack mountable or hang from truss (Includes omega, quick lock, bracket for truss mount)
• 16 amp resettable breaker
• DMX Addressing: DMX DIP Switches
• Dimensions (LxWxH): 19"x5"x3.5" /482.5x123x89mm - 2 rack spaces
Specifications subject to change without notice.
ADJ USA Model Only:

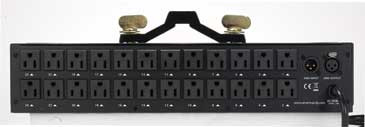

• 24x 120V 3-prong Edison plugs
• Max power (120V): 60W (0.5 Amps) per channel or 1440W (12 Amps) total
• Power Supply: 120V/60Hz
• Weight: 8 lbs. / 3.5kg.
ADJ Europe Model Only:
• 24x 230V IEC plugs
• Max power (230V): 115W (0.5 Amps) per channel or 2760W (12 Amps) total
• Power Supply: 230V/50Hz
• Weight: 4.1kg.
|Product Condition||New - On Clearance|
