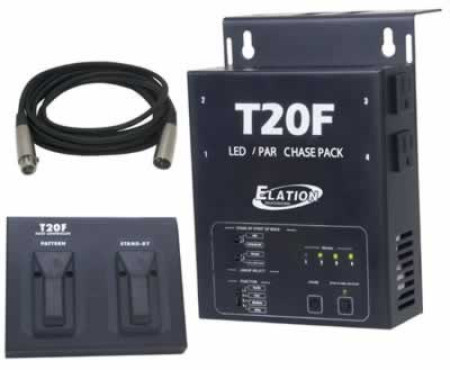

The American DJ T20F is a 4 channel chase controller with a foot switch that allows you to blackout or switch between the 20 pre-programmed chases.The T20F System includes 1x T20F Chase Controller, 1x T20F Foot Switch and 1x DMX cable.
T20F "Chase Controller" Features:• 4-channel chase control pack (Four 3-prong Edison sockets)
• Great for the working Musician or DJ
• Designed to chase LED Par Cans as well as traditional halogen par cans
• DMX, 3pin, XLR In/Out for linking to other T20F's
• 20 built-in programs: 10 normal chase programs and 10 chase programs with fade time
• 7 pre-set scenes (holding the "Stand By" button down for 3 seconds):
Scene 1= Channel 1 On
Scene 2= Channel 2 On
Scene 3= Channel 3 On
Scene 4= Channel 4 On
Scene 5= Channel 1 and 3 On
Scene 6= Channel 2 and 4 On
Scene 7= All On
• Stand By function (Blackout)
• Chase button to select from the 20 built in chases
• Master/Slave and DMX operation modes
• Chase by way of Audio (sound activation) or 3, preset, chase speeds
• Max Load: 5A per channel or 15A max
• Circuit breaker protection
• Built-in, reversible, hanging/truss bracket
• Voltage: 120VAC / 60Hz
T20FC "Foot Controller" Features: • Chase selection foot switch
• Stand By (Blackout) foot switch
