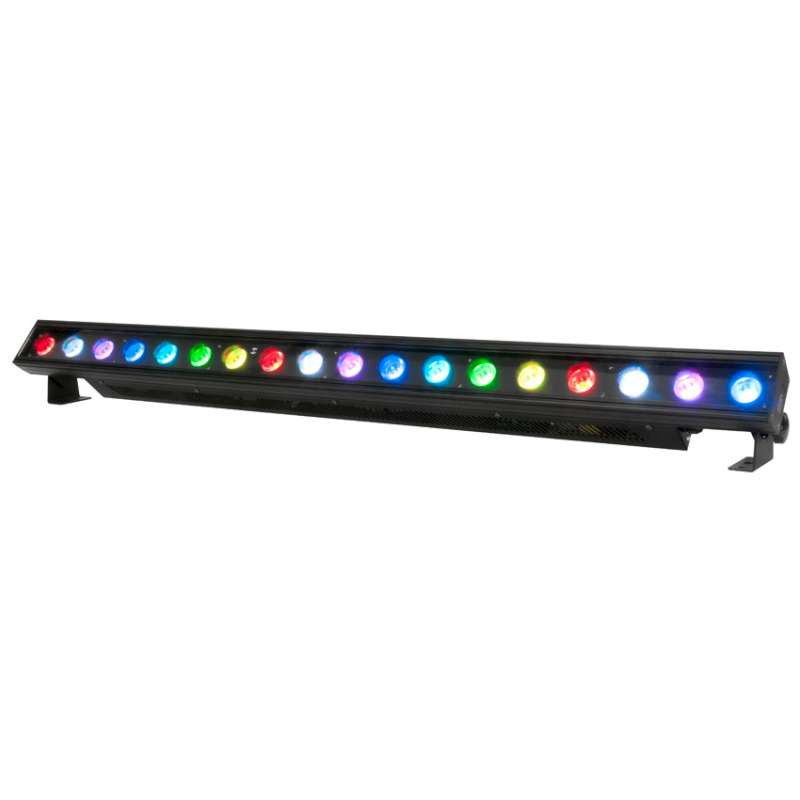

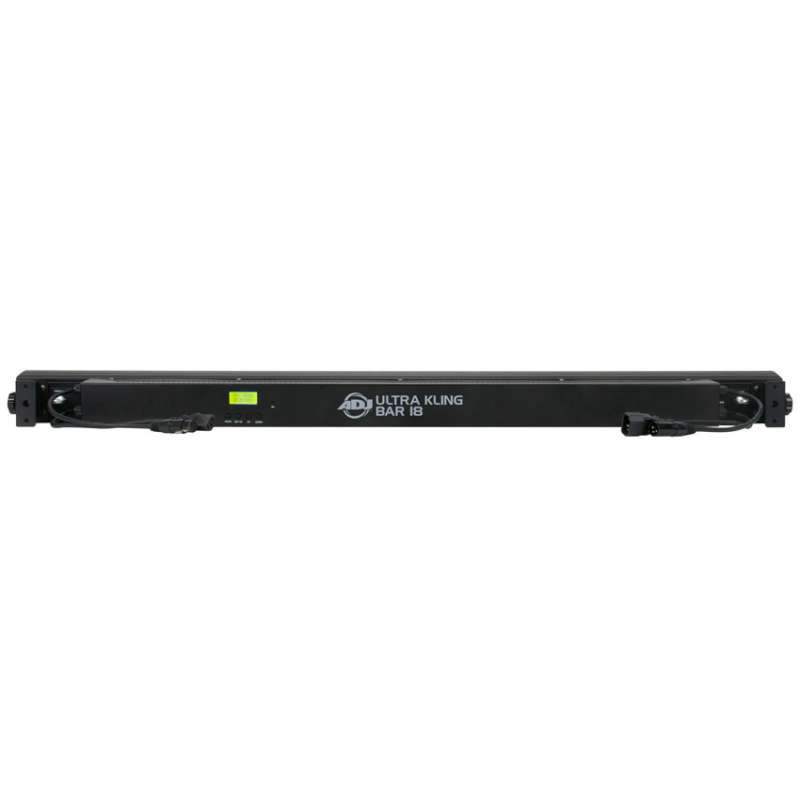

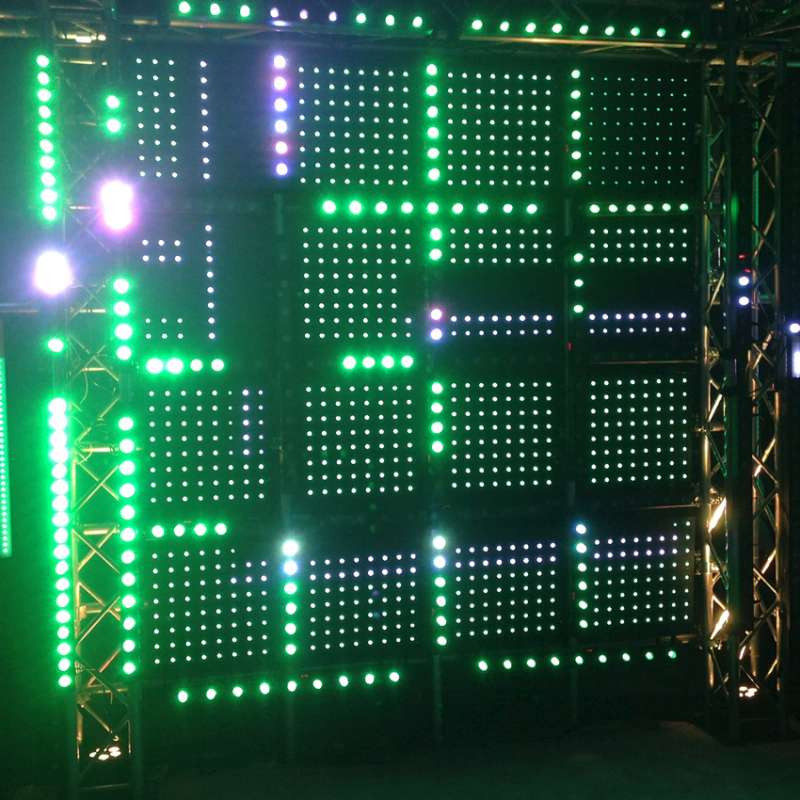

The ADJ Ultra Kling Bar 18 is a 1-meter linear fixture with 18x 3-Watt TRI LEDs. It features individual pixel control allowing for this product to be used in conjunction with Arkaos Kling-Net software to project low-res video across one or multiple fixtures. The result is a stunning video wall that produces pure lighting excitement at a permanent install such as a nightclub, bar, lounge, restaurant or inside a building.
The Ultra Kling Bar 18 may also be used as a traditional linear wash for uplighting and stage lighting utilizing 5 operational modes, 7 DMX channel modes, 14 built-in programs and 32 built-in color macros.
Features:• 1 Meter, 18x 3W Tri LEDs Pixel Bar
• 5 Operational Modes
• 7 DMX Channel Modes
• Built-In Programs & Color Macros
• Electronic Dimming 0-100%
• Kling-Net & Art-Net Control available
• Individual Pixel Control
Specifications:• Light Source: 18 x 3W TRI LEDs, (Rated at approximately 50,000 hours)
• Operational Mode: 5 - DMX Controlled / Sound Active / Net Control / Dimmer / Auto Run
• Beam Angle: 40-Degrees
• Luminance: 393 @ 3M at 40
• Kling Net Control: Yes
• Art-Net Control: Yes
• Display: 2 x 8 LCD character display
• RJ45 Connection: Yes In/Out
• DMX Channels: 7 DMX Modes, (3, 4, 6, 8, 9, 15, or 54 Ch)
• DMX Connections: 3-Pin In/Out
• Built-In Programs: 14
• Color Macros: 32
• Dimming: Electronic 0-100%
• Flicker Free: Yes
• Shutter / Strobe: Yes
• Strobe Rate: Adjustable
• Sound Active: Yes
• Power Connection: IEC AC In/out
• Input Voltage: AC 100V-240V 50/60Hz
• Power Consumption: 98W (Full on)
• Power Link: Up to 6 Ultra Kling Bar 18's
• Dimensions: (LxWxH) 43.5" x 3.25" x 4.5" / 1100 X 80 X 116mm
• Weight: 13 lbs. / 6 kg.
