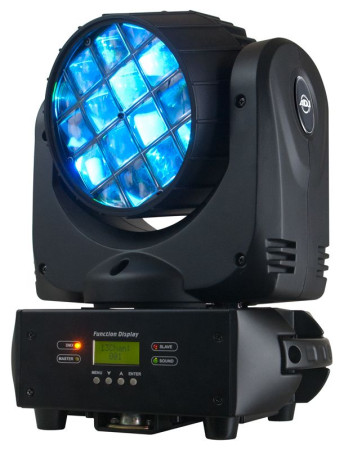

ADJ VORTEX 1200 Moving Head Moonflower Effect

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

american dj vortex1200
american dj vortex1200 ADJ VORTEX 1200 Moving Head Moonflower Effect ADJ VORTEX 1200 Moving Head Moonflower Effect ADJ VORTEX 1200 Moving Head Moonflower Effect ADJ VORTEX 1200 Moving Head Moonflower Effect

You Might Also Like

The ADJ Vortex 1200 offers a new dimension of excitement for nightclubs, bars, stage productions and mobile entertainers. This unique Moving Head produces a Moonflower type effect that sprays hundreds of colored beams of light across a room or dance floor.



The Vortex 1200 uses twelve 10W RGBW (4-IN-1) Quad color LEDs. It's 16-piece lens kit continuously rotates back and forth creating pure lighting excitement. Other features include: zoom (5 44-degree beam angle), fast pan/tilt, 3 operational modes, 4 DMX channel modes, 23 built-in color macros, 4 show modes and 5 selectable dimming curves.

The Vortex 1200's quad LEDs are rated at 50,000 hours, the maximum power draw is 174W, and up to 4 Vortex 1200's (@ 120V) or 8 Vortex 1200's (@ 230V) may be power daisy-chained together via the built-in PowerCon connectors. The unit includes an Omega bracket for mounting on truss or stands.

Specifications:
• Unique Moving Head with a Moonflower type effect that produces hundreds of beams of light
• 16-piece lens kit rotates continuous 360 degrees counter or counter-clockwise
• Twelve 10W RGBW Quad Color (4-IN-1) LEDs
• Effect Zoom: 5 44-degree beam angle
• 3 Operational Modes: Sound Active, Show Mode, & DMX Controlled
• 4 DMX channel modes: 14, 15, 17 or 29 channel
• 23 Built-In Color Macros
• Electronic Dimming: 0% - 100%
• Pan/Tilt Inverse Mode for contrasting movement when fixtures are linked together
• Fast Pan Tilt Movement
• Pan: 540-degree; Tilt: 240-degree
• 16-Bit Fine Pan/Tilt control
• 4 Show Modes
• Stepper motors with micro stepping
• Includes Omega bracket for truss mounting
• Fan cooled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Electronic Strobe/Random effect; random strobe slow to fast
• PowerCON AC In/Out on rear to daisy chain power (up to 4 Vortex 1200's @ 120V and 8 Vortex 1200's @ 230V)
• Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
• Light Source: 12 x 10W High Output RGBW Quad LED's
• Long Life LED (Rated at approximately 50,000 hrs)
• Multi-voltage Operation: 100-240V, 50Hz/60Hz
• Power Draw: 174W total (All LED's @ Full On)
• Dimensions (LxWxH): 10.5" x 6.75" x 13"/ 263 x 170 x 327mm
• Weight: 16 lbs. / 7.3 kg.

Additional Information

UPC819730012524
SKUVORTEX1200
ManufacturerADJ
Product ConditionNew - On Clearance
ReturnableNo
