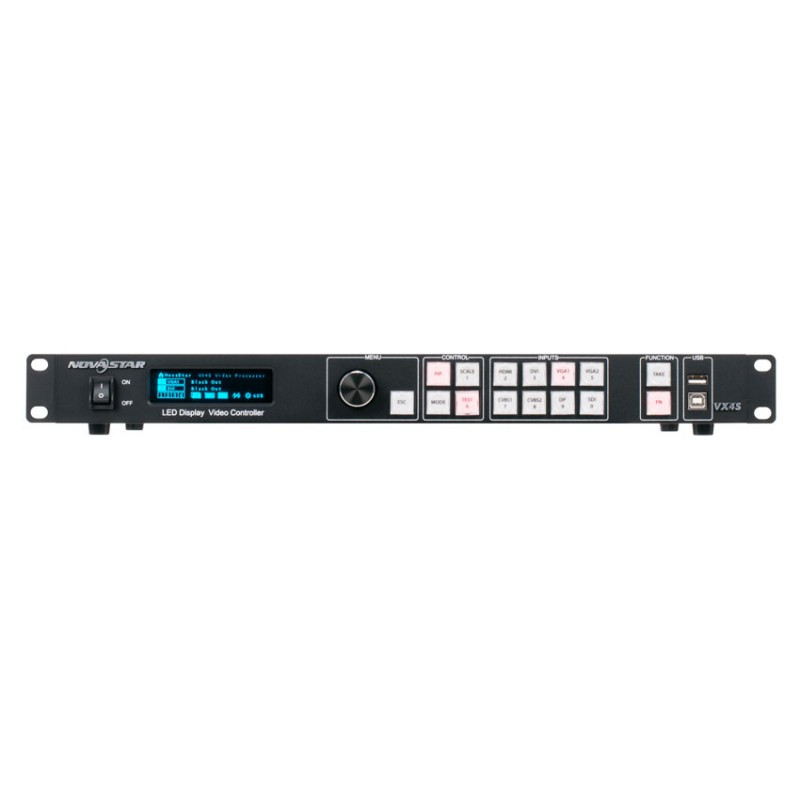

The new NOVASTAR VX4S' is a professional and user friendly LED display controller and a powerful front end processor that supports multiple signal formats including DP / HDMI / VGA / DVI / CVBS / SDI, and up to 1920 x 1200p @60Hz input resolution, includes (4) RJ45 outputs for up to 2.6 million pixels of LED control, and supports Nova's new generation point-by-point correction technology.
NOVASTAR VX4S' is compatible with the ADJ AV6 video panels.
FEATURES:• User Friendly LED Display Controller
• Powerful Front End Processor
• Up to 1920 x 1200 p @60Hz Input Resolution
• Multiple Video Signal Format Support
• New Generation Point-By-Point Correction Technology
• Cascade Multiple Units Together Via USB
• Rack Mountable Aluminum Enclosure (screws not included)

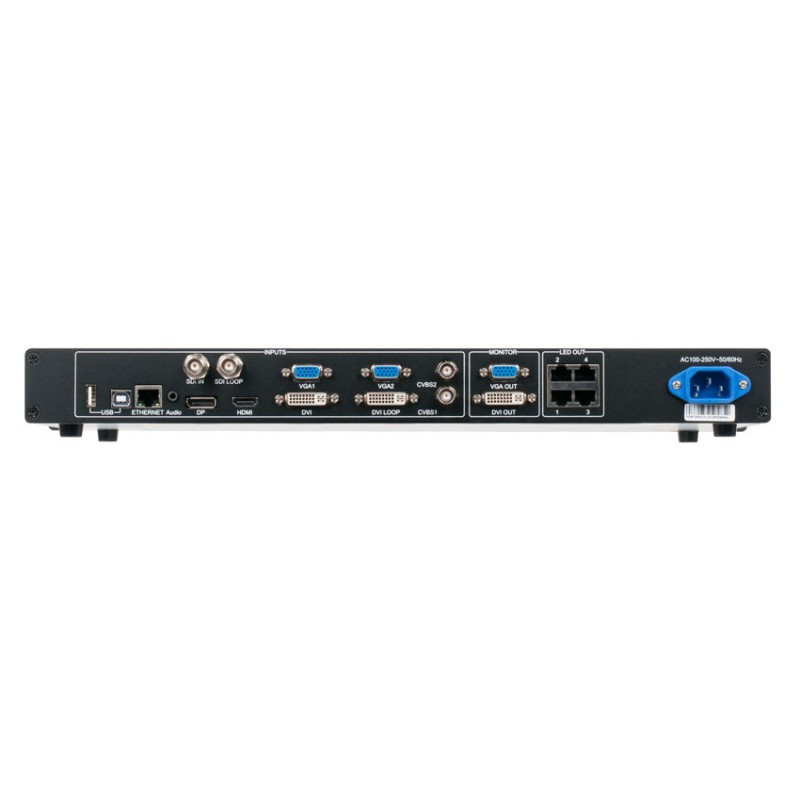

CONTROL / CONNECTIONS:• (1) RJ45 LAN for IP Based Control
• (4) RJ45 Outputs for up to 2.6 million Pixels of LED Control
• (2) USB Type A and (2) USB Type B Ports (1 set on each side)
• (1) 1/8 inch (3.5mm) Audio Input
• Video Input: (1) DP / (1) HDMI / (2) VGA / (1) DVI / (2) CVBS / (1) SDI
• Video Output: (1) DVI Loop / (1) DVI / (1) VGA / (1) SDI Loop
• Locking IEC Power Input
SIZE / WEIGHT:• Length: 19.0" (483mm)
• Width: 10.8" (275mm)
• Height: 1.8" (45mm)
• Weight: 5.6 lbs. (2.55 kg)
ELECTRICAL:• AC 100-240V - 50/60Hz - 0.65A
• Max Power Consumption: 16W
INCLUDED CABLES (1 each):• PDP, VGA, USB, HDMI, DVI, CAT5, Power
