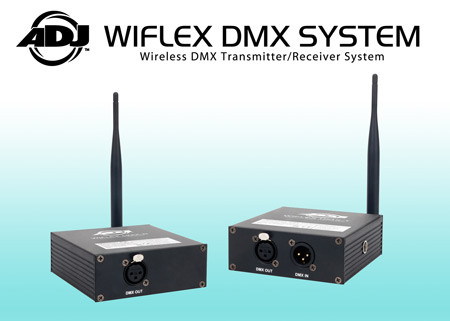

Wireless DMX system includes 1 transmitter & 1 receiver, 3 pin, up to 500 feet range (open line of sight)
The WiFlex System consists of a transmitter and receiver pair that was designed to work with most USITT DMX512/1990 standard controllers and fixtures in the market. Simply connect out of your DMX controller and into the WiFlex Transmitter and out of the WiFlex Receiver and into your standard DMX fixture to get reliable DMX signal sent wirelessly between your devices. The WiFlex system was designed to transmit DMX signals wirelessly, up to 500 feet, between your DMX console and fixtures. One WiFlex transmitter can send a constant/reliable signal to several WiFlex receivers. The WiFlex DMX System features a special frequency-hopping algorithm that is more advanced than the standard FHSS technology. The algorithm used in WiFlex DMX avoids "Blackout" period, which is caused by interference from other W-LAN or any other wireless products using the 2.45 GHz band, and only uses channels that are not used. WiFlex DMX is the ideal solution for DJ's, nightclubs, bars or for any event where you don't want data cables to be seen and when it is not easy to run data cables to your fixture(s) location.
System Features:
• 512 USITT DMX channels per system
• System includes 1 Transmitter & 1 Receiver
• Threaded clamp hole for mounting
• Multiple receivers can be used per transmitter

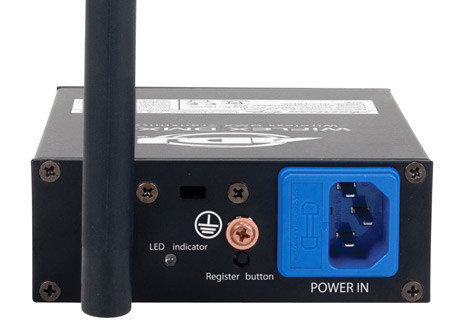

• 1 button synchronization
• Up to 500 wireless feet (open line of sight)
• Special Frequency Hopping algorithm
• 3-pin XLR
System Components:
• (1) WiFlex DMX-T (Transmitter)
• (1) WiFlex DMX-R (Receiver)
• (2) 5dB antennas
• (2) Locking IEC power cords
• (1) User manual
Specifications:
• RS485 Interface: USITT DMX512
• Input voltage: 100-240VAC 5060Hz
• Power consumption: 300mA maximum
• RF Frequency band: 2.4002.483MHz
• RF Channels: 1-16
• RF channel data rate: 250Kbps
• RF Transmitter power: = 18dBm
• RF Receive sensitivity: = -90dBm
• RF Antenna connector & Impedance: SMA, 50O 5%
