Anchor Audio LDP 6000DELUXE Liberty PA System Pack

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

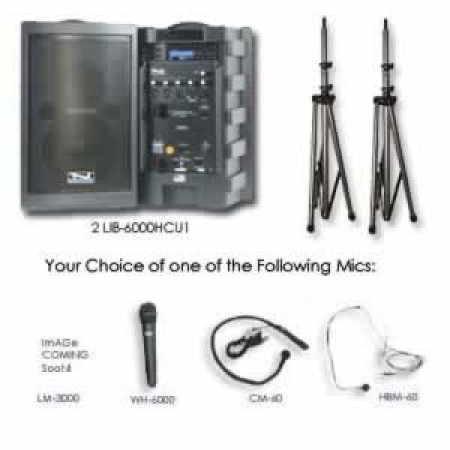

anchor audio ldp-6000deluxe
Images may show accessories or configurations not packaged with this item.
Liberty is a battery-powered sound system designed for crowds up to 2,000* people with its 117dB of clear sound.The Liberty main system speaker is switchable to either an efficient voice-projecting system or a full range music-quality system.

• 2 LIB-6000HCU1
• 2 SS-550 Speaker Stands
• Choice of Mics:handheld mic (WH-6000) or body-pack transmitter (WB-6000) and headband mic (HBM-60) or lapel mic (LM-6000) or collar mic (CM-60).
• SC-50 50" Cable Connection.

2 LIB-6000HCU1 Speakers:
• Built-in CD player
• Built-in wireless receiver and antenna.
• Installed heavy duty batteries.
• Battery powered sound system with built-in charger.
• Switchable to either an efficient voice-projecting system or a full range music quality system.
• 50W amplifier
• Handles crowds of 1000 people or more.
• 8" woofer and titanium-dome compression driver in tuned enclosure.
• Tough, injection-molded case.
• 2 XLR balanced phantom powered mic inputs • 1/4" line input
• Line output
• Treble and bass controls
• 12VDC output and a 1/4" speaker output
• Accommodates multiple mics, plus CD/Tape input.
• Power Requirements: 2 batteries, 12V rechargeable, 2.6Ah (included)
• Includes receiver only; microphone and transmitter must be ordered separately.
Techinical Specifications:
• Rated Power Output : 50 Watts
• Max SPL @ rated power : 117 dB Speech Projection in mode, 107 dB Speech Projection out mode
• Battery (two) : 12 volt rechargeable, 3.0 AH, (7.0 AH with H option)
• Sensitivity for rated output : Microphone: -52 dBV (2.5 mVrms), Line: -14 dBV (200 mVrms)
• Frequency Response : 60 Hz - 15 kHz +/- 3 dB • Speech Projection out mode, (Speech Projection in mode: +10 dB from 1.5k-12 kH
• Mic Inputs : Lo-Z, balanced, phantom powered, XLR
• Line input : Hi-Z, unbalanced, 1/4 Inch - phone
• Line output (post fader) : buffered, 600ohm, 1/4 Inch - phone
• AC power requirements : 110 - 125 VAC, 50/60 Hz, 50W Max, 210 - 240 VAC, 50/60 Hz, 50W Max
• Dimensions:
Height : 22.5 inch
Width : 13 inch
Depth : 10 inch

2 SS550 Speaker Stands:
The Anchor Audio SS-550 is a heavy-duty, brushed aluminum speaker stand. It holds up to 75 pounds and is height adjustable from 38 to 79 inches.
Weighing in at just 8 pounds this stand is intended for use with the Xtreme, Liberty, Explorer, Megavox and Voyager PA systems.

Choice of Mics:
The Anchor Audio WH-6000 UHF wireless handheld mic.
This is a handheld microphone/transmitter with 16 user selectable UHF channels.
For use with a UHF wireless receiver.
a headband microphone for use with the WB-6400, WB-6000 and WB-II Body Pack Transmitters. Adjustable headband and boom mic with electret mic element. TA4F 4-pin mini-XLR plug.
Collar mic, mini phone plug for use with UHF Wireless body-pack transmitter (WB-6000-ANC)

SC-50 50" Cable Connection:
Speaker cable with male phone plugs on both ends- 50".

Additional Information

Manufacturer Anchor Audio
Product Condition New - On Clearance
Returnable No
