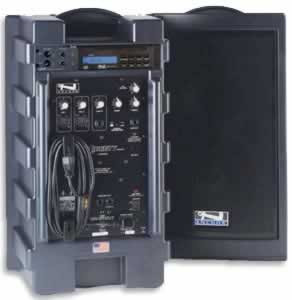

The Liberty is a battery-powered sound system that may have optional installation of one or two Anchor Wireless UHF receivers. Designed for crowds up to 1,000 people with its 117dB of clear sound.
FEATURES:• Now featuring 16 channel UHF diversity wireless by Anchor Audio.
• Rugged CD mechanism with blue back-lit display and bar graph level display.
• Tough, injection-molded case is remarkably durable.
• Improved "limiter" circuitry reduces distortion and increases intelligibility.
• Integrated circuit amplifier with short circuit and thermal overload protection.
• External speaker output powers optional companion speaker.
• Daisy-chain ready, connect Liberty's together for expanded coverage.
SPECIFICATIONS:• Rated Power Output : 50 watts
• Max SPL @ rated power : 117 dB Speech
Projection in mode, 107 dB Speech Projection out mode
• Battery (two) : 12 volt rechargeable, 3.0 AH (7.0 AH with H option)
• Sensitivity for rated output : Microphone: -52 dBV (2.5 mVrms), Line: -14 dBV (200 mVrms)
• Frequency Response : 60 Hz - 15 kHz +/- 3 dB • Speech Projection out mode (Speech Projection in mode: +10 dB from 1.5k-12 kH
• Mic Inputs : Lo-Z, balanced, phantom powered, XLR
• Line input : Hi-Z, unbalanced, 1/4"-phone
• Line output (post fader) : buffered, 600ohm, 1/4"-phone
• AC power requirements : 110 - 125 VAC, 50/60 Hz, 50W Max, 210 - 240 VAC, 50/60 Hz, 50W Max
• Dimensions (HWD) : 22.5 x 13 x 10" (57 x 33 x 26 cm)
• Weight : 44 pounds (20 Kg.)
• Specifications : Subject to change without notice.
