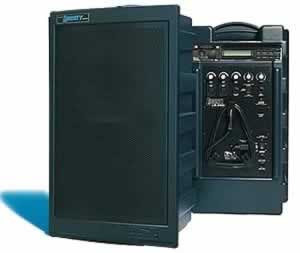

Dual function (speech projection on/off) unpowered companion speaker for the Liberty Sound System, art design and the finest quality of materials.
FEATURES:• Switchable to either an efficient voice-projecting system or a full range music quality system.
• 70W amplifier.
• AC powered.
• Handles crowds of 1000 people or more
8" woofer and titanium-dome compression driver in tuned enclosure.
• Tough, injection-molded case.
• 2 XLR balanced phantom powered mic inputs.
• 1/4" line input.
• Line output.
• Treble and bass controls.
• 12VDC output and a 1/4" speaker output
• Accommodates multiple mics, plus CD/Tape input .
• Power Requirements: 110-125VAC, 50/60Hz; 210-240VAC, 50/60Hz
TECHNICAL SPECIFICATIONS:• Rated Power Output : 50 watts
• Max SPL @ rated power : 117 dB Speech Projection in mode, 107 dB Speech Projection out mode
• Battery (two) : 12 volt rechargeable, 3.0 AH (7.0 AH with H option)
• Sensitivity for rated output : Microphone: -52 dBV (2.5 mVrms), Line: -14 dBV (200 mVrms)
• Frequency Response : 60 Hz - 15 kHz +/- 3 dB • Speech Projection out mode (Speech Projection in mode: +10 dB from 1.5k-12 kH
• Mic Inputs : Lo-Z, balanced, phantom powered, XLR
• Line input : Hi-Z, unbalanced, 1/4"-phone
• Line output (post fader) : buffered, 600ohm, 1/4"-phone
• AC power requirements : 110 - 125 VAC, 50/60 Hz, 50W Max, 210 - 240 VAC, 50/60 Hz, 50W Max
• Dimensions (HWD) : 22.5 x 13 x 10" (57 x 33 x 26 cm)
