Anchor Audio XBP6000 BASIC PA Audio Package

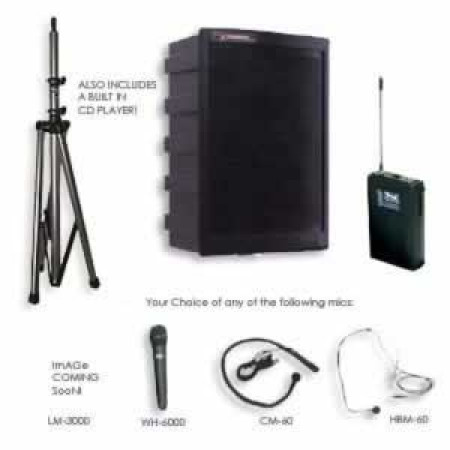

PACKAGE INCLUDES:
• MPA-5600CW1 Liberty-Xtreme. with a built-in CD player and built-in Anchor Wireless UHF with16-user selectable channel.
• SS-550 Speaker stand.
• Choice of wireless mic: handheld mic (WH-6000), headband mic (HBM-60) or lapel mic (LM-6000) or collar mic (CM-60) or WB-6000 body-pack transmitter.

MPA-5600CW1 Liberty-Xtreme:
This AC powered sound system delivers a powerful 123 dB that can reach crowds up to 2,500 people. With the convenience and extended mobility of a built-in CD player, the Xtreme II is great for large indoor and outdoor events such as press conferences, sports venues, graduation ceremonies, musical productions or any other settings needing powerful and clear voice or music amplification.

Technical Specifications:
• Rated power output: Stand-alone w/MP-5601companion
low frequency amp: 90 watts 125 watts
high frequency amp: 40 watts 55 watts
• Max SPL @ rated power: 116 dB music mode, 123 dB project mode
• Frequency response: 80 Hz - 15 kHz
(project mode: +7 dB from 2-12 kHz)
• Bass/Treble control: 8 db cut/boost @ 100 Hz, 8 kHz
• Line input: 1/4" phone, Hi-Z, unbalanced
• Mic input: XLR female, Lo-Z, 12 VDC phantom power
• Balanced input: XLR female, switchable mic/line level
12 VDC phantom power (switchable)
• Sensitivity for rated output:
unbalanced line: -18 dBV (125 mVrms)
balanced mic: -58 dBV (1.25 mVrms)
balanced input:
mic: -58 dBV (1.25 mVrms)
line: -15 dBV (175 mVrms)
• Line output (post fader): XLR male, 600., active balanced
• Speaker Output: 4-pole Neutrik Speakon jack for usewith Anchor MP-5601
• AC power requirements: 110 - 125 VAC, 50/60 Hz, 250 watts max.
210 - 240 VAC, 50/60 Hz, 250 watts max.
(250 watts maximum)
• Dimensions (HWD): 22.5 x 13 x 10", 57 x 33 x 26 cm

SS550 Speaker Stand:
The Anchor Audio SS-550 is a heavy-duty, brushed aluminum speaker stand. It holds up to 75 pounds and is height adjustable from 38 to 79 inches.
Weighing in at just 8 pounds this stand is intended for use with the Xtreme, Liberty, Explorer, Megavox and Voyager PA systems.

Choice of Mics:
WH-6000:
The Anchor Audio WH-6000 UHF wireless handheld mic.
This is a handheld microphone/transmitter with 16 user selectable UHF channels.
For use with a UHF wireless receiver.
HBM-60:
a headband microphone for use with the WB-6400, WB-6000 and WB-II Body Pack Transmitters. Adjustable headband and boom mic with electret mic element. TA4F 4-pin mini-XLR plug.
CM-60
Collar mic, mini phone plug for use with UHF Wireless body-pack transmitter (WB-6000-ANC)
