Anchor Audio XDP6000 DELUXE PA Audio System Pack

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

anchor audio xdp-6000deluxe
PA Xtreme Audio System Package.

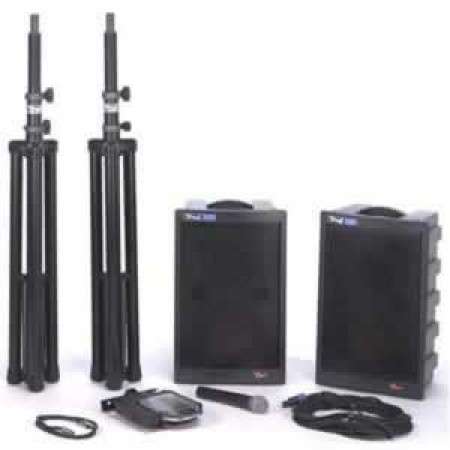

PACKAGE INCLUDES:
• MPA-5600CW1 Liberty-Xtreme with built-in wireless receiver and CD player
• MPA-5601 Liberty-Xtreme companion speaker
• Your choice of a Shure WH-58 handheld wireless transmitter or a bodypack transmitter with a headband mic, lapel mic, or a collar mic.
• 2 SS-550 Speaker Stands.
• EX-101M 100' speaker cable.

MPA-5600CW1 Liberty-Xtreme:
This AC powered sound system delivers a powerful 123 dB that can reach crowds up to 2,500 people. With the convenience and extended mobility of a built-in CD player, the Xtreme II is great for large indoor and outdoor events such as press conferences, sports venues, graduation ceremonies, musical productions or any other settings needing powerful and clear voice or music amplification.

Technical Specifications:
• Rated power output: Stand-alone w/MP-5601companion
low frequency amp: 90 watts 125 watts
high frequency amp: 40 watts 55 watts
• Max SPL @ rated power: 116 dB music mode, 123 dB project mode
• Frequency response: 80 Hz - 15 kHz
(project mode: +7 dB from 2-12 kHz)
• Bass/Treble control: 8 db cut/boost @ 100 Hz, 8 kHz
• Line input: 1/4" phone, Hi-Z, unbalanced
• Mic input: XLR female, Lo-Z, 12 VDC phantom power
• Balanced input: XLR female, switchable mic/line level
12 VDC phantom power (switchable)
• Sensitivity for rated output:
unbalanced line: -18 dBV (125 mVrms)
balanced mic: -58 dBV (1.25 mVrms)
balanced input:
mic: -58 dBV (1.25 mVrms)
line: -15 dBV (175 mVrms)
• Line output (post fader): XLR male, 600., active balanced
• Speaker Output: 4-pole Neutrik Speakon jack for usewith Anchor MP-5601
• AC power requirements: 110 - 125 VAC, 50/60 Hz, 250 watts max.
210 - 240 VAC, 50/60 Hz, 250 watts max.
(250 watts maximum)
• Dimensions (HWD): 22.5 x 13 x 10", 57 x 33 x 26 cm

MPA-5601:
This AC powered sound system delivers a powerful 123 dB that can reach crowds up to 2,500 people. With the convenience and extended mobility of a built-in CD player, the Xtreme II is great for large indoor and outdoor events such as press conferences, sports venues, graduation ceremonies, musical productions or any other settings needing powerful and clear voice or music amplification.

Technical Specifications:
• Rated power output: Stand-alone w/MP-5601companion
• low frequency amp: 90 watts 125 watts
• high frequency amp: 40 watts 55 watts
• Max SPL @ rated power: 116 dB music mode, 123 dB project mode
• Frequency response: 80 Hz - 15 kHz
(project mode: +7 dB from 2-12 kHz)
• Bass/Treble control: 8 db cut/boost @ 100 Hz, 8 kHz
• Line input: 1/4" phone, Hi-Z, unbalanced
• Mic input: XLR female, Lo-Z, 12 VDC phantom power
• Balanced input: XLR female, switchable mic/line level
12 VDC phantom power (switchable)
• Sensitivity for rated output:
unbalanced line: -18 dBV (125 mVrms)
balanced mic: -58 dBV (1.25 mVrms)
balanced input:
mic: -58 dBV (1.25 mVrms)
line: -15 dBV (175 mVrms)
• Line output (post fader): XLR male, 600., active balanced
• Speaker Output: 4-pole Neutrik Speakon jack for use
with Anchor MP-5601
• AC power requirements: 110 - 125 VAC, 50/60 Hz, 250 watts max.
210 - 240 VAC, 50/60 Hz, 250 watts max.
(250 watts maximum)
• Dimensions (HWD): 22.5 x 13 x 10", 57 x 33 x 26 cm
• Weight: 35 pounds, 16 Kg.
• Specifications subject to change without notice.

WH-58:
