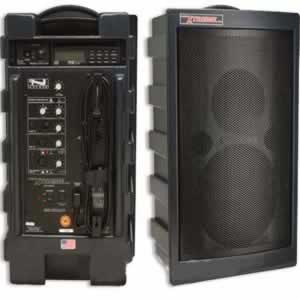

Anchor Audio XTR 6000 CU1 PA Audio System

FEATURES:
• Rated power output.
• Stand-alone: 130 watts w/XTR-6001: 200 watts.
Max SPL @ rated power.
• Projection mode: 123 dB
• Music mode: 116 dB Frequency response
• Music mode 80 Hz - 15 kHz
• Projection mode: +7 dB from 2 - 12 kHz
• Bass/Treble control: 8 db cut/boost @ 100 Hz, 8 kHz
• Line input: 1/4" phone, Hi-Z, unbalanced
• Mic input: XLR female, Lo-Z, 12 VDC phantom power
• Balanced input: XLR female, switchable mic/line level
• 12 VDC phantom power (switchable)
• Sensitivity for rated output
Unbalanced line: -18 dBV (125 mVrms)
Balanced mic: -58 dBV (1.25 mVrms)
Balanced input - mic: -58 dBV (1.25 mVrms)
Balanced input - line: -15 dBV (175 mVrms)
Line output (post fader): XLR male, 600?, active balanced
Speaker Output: 4-pole Neutrik Speakon jack for XTR-6001
• AC power requirements: 110 - 125Vac, 50/60 Hz, 250W Max 210 - 240Vac, 50/60 Hz, 250W Max
