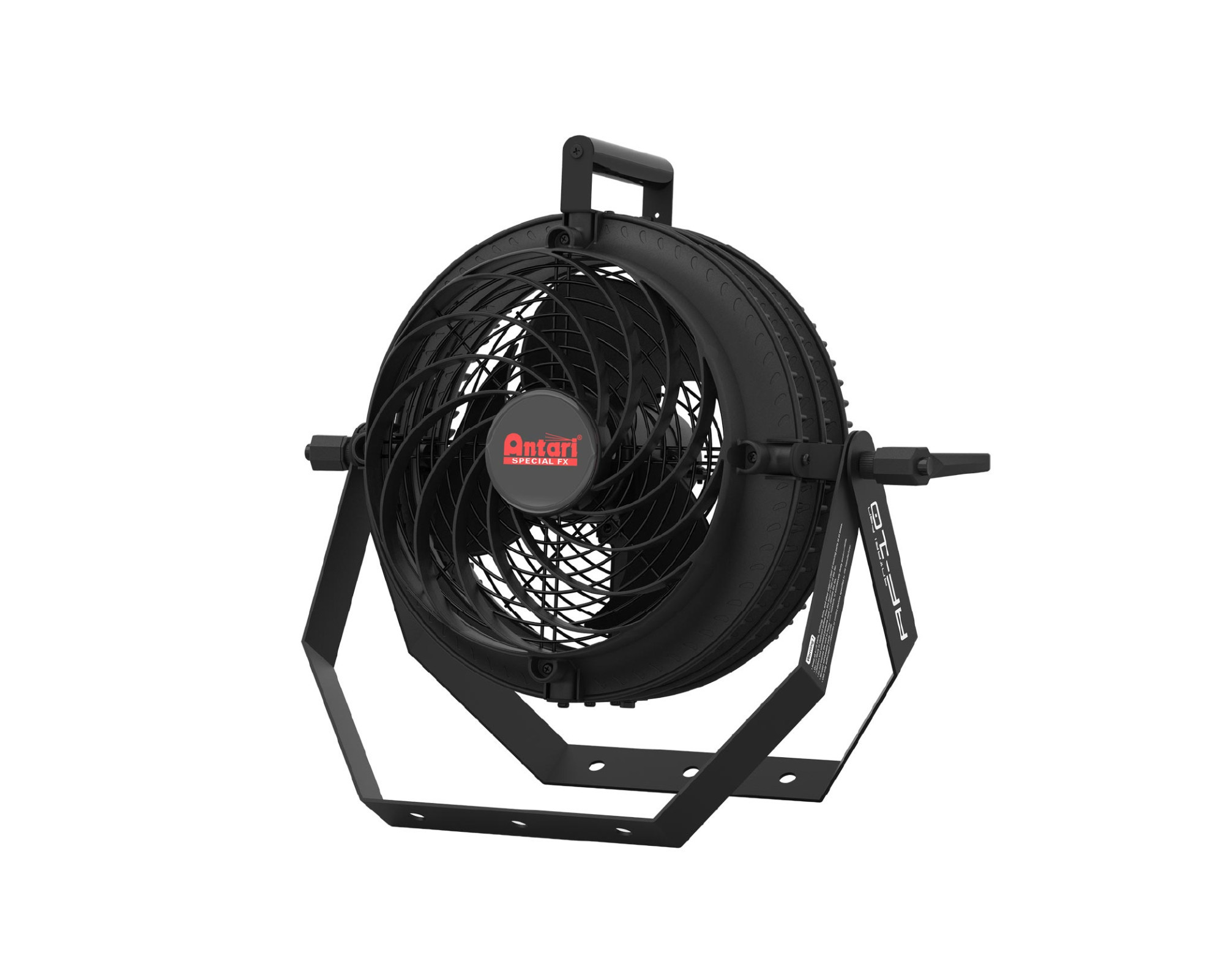

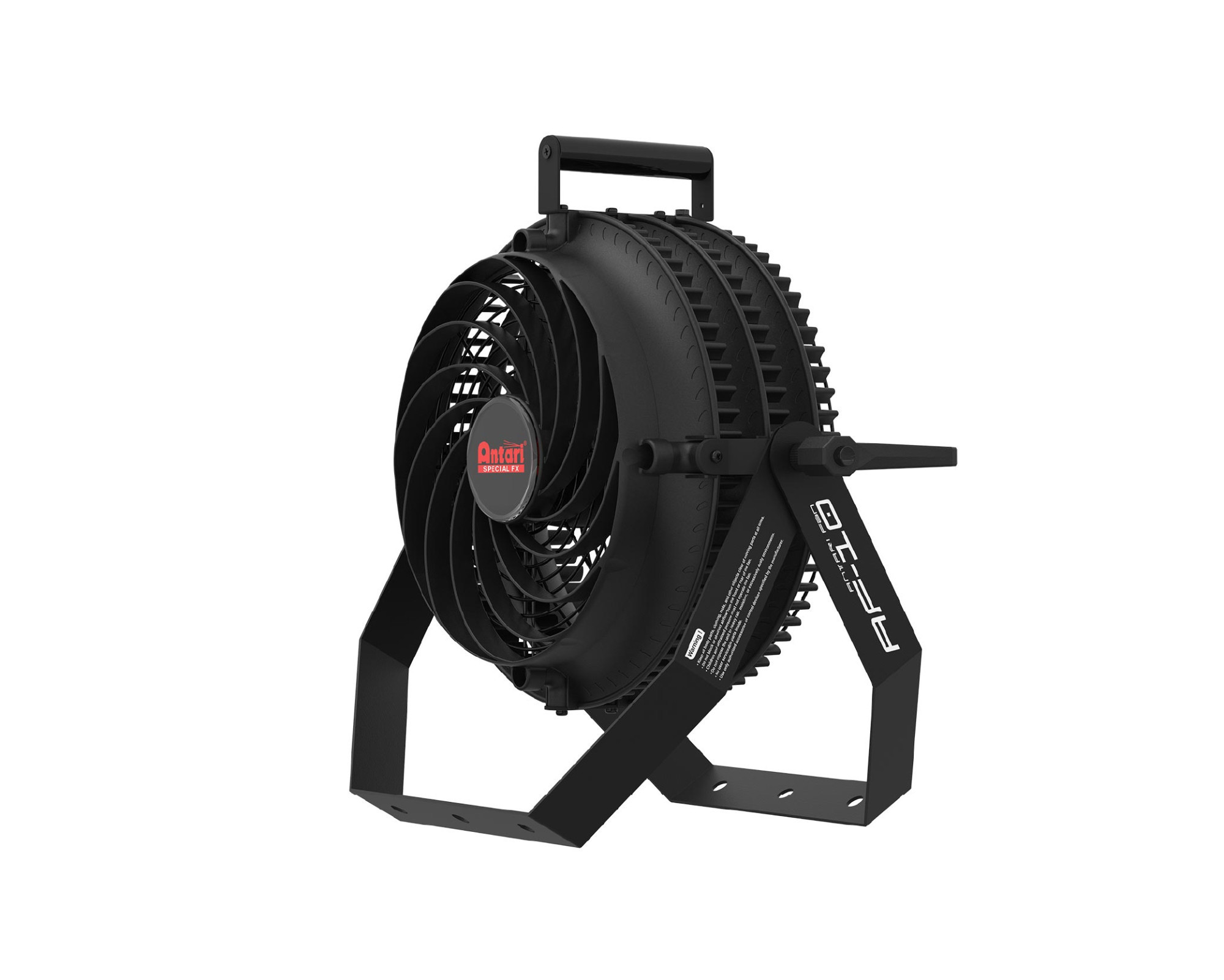

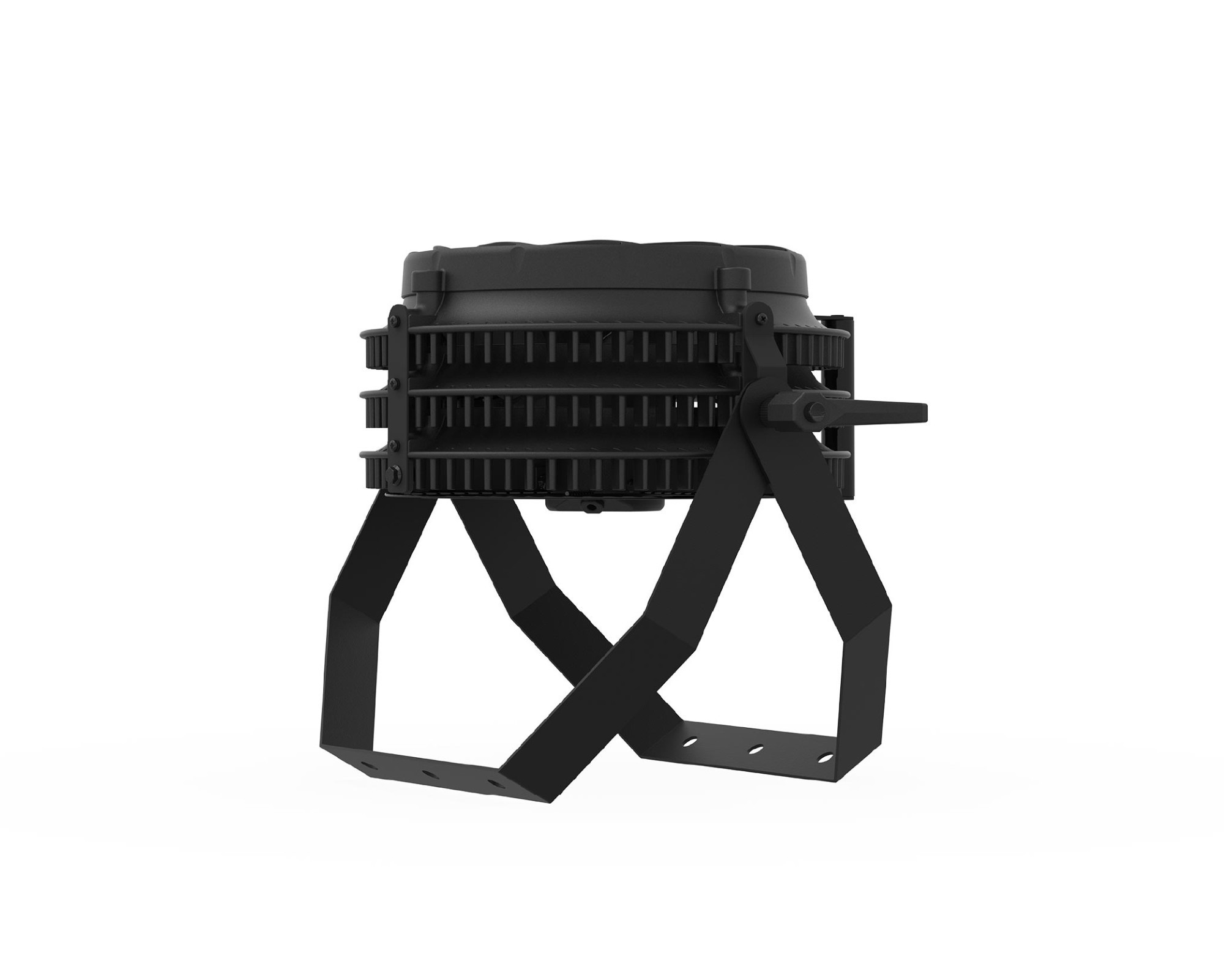

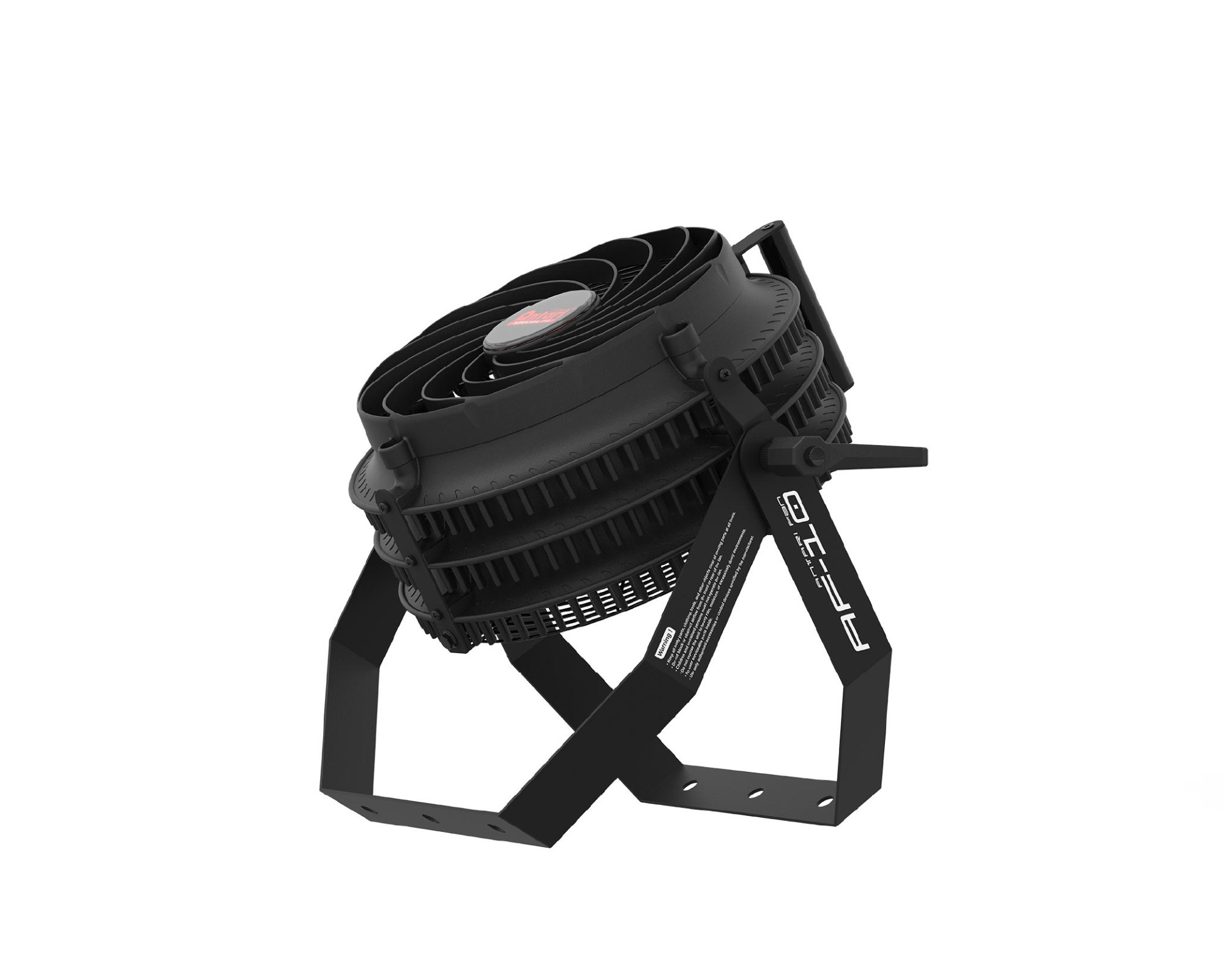

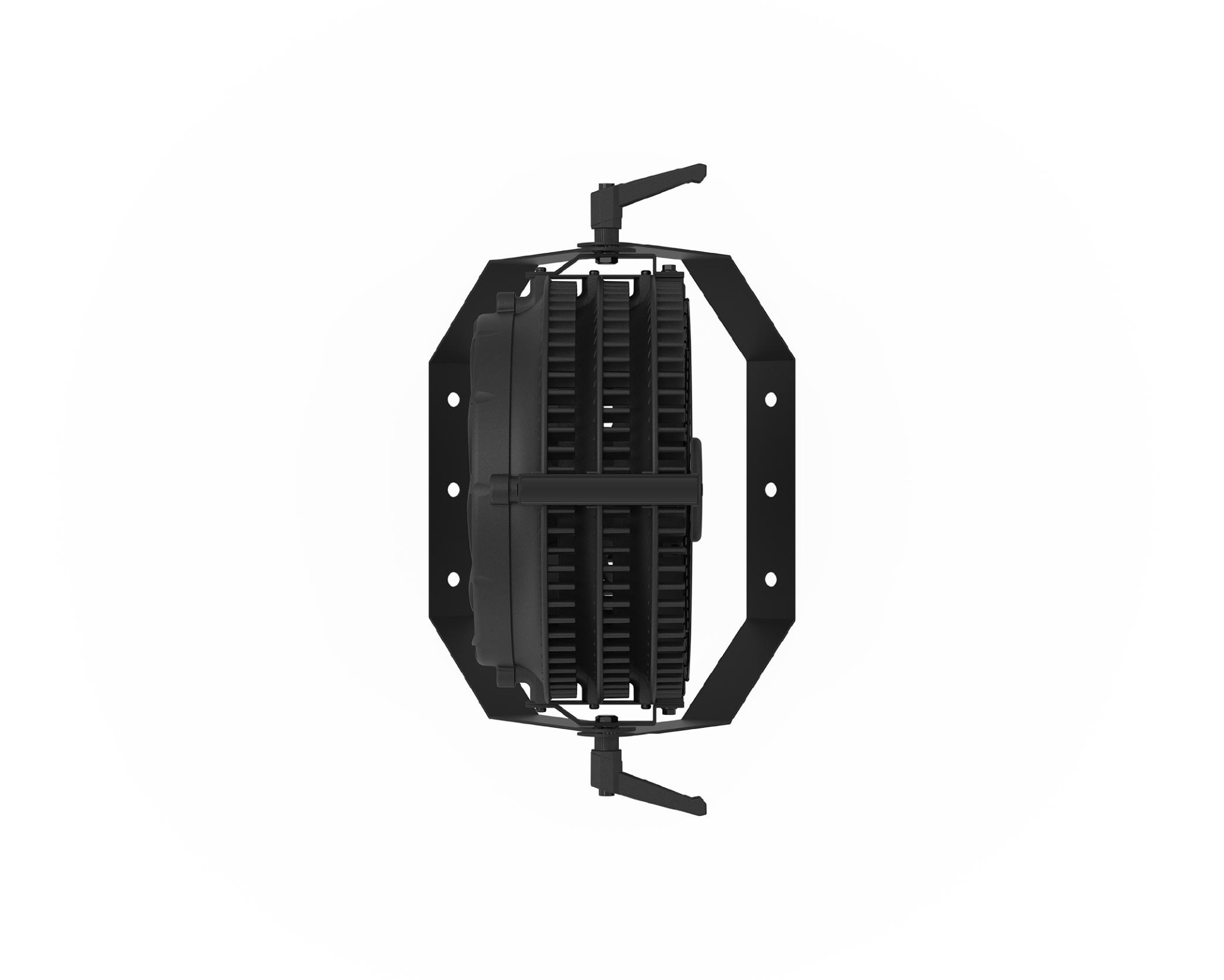

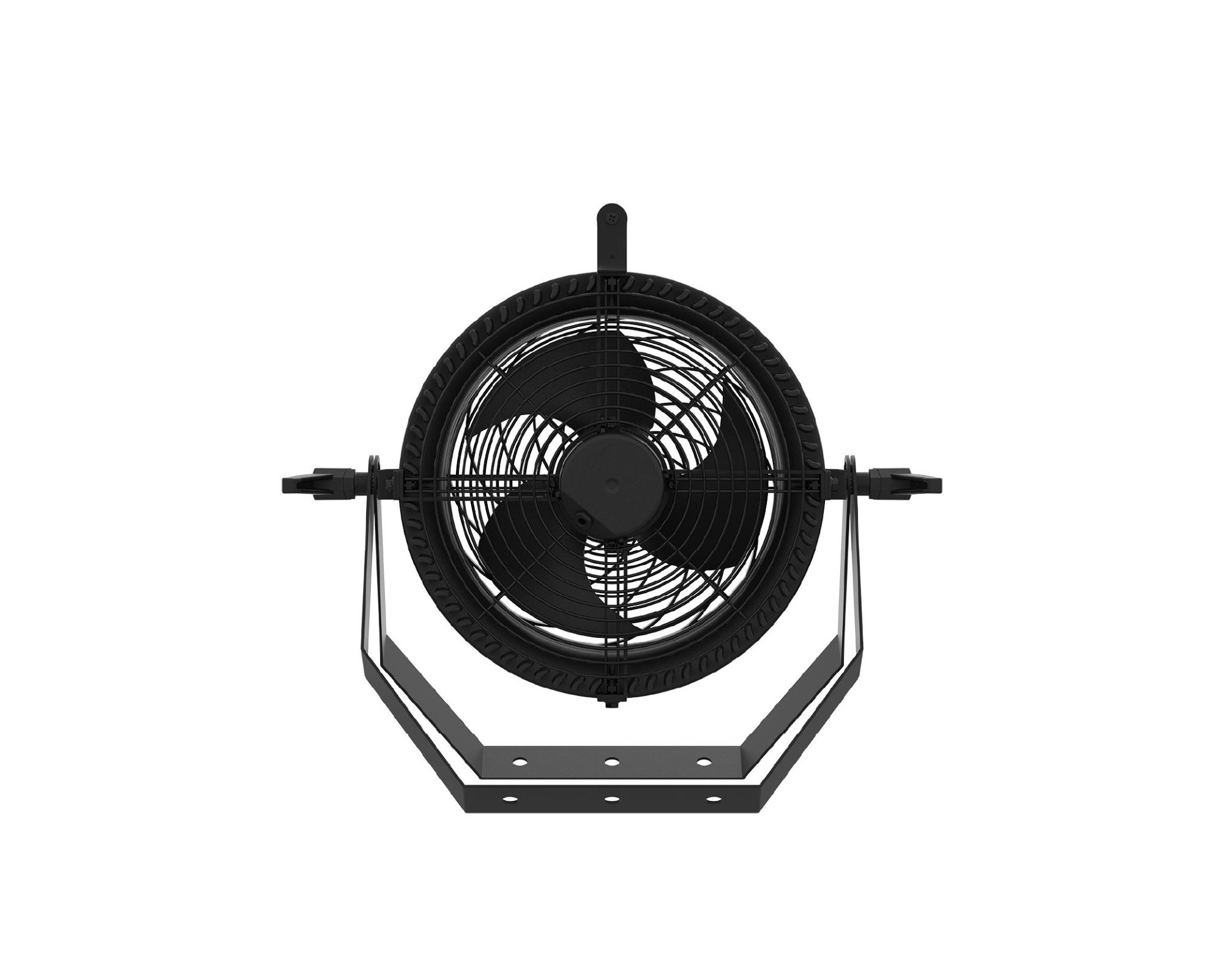

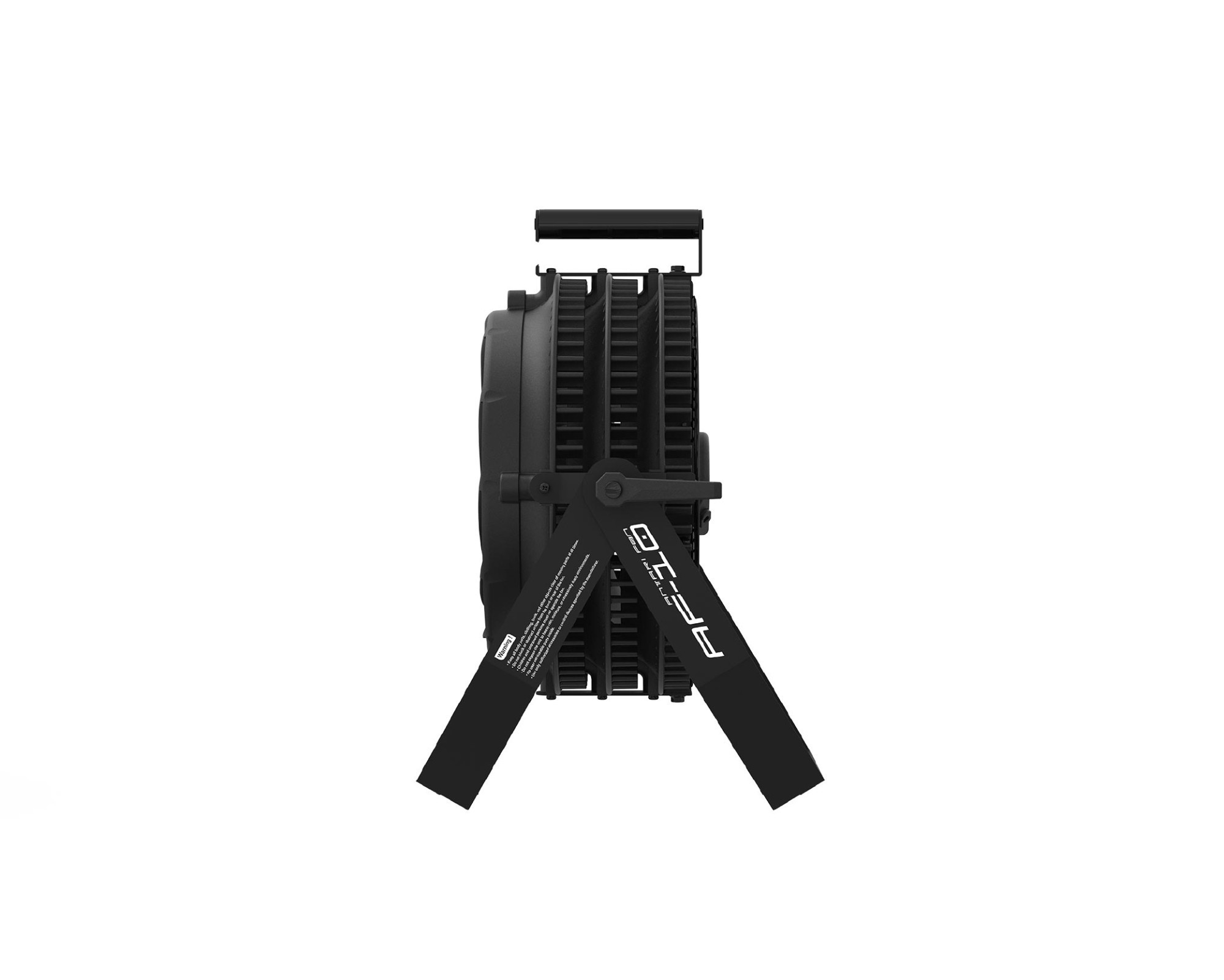

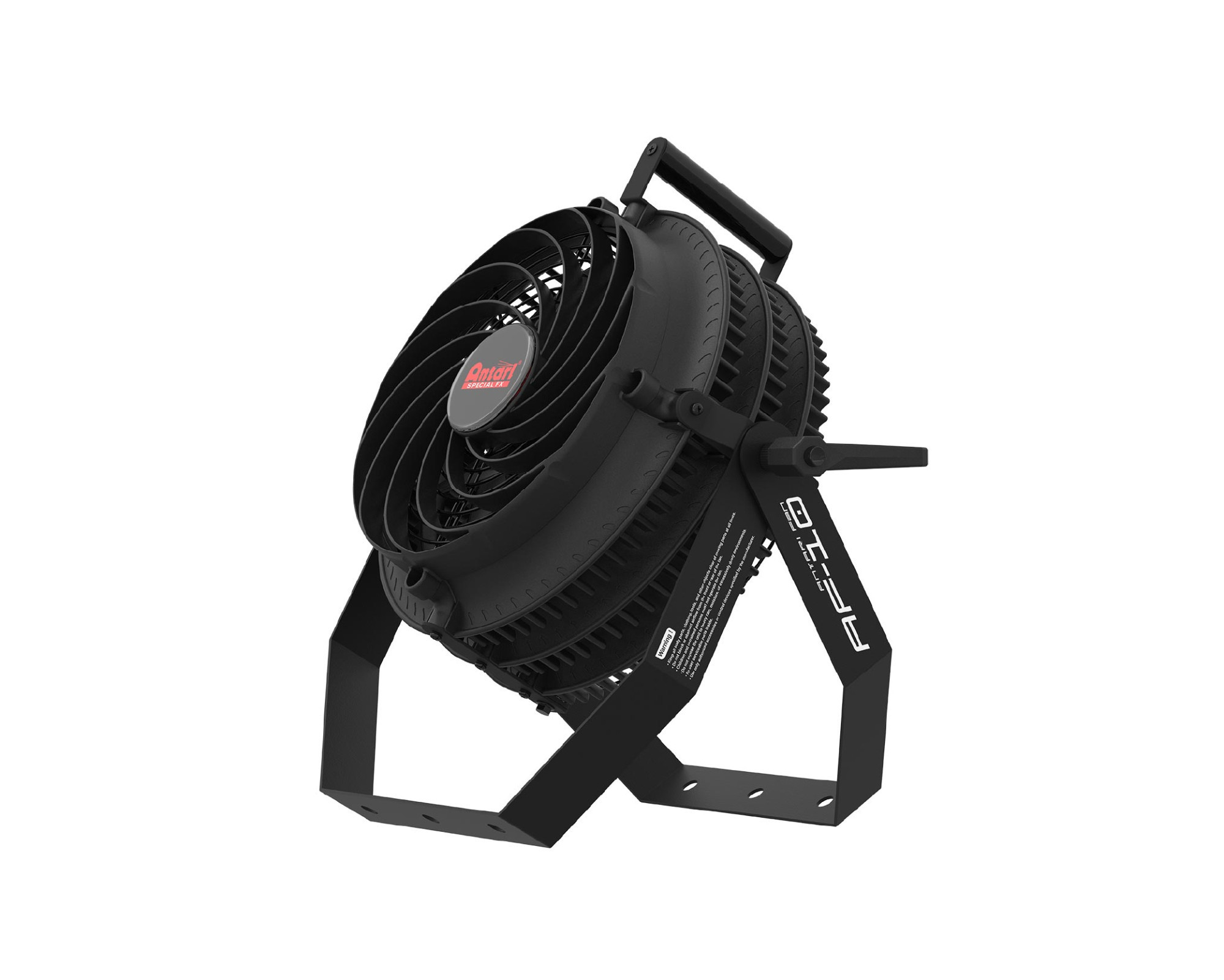

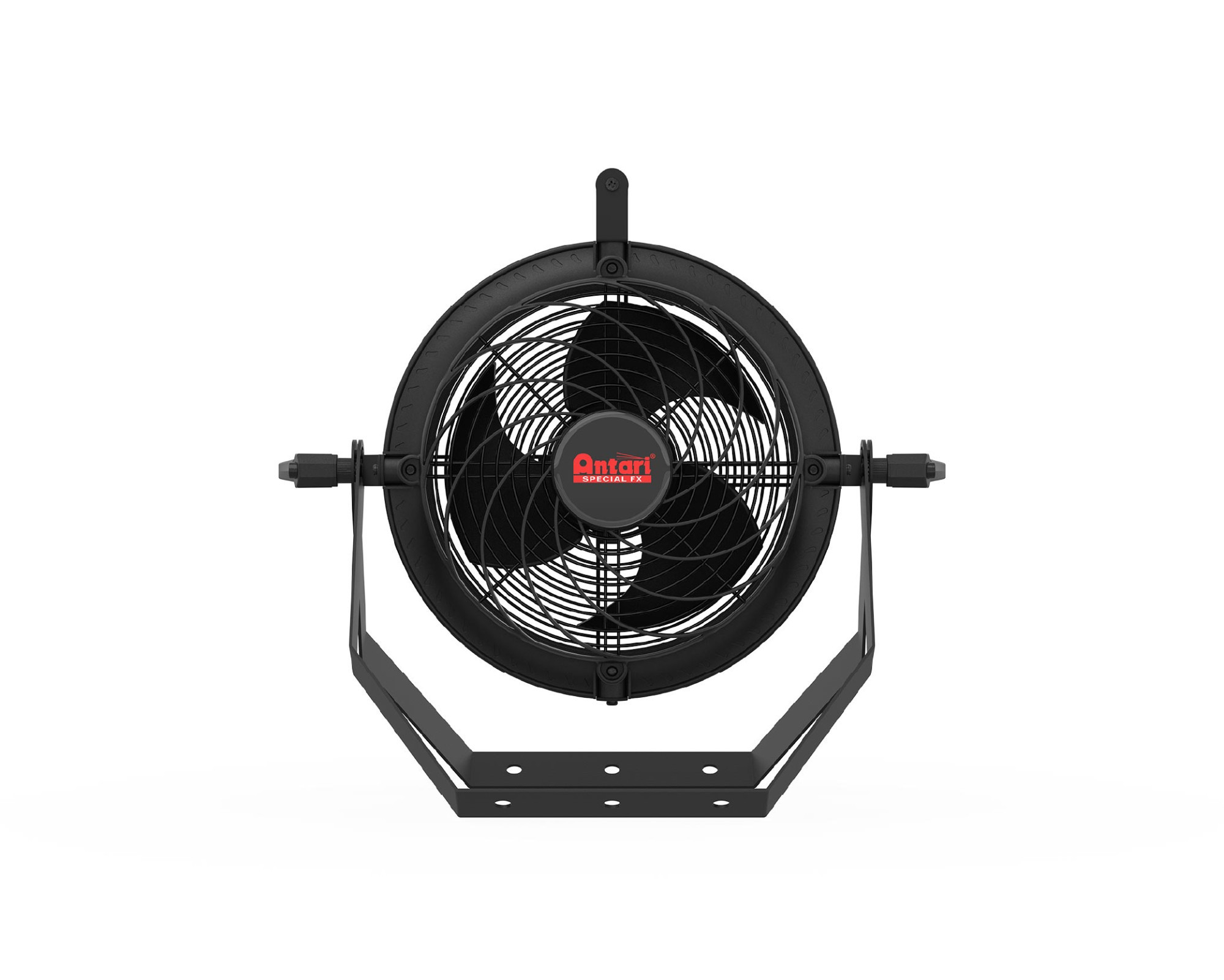

The Antari AF-10 is a high-velocity fan engineered for professional use, combining power, precision, and durability. Featuring a unique swirl-shaped front cover, they maintain focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades ensure optimal air distribution with minimal sound, making them ideal for stage, studio, and installation environments.
Built with robust materials for reliable performance,can operate with a simple plug to start or integrate with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-10 delivers efficient, quiet, and consistent airflow in demanding applications.
• High-Velocity Airflow
• Swirl-Shaped Front Cover
• Low Noise Operation
• Robust Constrcution
• IP55 Rated Motor
Input Voltage: AC 100 120V, 50 / 60 Hz 0.5A
Rated Power: 120V 60W
Ambient Temp. Range: 0C 40C (32F 104F)
Air Flow: 1913 CFM (60Hz)
Fan Speed: 164040RPM
Noise Level: 51.0 dB (Max. Output)
Control Methods: Manual, Timer, DMX512, Wireless (Optional), Wireless DMX (Optional)
DMX Channels: 1 Channel
Interface: SEETRONIC IP65 Connector (Power), SEETRONIC IP65 XLR 5-Pin Connector (DMX)
Included Accessories: Dual Use Bracket, AFC-1 Fan Control
Optional Accessories: WTR-110 Wireless Module, ES-W-DMX Wireless DMX
Dimension: L12.84" W21.07" 19.18"
Weight: 18.08 lbs
