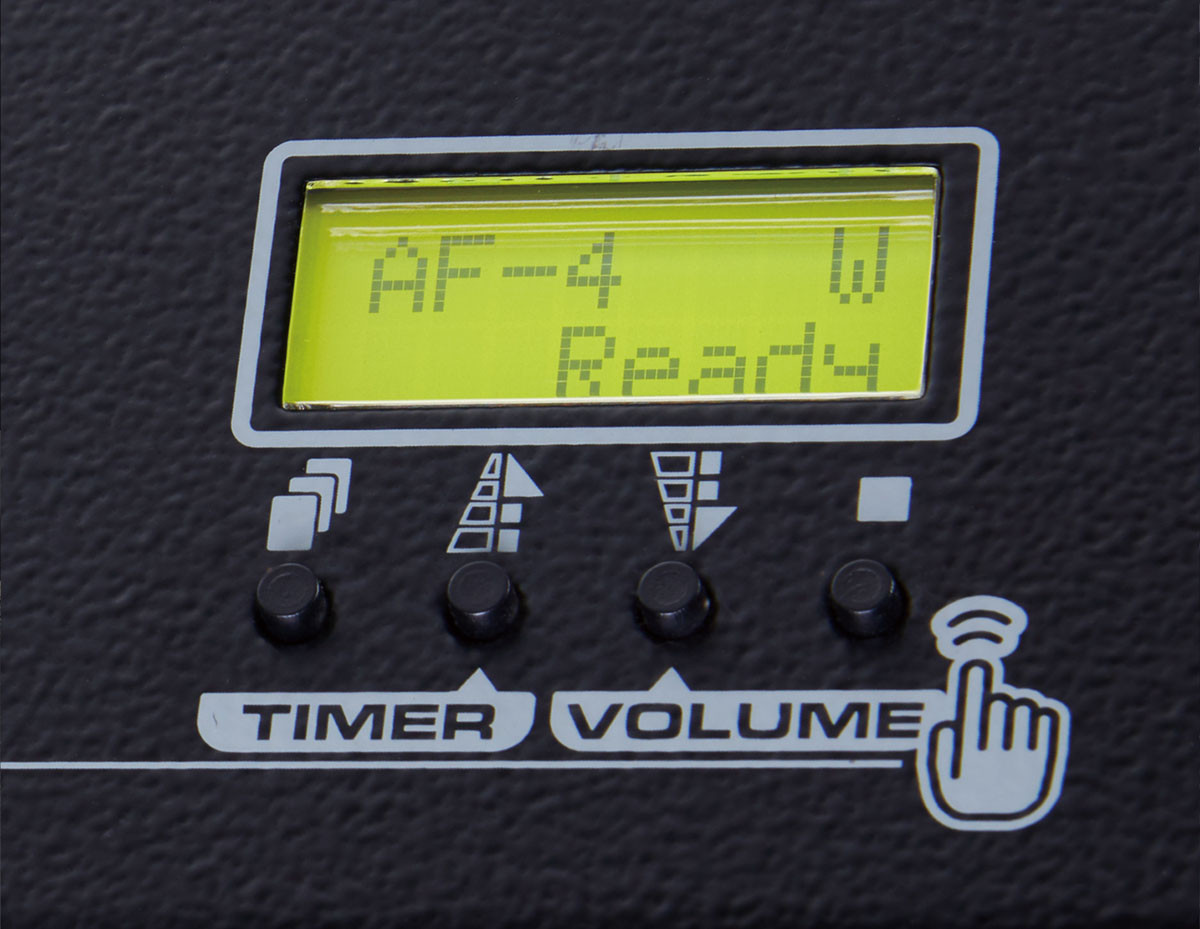

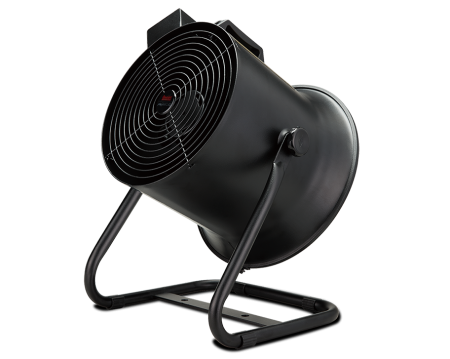

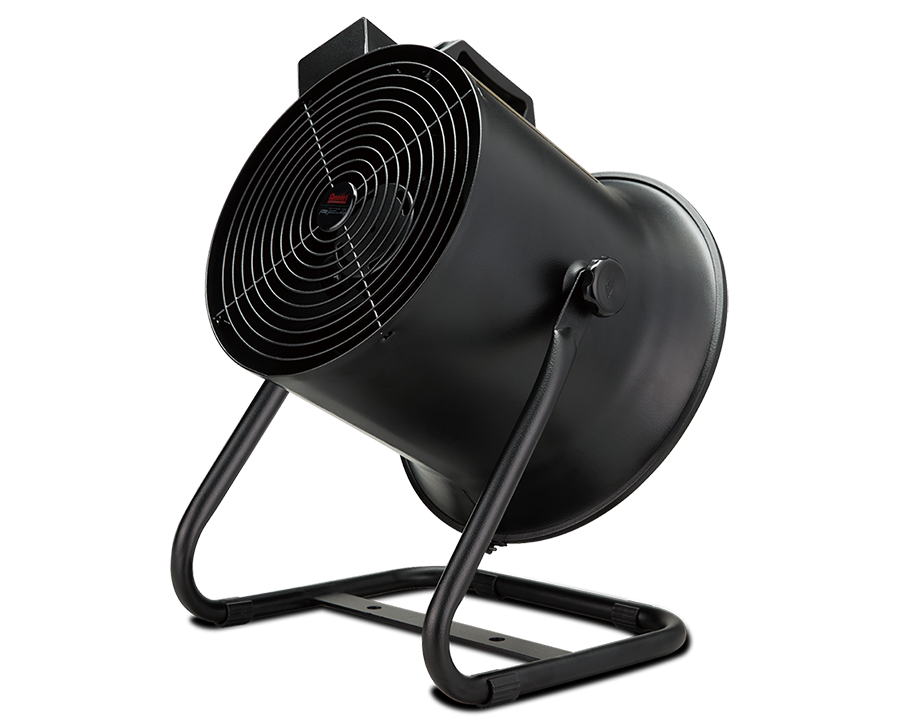

AF-4 special effect fan focusing its flow of air in the centre, produce smooth wind effect up to 20 meters. Suitable for wide variety of applications on stage, theatre, cinema, tours and much more. With a digital control interface allowing user to easily make setting and adjustments. Comprehensive control option include DMX, Timer, Wireless and Manual.
Features• Effective distance up to 20M
• Low noise level
• Onboard DMX
• Adjustable wind volume from 20100%
• Manual, Timer and Wireless control
SpecificationsInput voltage
US model : AC 100-120V, 50/60Hz 0.85A
EU model : AC 220-240V, 50/60Hz 0.42A
Rated power
100W
Ambient temp/ range
0C 40C (32F 104F)
Air flow
1187 CFM (AC 110V / 60 Hz)
1035 CFM (AC 220V / 60 Hz)
Fan speed
1242 1480 rpm (AC 110V / 60Hz)
1175 1289 rpm (AC 220V / 60Hz)
Control
Manual, Timer, DMX 512
Wireless (Optional)
DMX channels
1 channel

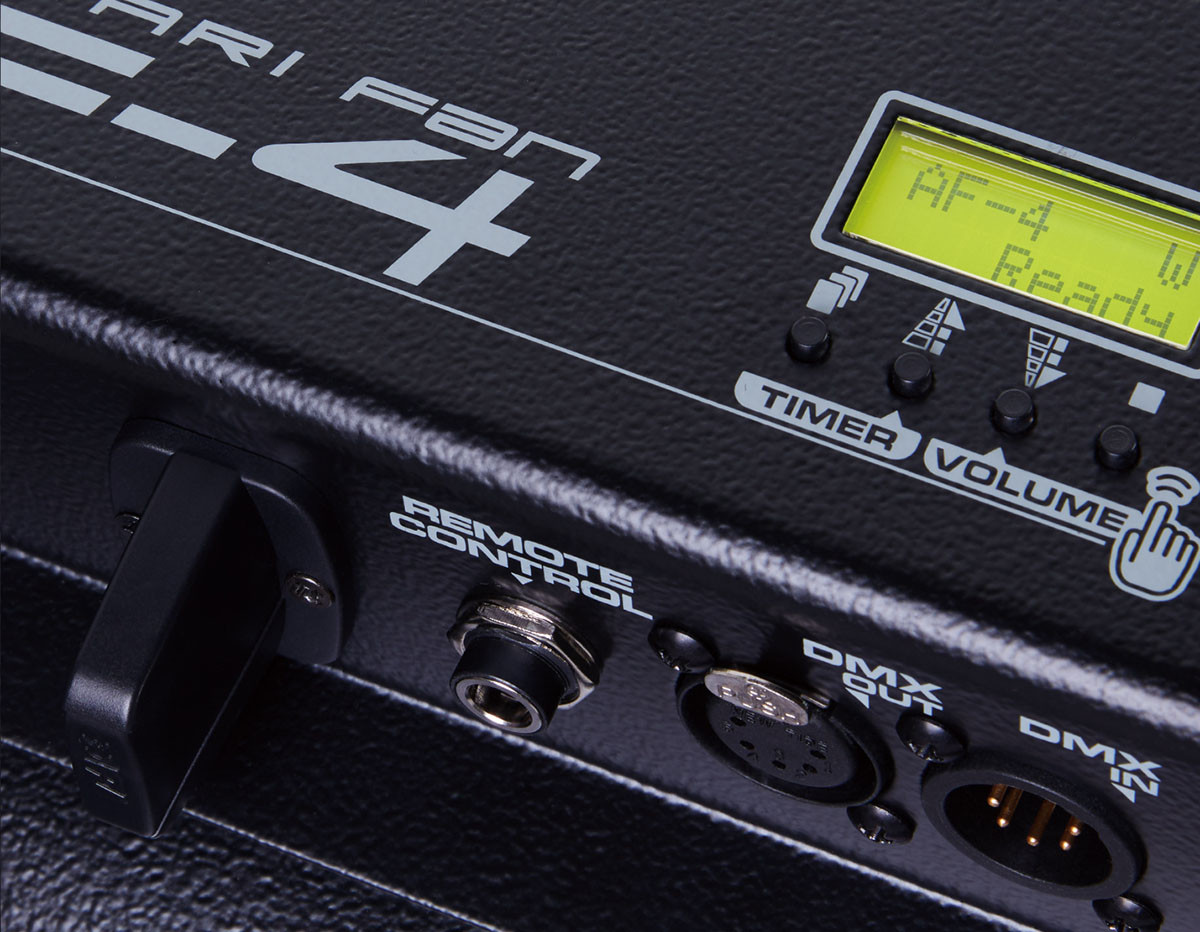

Connection
XLR 5-pin (DMX)
Optional accessories
WTR-20 Wireless Remote (AF- 4R)
Z-3 Cable Remote
DimensionS
L 353 W 377 H 517 mm
(L 13.90 W 14.84 H 20.35 inch)
Weight9 kg (19.84 lbs)
