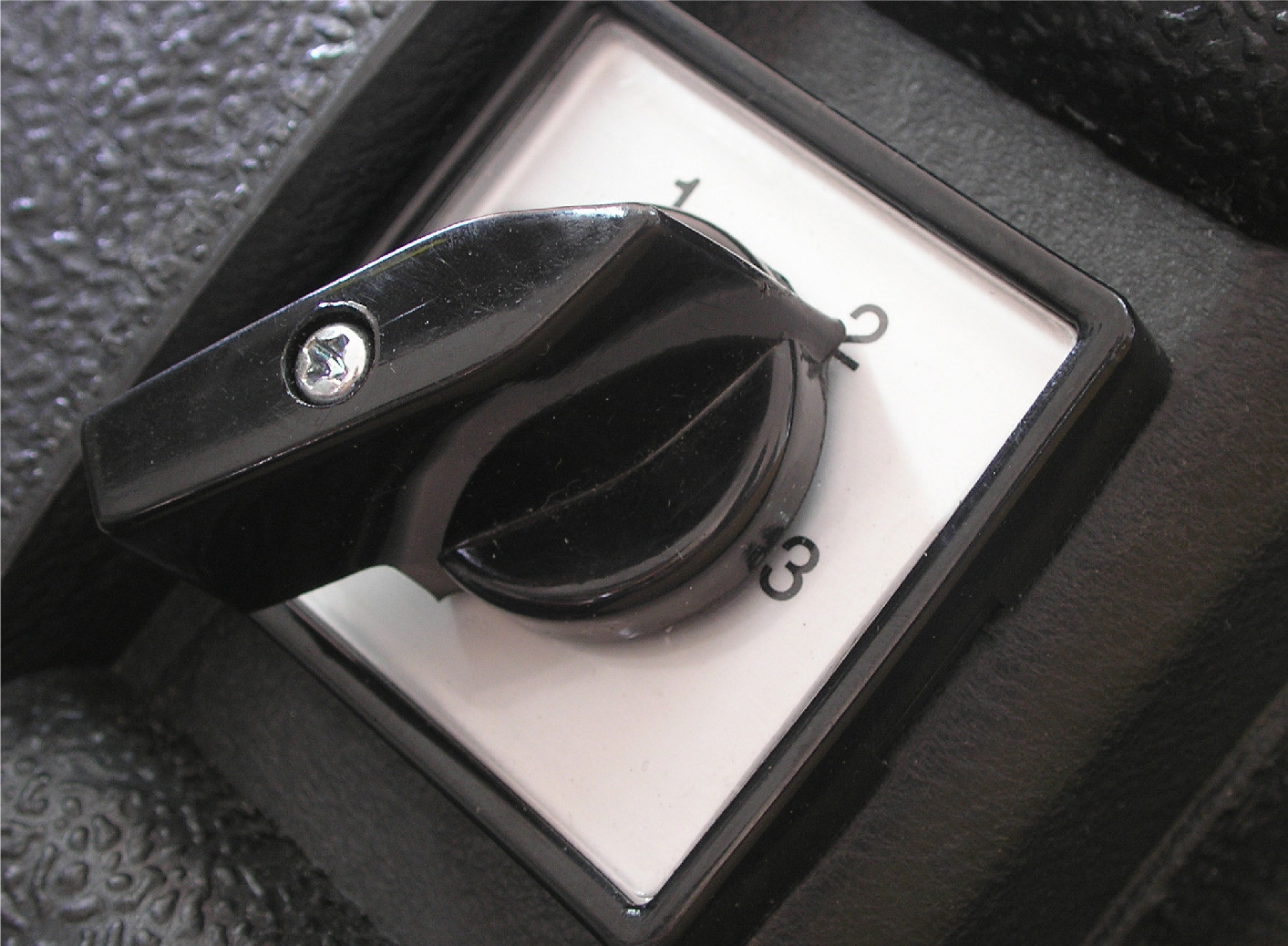

AF-5X is a special effect fan with 3 speed setting to fulfill different wind effect requirement. It provides wind effects when using by itself, it also can work with other effect machine such as fog, haze, snow and bubble to increase the coverage.
Features• Extra foot stand design allows the wind to blow in two directions when placing on the floor. With optional hanging bracket offers other possibilities for installation requirements.

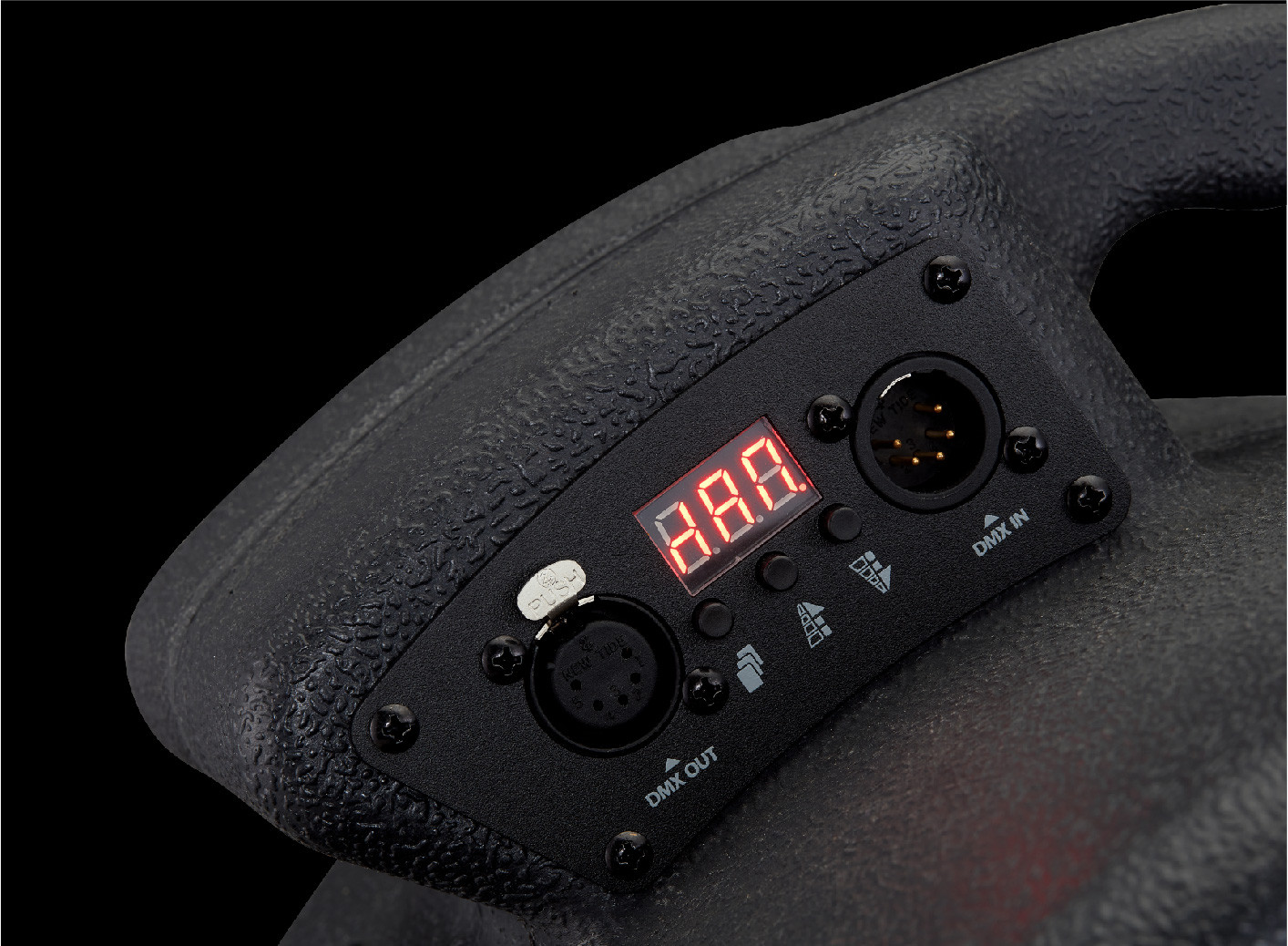

• Stand-alone, On-board DMX and optional wireless control satisfy different control requirements.
SpecificationsInput voltage
US model : AC 100-120V, 50/60Hz 13A
EU model : AC 220-240V, 50/60Hz 7.25A
Rated power
1600W
Ambient temp/ range
0C 40C (32F 104F)
Air flow
1743 CFM (High)
1567 CFM (Medium)
1351 CFM (Low)
Fan speed
1242 1480 rpm (AC 110V / 60Hz)
1175 1289 rpm (AC 220V / 60Hz)
Housing Material
Flame Retardant Plastic (PE 9731)
Control
Manual, Timer, DMX 512
Wireless (Optional)
DMX channels
1 channel
Connection
XLR 5-pin (DMX)
Optional accessories
WTR-10 Wireless Remote (For AF-5XR Only)
AF-5-HB Hanging Bracket
Dimensions
L 558 W 465 H 578 mm
(L 21.97 W 18.31 H 22.76 inch)
Weight
17.5 kg (38.58 lbs)
