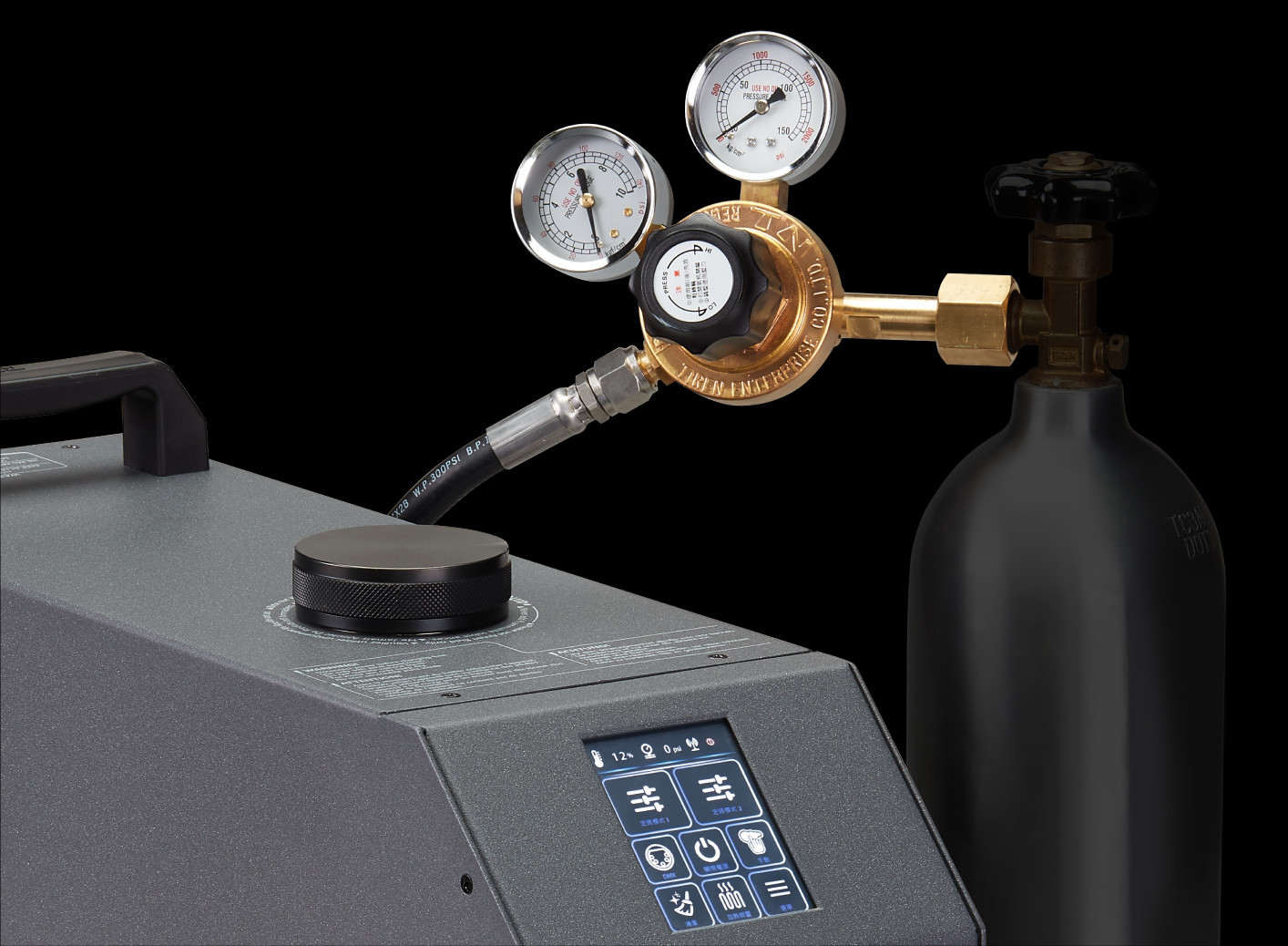

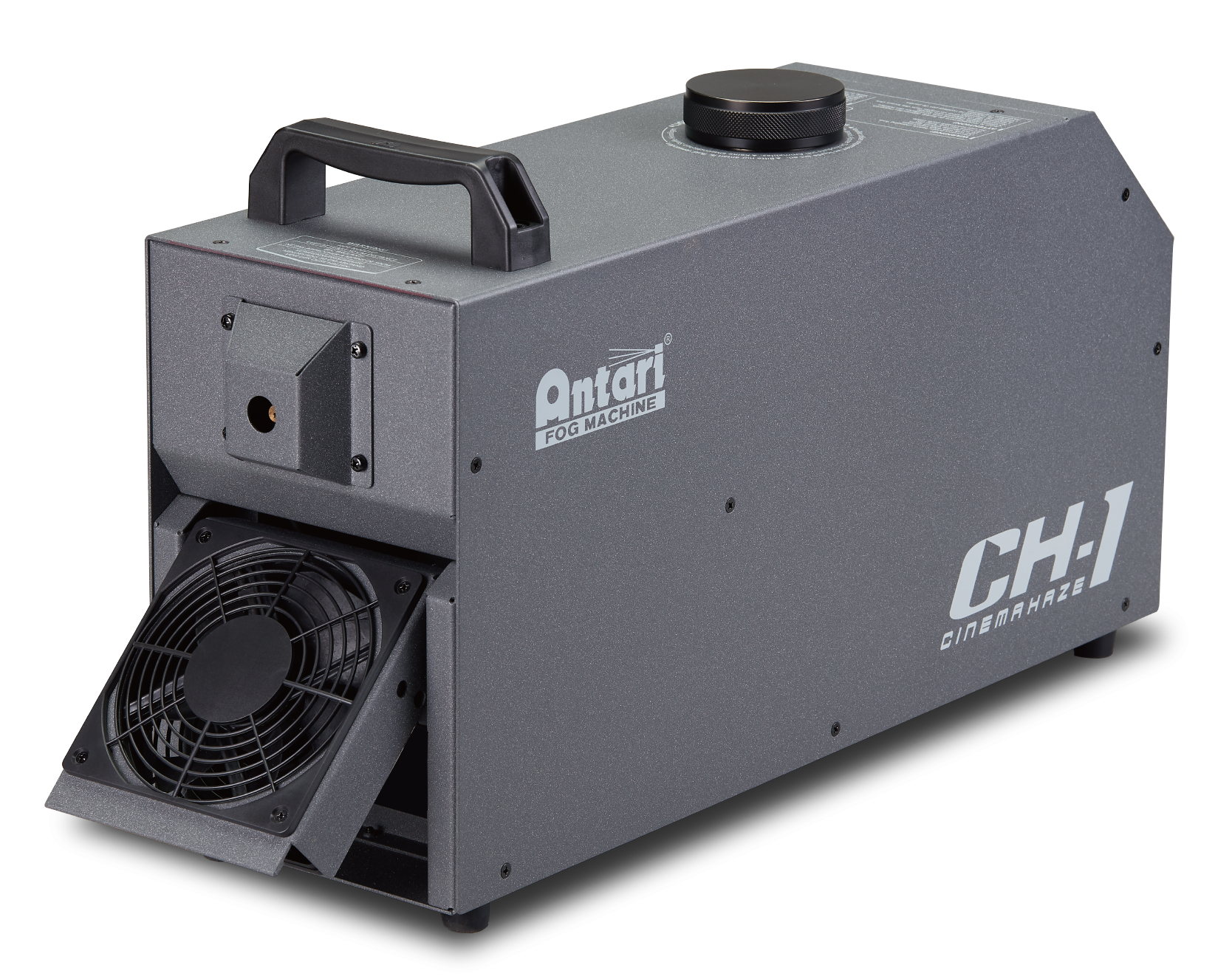

The CO2 model produces high volume of fine haze smoothly with little working sound , Comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation, Connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time.
This unit is designed to work with Antari CHL-2 Haze Fluid. Using a fluid other than what is recommended for this machine may void the manufacturer's warranty. See the owner's manual or warranty details for more information.
The CH-1D is Actor's Equity Approved, meaning it has been approved for use on Broadway and in TV/Film productions that require Actors Equity Approval.
Features• Long hanging time
• Little working sound
• Low fluid consumption
• Ease operation by using color touch panel

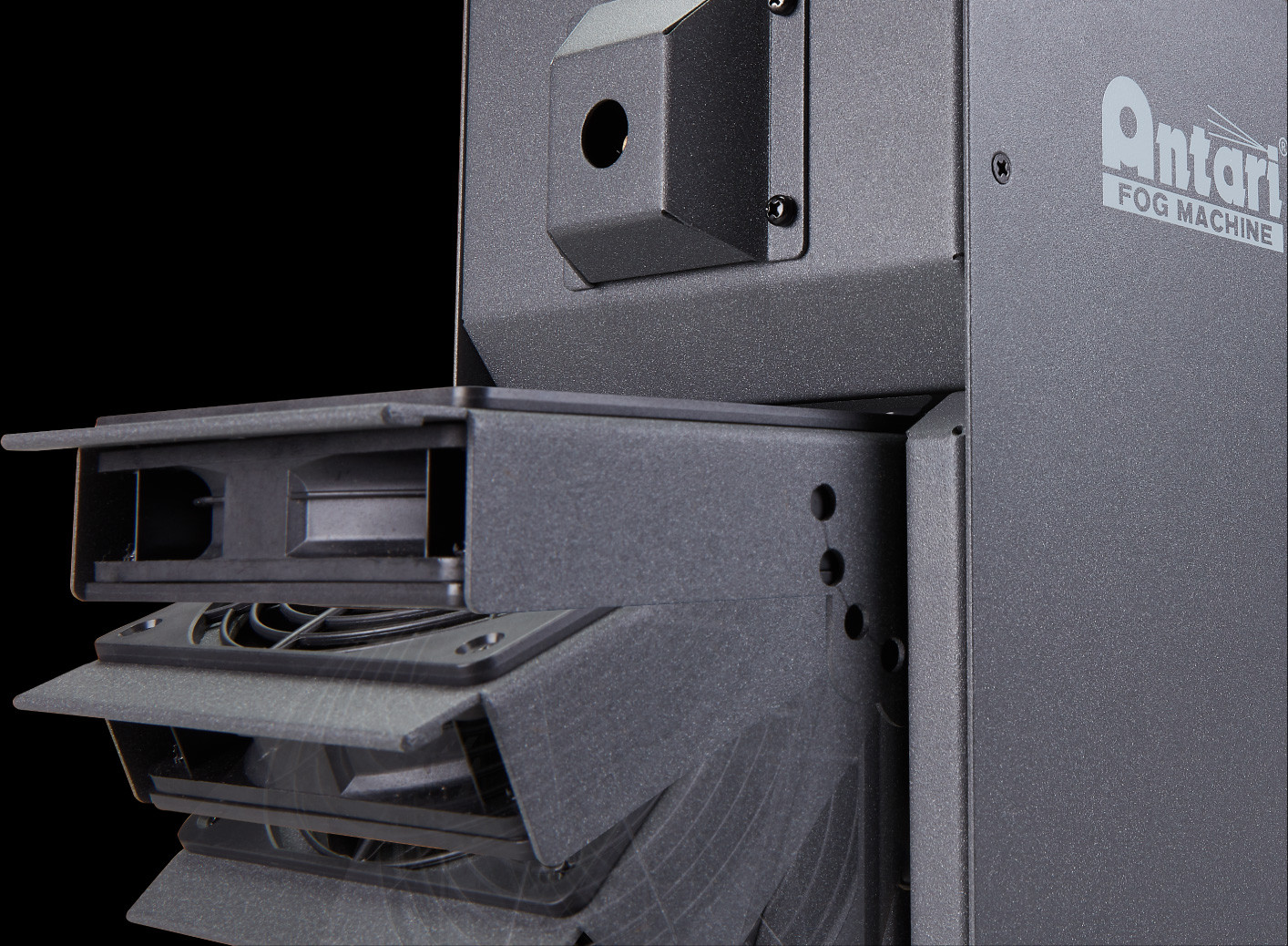

• Adjustable fan
SpecificationsInput voltage
AC 100-240V, 50/60HZ 6A
Rated power
120V 700W
240V 1250W
Warm-up time
8 minutes (approx)
Fluid consumption
2 ml/min @40 psi / 2.76 bar
Fluid tank capacity
2.5 Liters (0.66 gallon)
Compatible fluid
Antari CHL-2 Haze Fluid
Gas type
CO2 , N2
Gas pressure range
50 60psi / 3.4 bar 4.1bar
Gas consumption
0.36 Kg / hr @ 40 psi
0.18 Kg / hr @ 20psi
Control interface
TFT LCD Touch Screen
Ambient temp/ range
0C 40C (32F 104F)
Control
Manual , Timer , DMX 512
Wireless DMX (Optional)
DMX channels
1 / 3 / 5 Channels

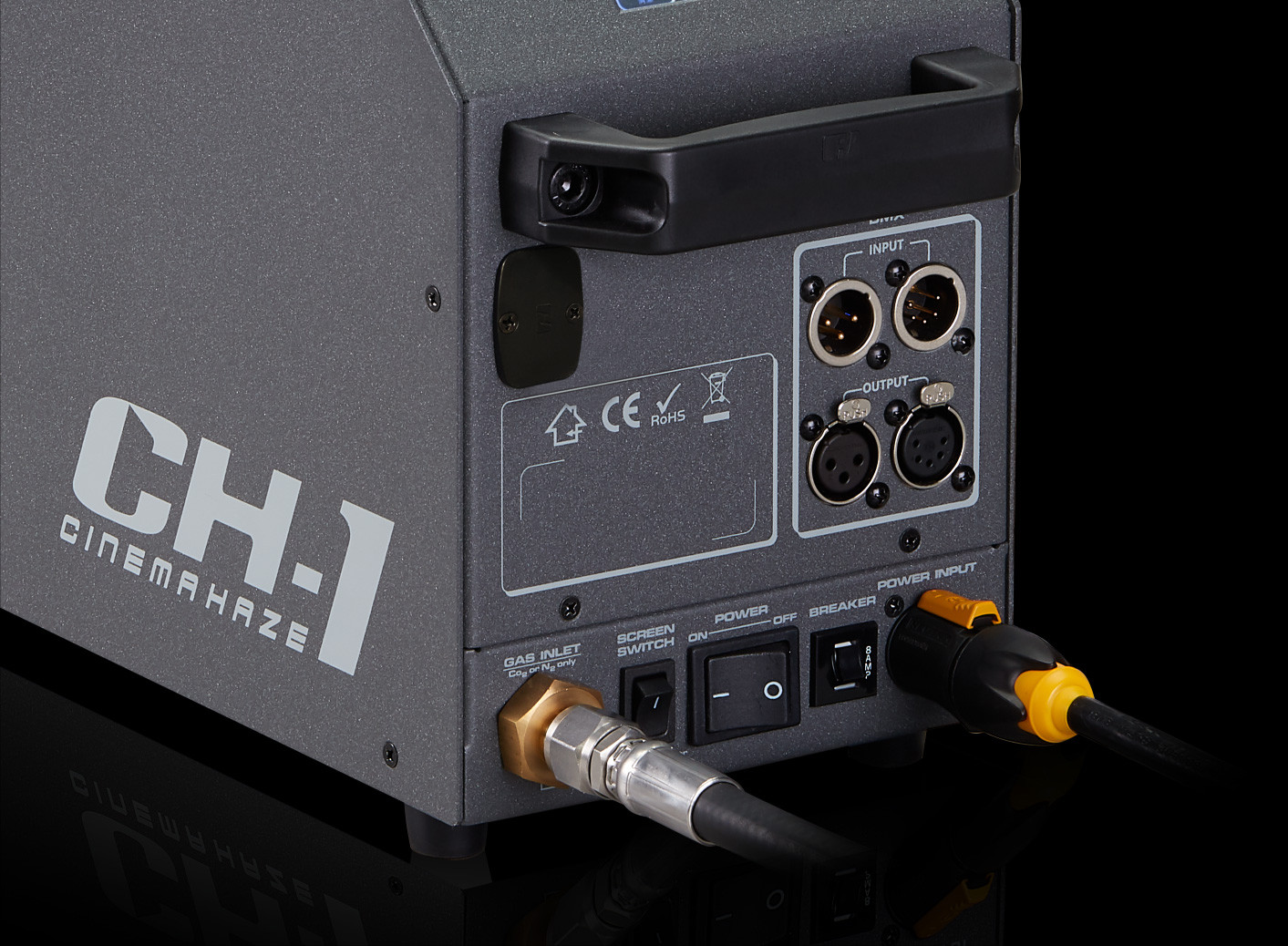

Connection
Neutirk TRUE 1 Connector (Power)
XLR 3-pin and 5-pin (DMX)
9/16 -18 R.H (Gas inlet)
Optional Accessories
W-DMX-PCBR
FCH-1 Flight Case
Dimensions
L 579 W 164 H 311 mm
(L 22.79 W 6.46 H 12.25 inch)
Weight17 kg (37.48 lbs)
