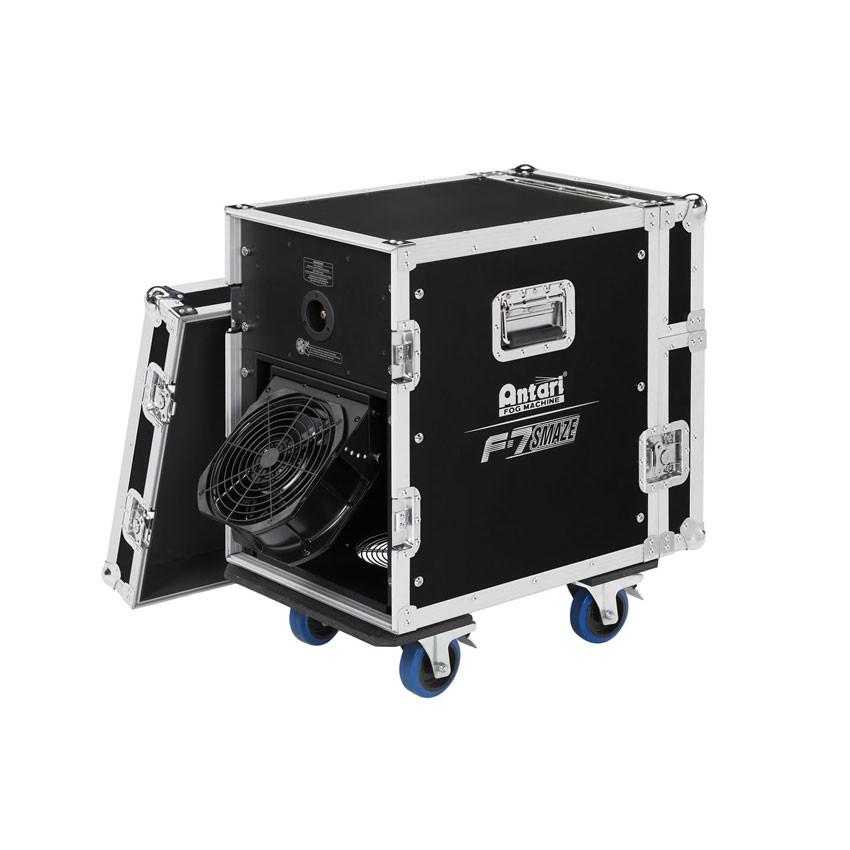

The Antari F-7 SMAZE' is the ultimate all-in-one hybrid large venue touring atmospheric effect machine housed in an easily transported road case. Switchable Fog and Faze modes combined with the built-in adjustable AF-3' fan, the Antari F-7 SMAZE' is capable of producing fast and powerful arena size fog or a thin layer haze effects to fill most venues in just minutes.
Features include Antari's latest air pump technology which produces an extremely fine dry haze as well as enabling a self-cleaning feature not found on other fog or haze machines, built-in AF-3' fan with DMX controlled velocity and manual positioning to 9 different preset points providing easy direction of the fog and haze output, versatile control options such as an on-board digital control display, 3/5pin DMX in/out, Wireless DMX, a built-in electronic timer for stand alone usage, extra large storage area for (2) 5-liter fluid containers, and all housed in a durable road-case.
• All-in-One Fog & Faze Hybrid Atmospheric Effects Machine

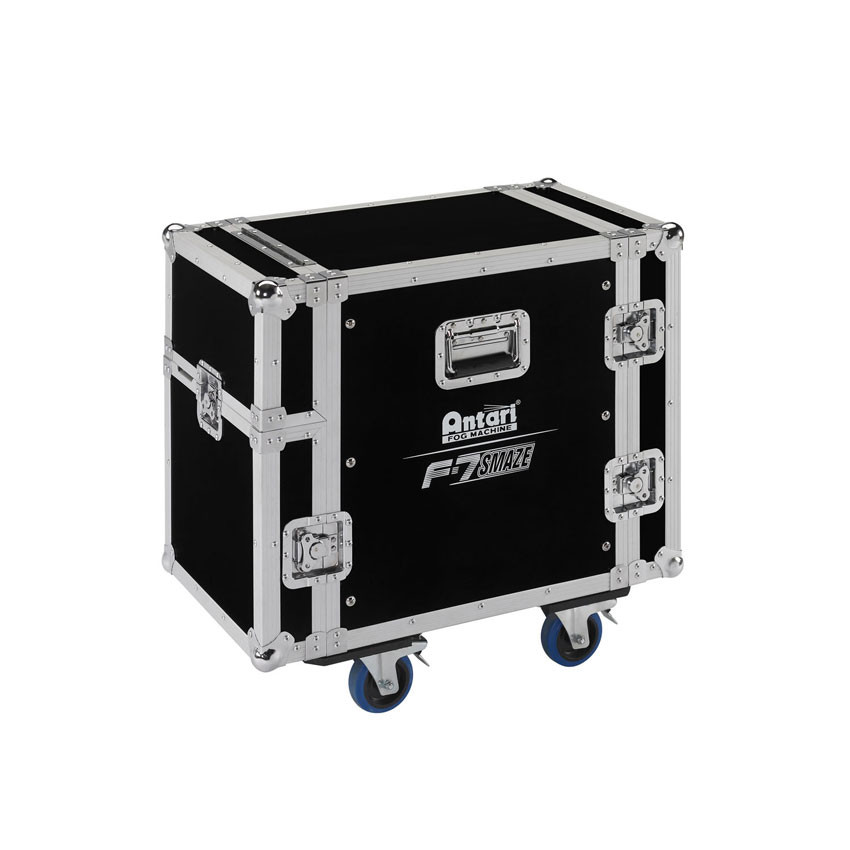

• Tour Ready Rugged Design

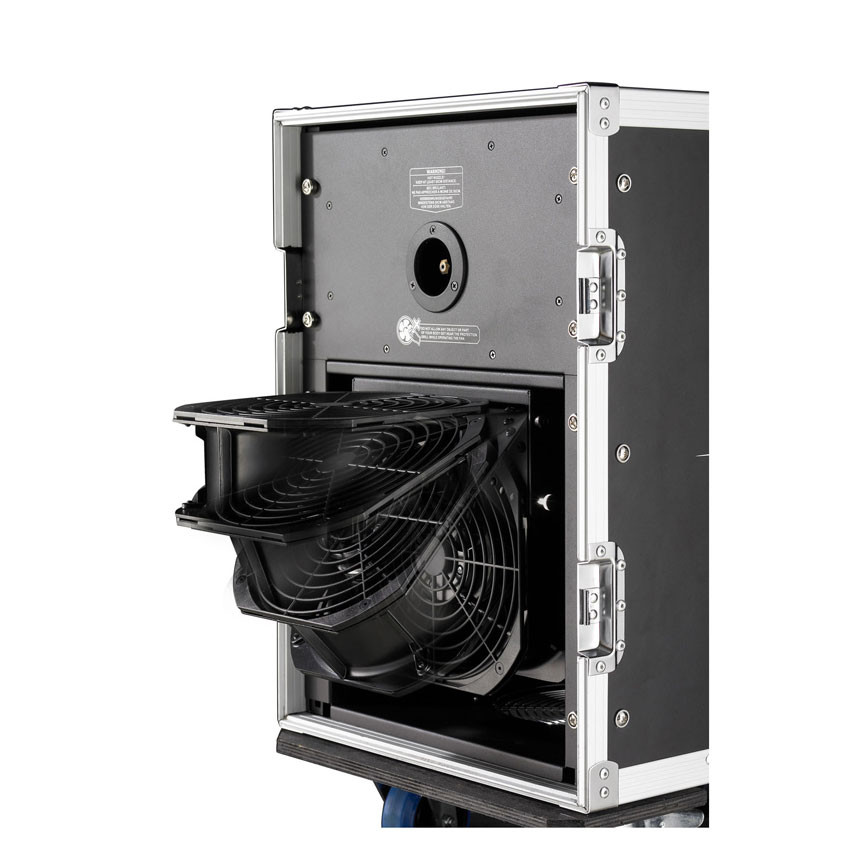

• Built-in High Velocity Adjustable Out Angle DMX Controlled AF-3 Fan
• State-of-the-Art Air Pump Technology with Self Cleaning Function
• Versatile Control Options Including Internal Wireless DMX

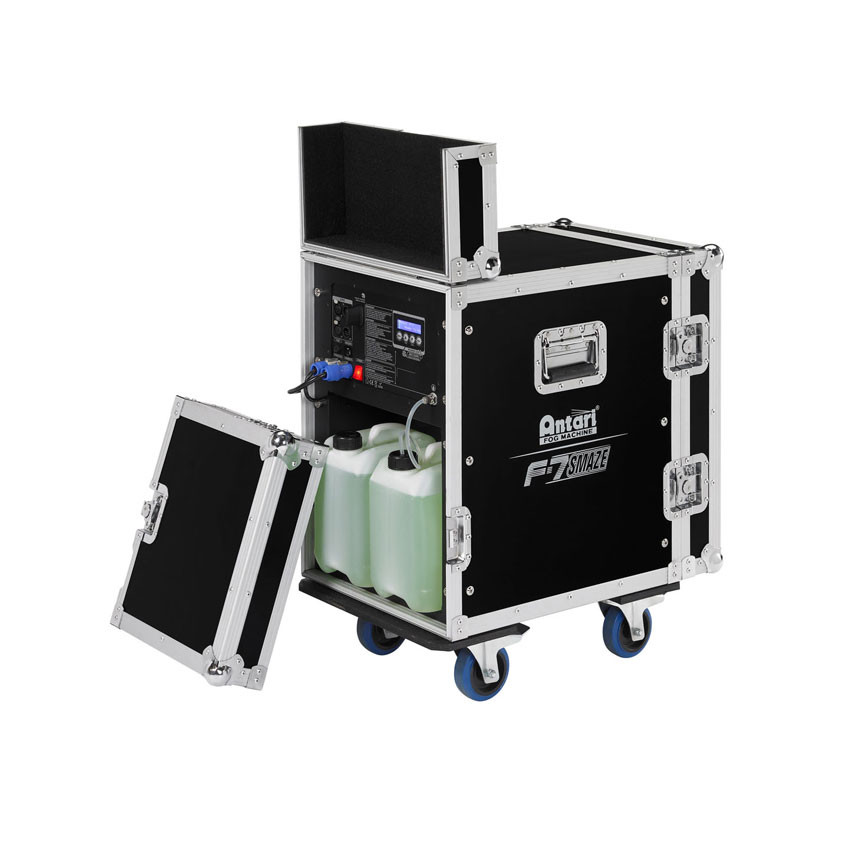

• Extra Large Fluid Area for (2) 5-Liter Containers
SPECIFICATIONS• Input voltage US model : AC 100-120V, 50/60Hz 13.5A
• Rated power 1600W
• Warm-up time 8 minutes (approx)
• Fluid consumption Fog Mode : 140ml/min
• Faze Mode : 28ml/min
• Fluid tank capacity 5 Liters (1.32 gallon)
• Compatible fluid Antari FLG-5E Heavy Fog Fluid ; Antari FLH-5E Super Fog Fluid ; Antari FLZ-5E Long Hang Time Fog Fluid
(FLZ-5E only applicable to machines manufactured after May 2020)• Operating time Faze Mode : 2.8 hrs at max. output
• Ambient temp/ range 0C 40C (32F 104F)
• Control Manual, Timer, DMX 512, Wireless DMX
• DMX channels 3 channels
• Connection Neutrik Powercon (Power); XLR 3-pin and 5-pin (DMX)
• Dimension L728 W428 H719 mm (L28.66 W16.85 H28.31 inch)
• Weight 52.5 kg (115.74 lbs)
