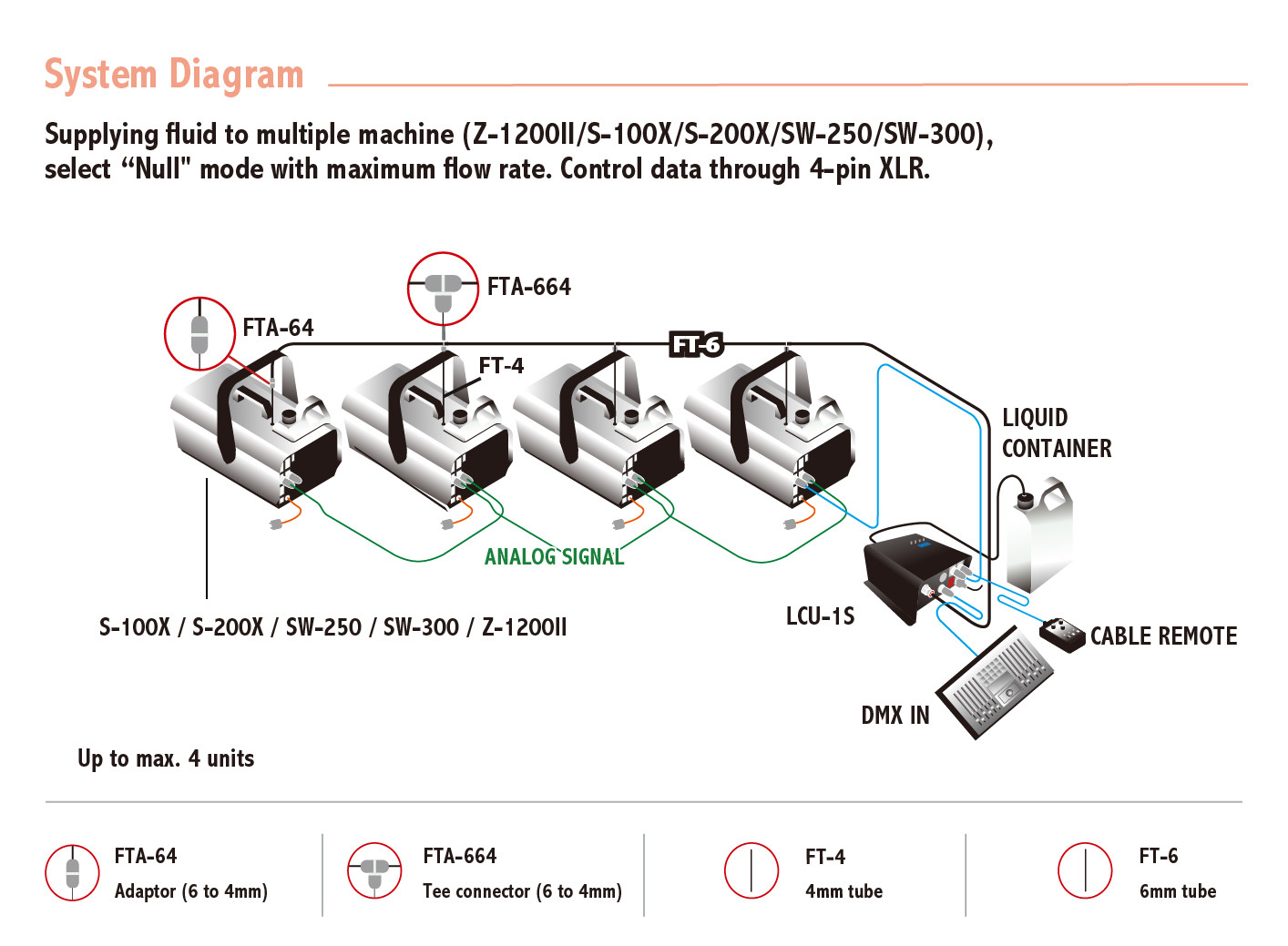

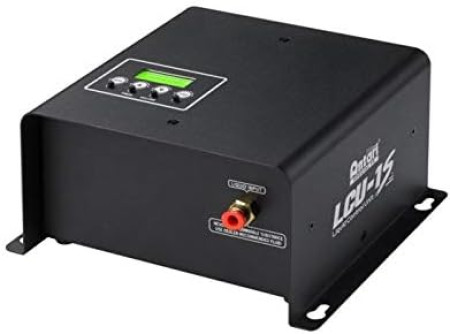

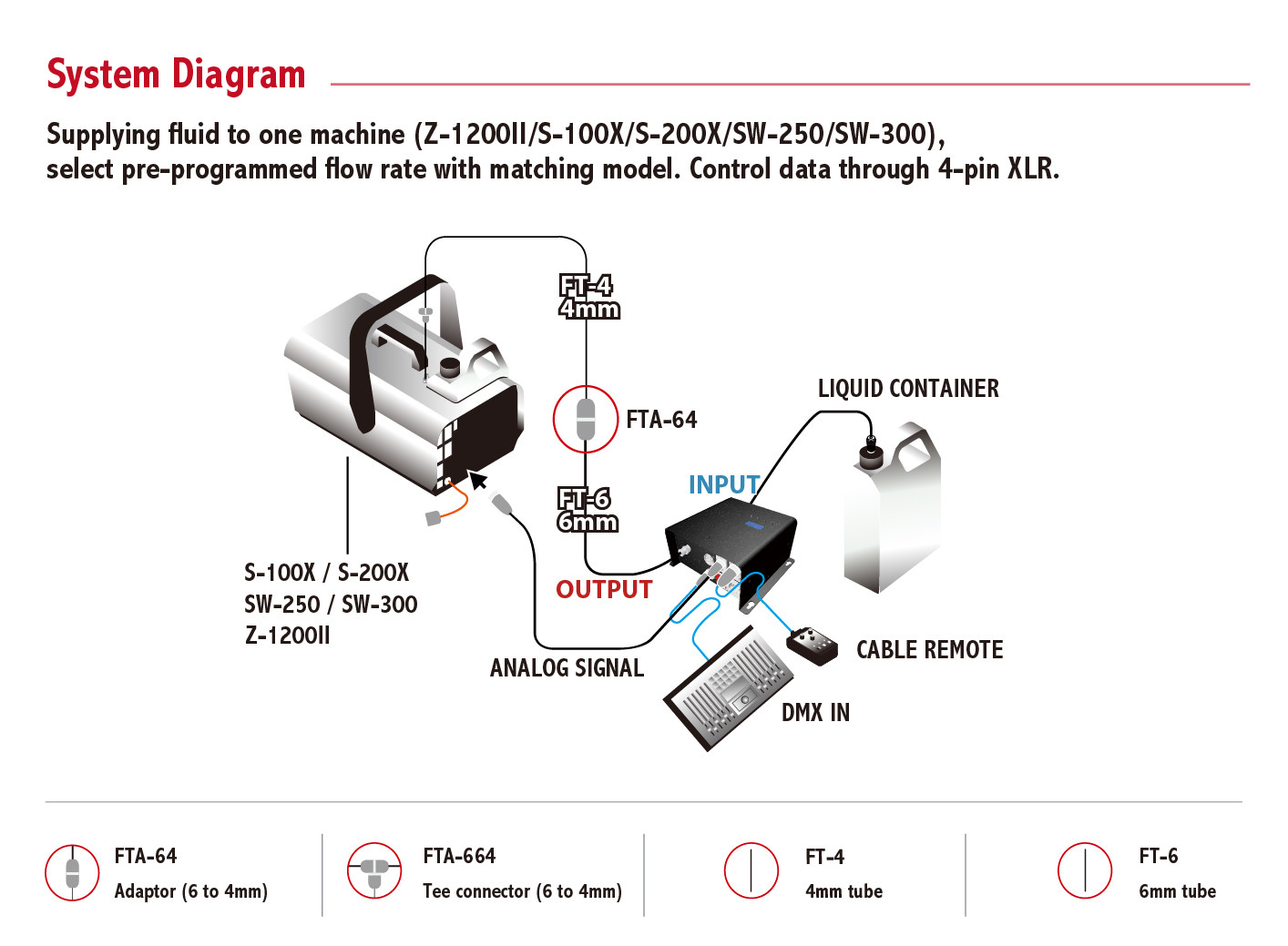

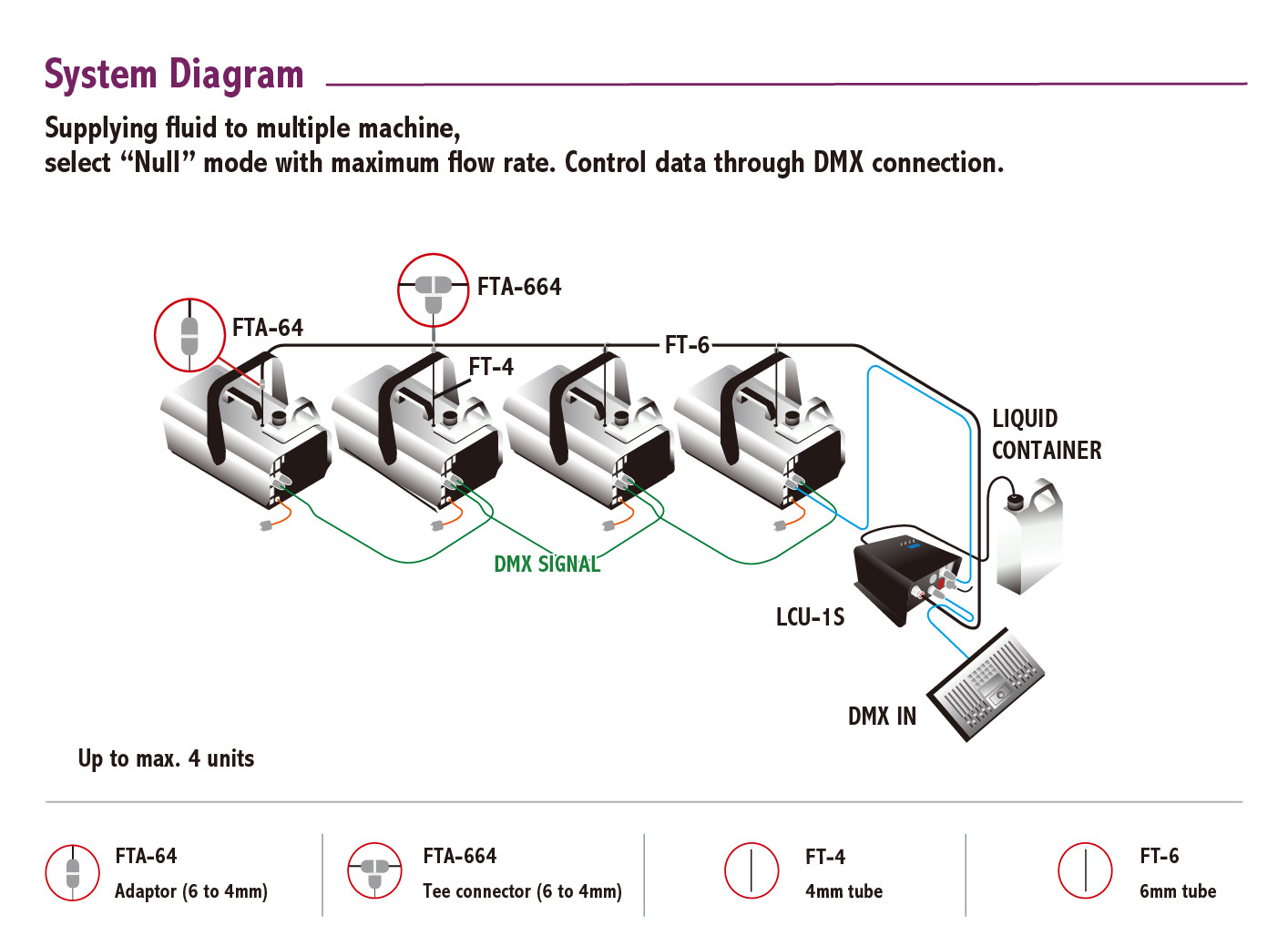

The latest LCU-1S comes with a LCD panel allows user to read and make setting with ease. It is preprogrammed for use with Z-1200II, S-100X, S-200X and SW-250. Flow rate are adjusted to supply one unit at the time. An optional "Null" mode offers versatility for use with any model, running the pump at 100% output; enable it to supply up to maximum 4 units at a time. LCU-1S can supply fluid to 35 meters long or 25 meters high at maximum, designed to meet most remote fluid supply application.
Rated voltageUS model : AC 100-120V, 50/60Hz 0.35A
Rated power40W
Fluid consumption400 ml/min
Compatible fluidAntari Fluid
Ambient temp.range5C 40C (41F 104F)
ControlManual, Timer, DMX 512
DMX channels1 channel
ConnectionIEC (Power)
XLR 3-pin (DMX)
Optional accessoriesZ-8 Remote Control; SC-2 Remote Control
DimensionL 203 W 179 H 96 mm
(L7.99 W 7.05 H 3.78 inch)
Weight3.3 kg (7.28 lbs )
California Prop 65 -
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
