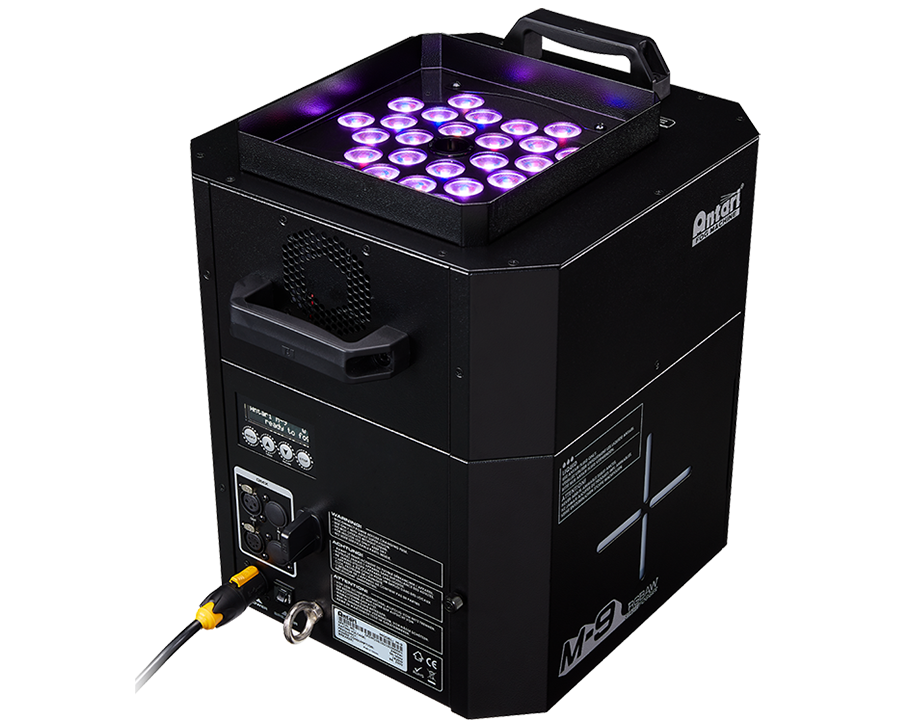

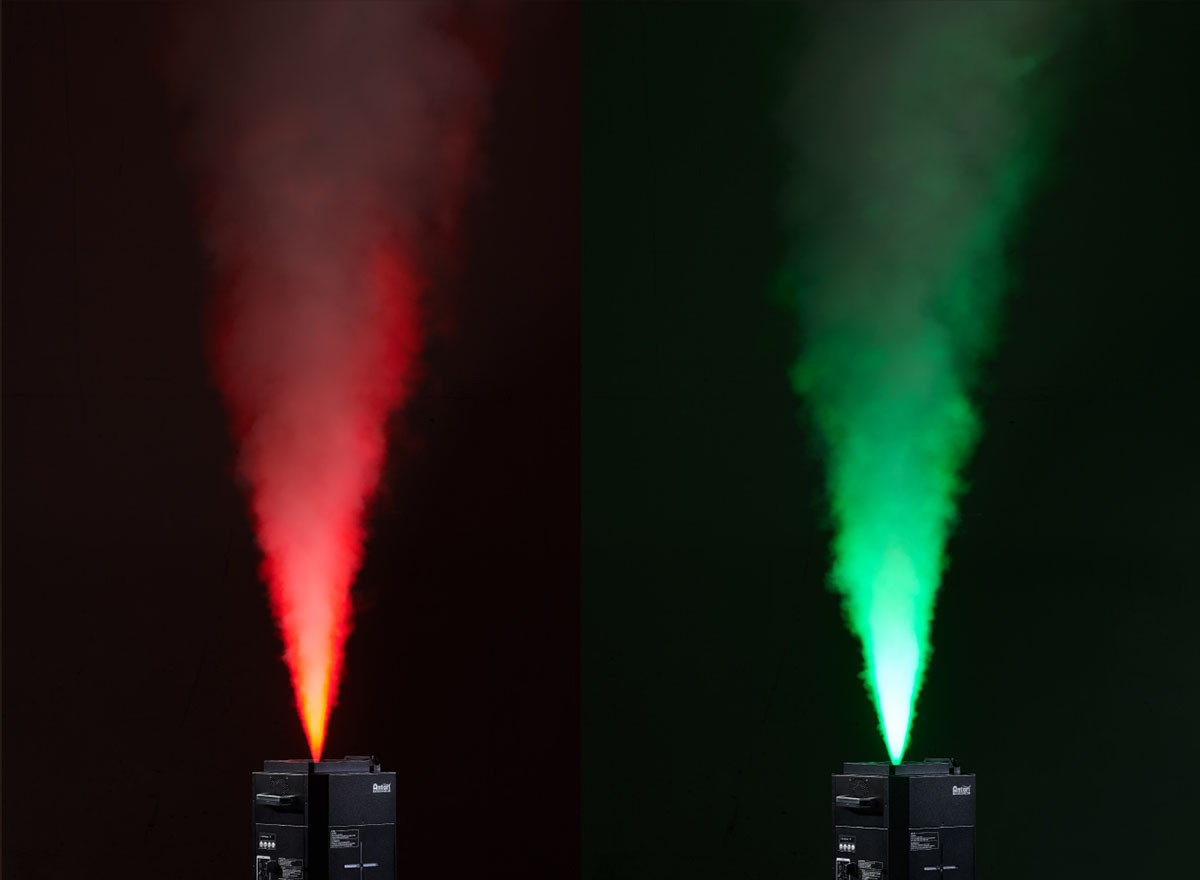

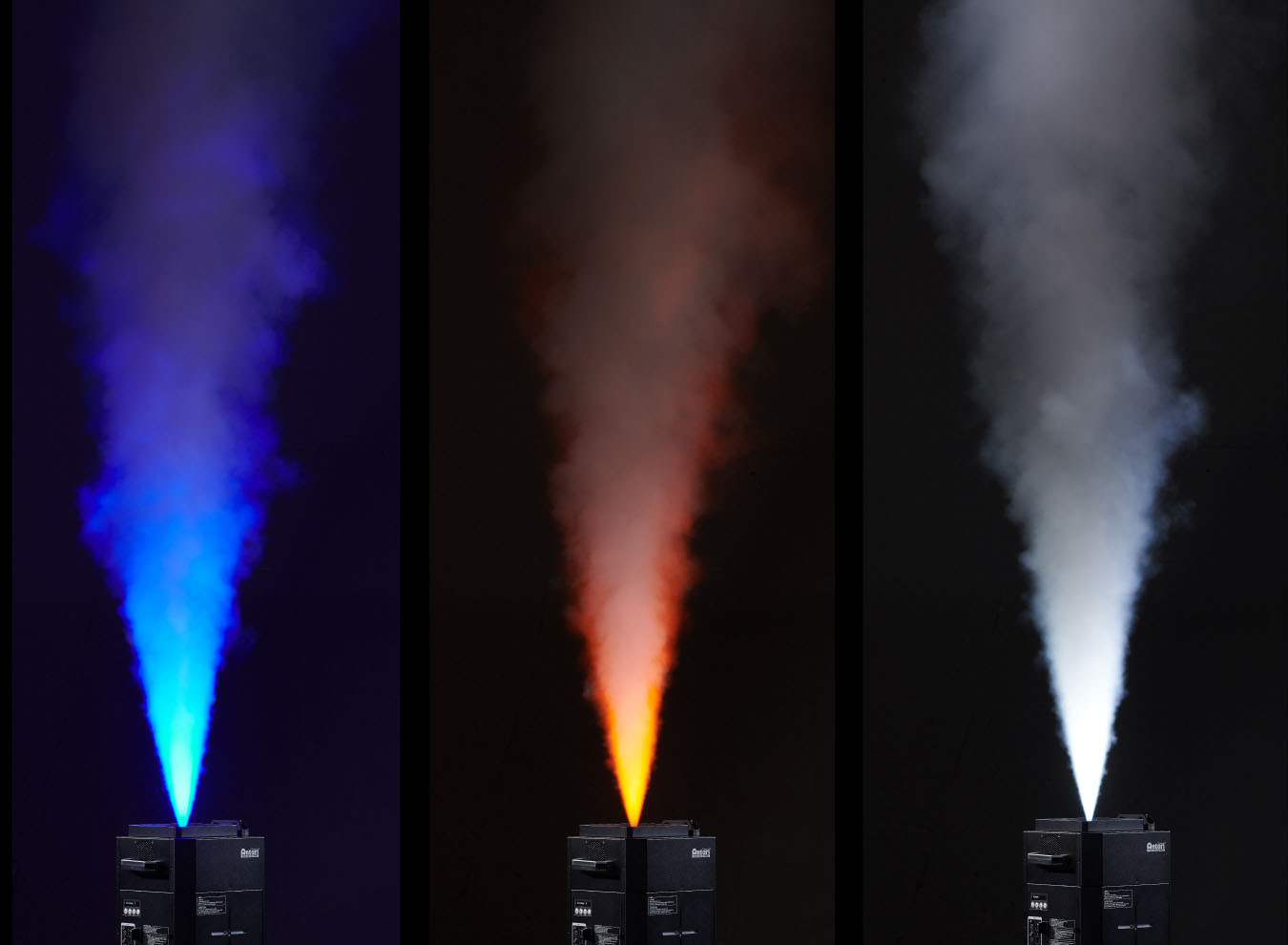

The M-9 RGBAW is Antari's most advanced CO2 effect simulator ever produced. A new specially designed and patented high pressure heater block allow the M-9 to produce a CO2 simulated blast as high as 10 meters (over 30 feet), without the need of dangerous and cumbersome CO2 tanks.

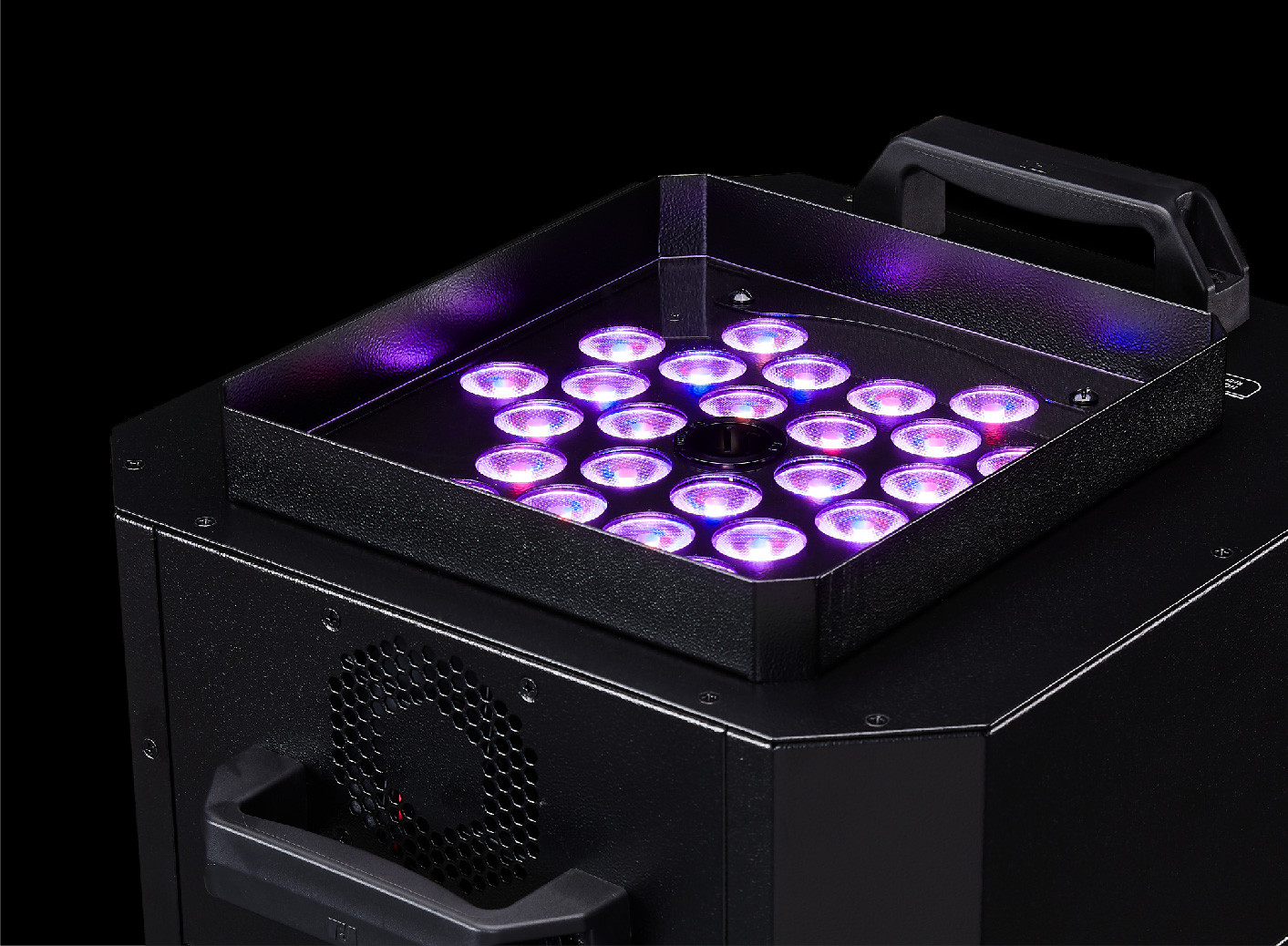

The M-9 comes equipped with high-powered 5-in-1 RGBAW LEDs to create a colorful cloud in the widest color spectrum possible. Versatile case design allow the unit to be mounted vertically, horizontally, or inverted without fear of leaking or dripping thanks to Antari's specially designed fluid transfer system.

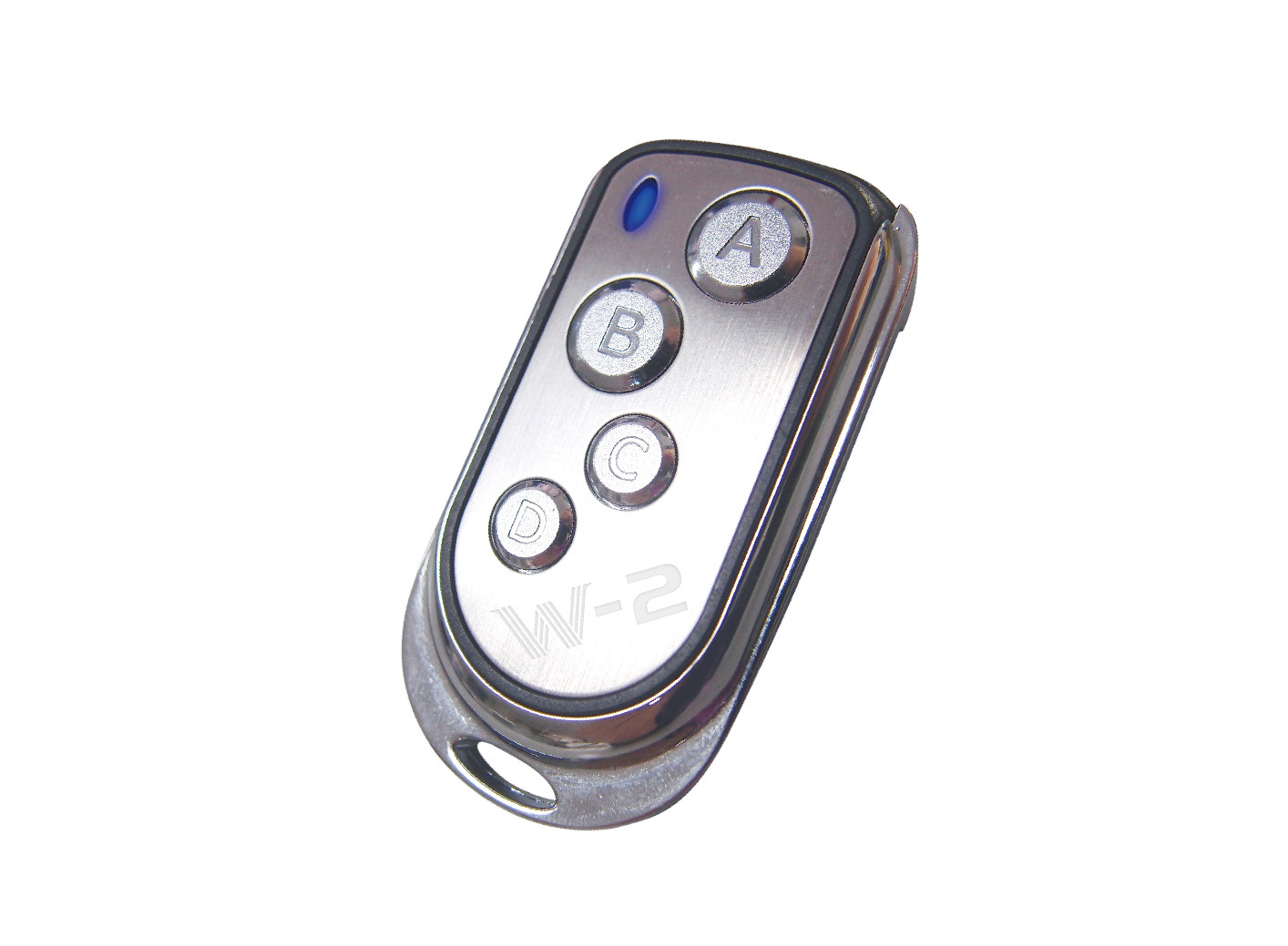

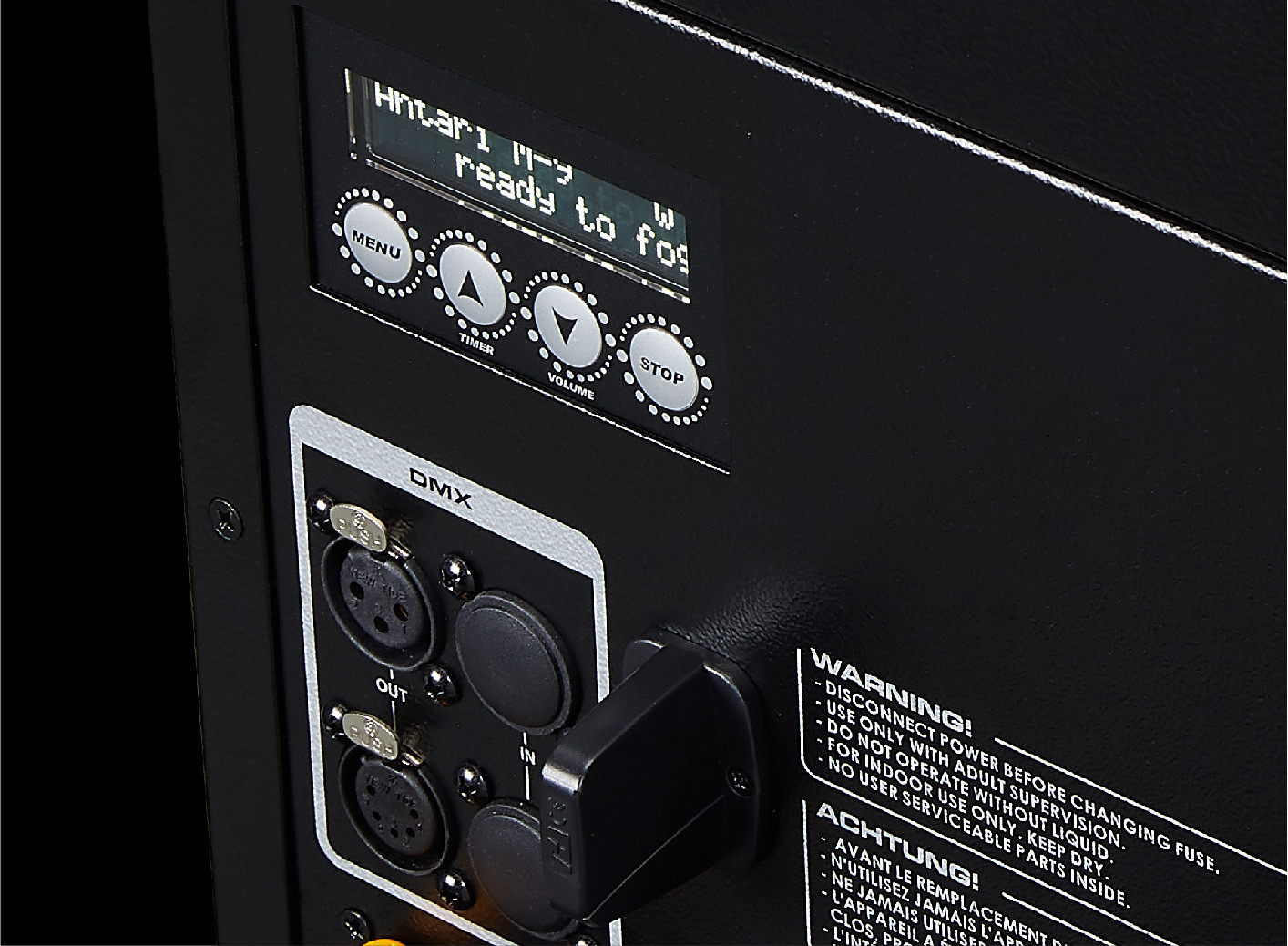

The M-9's versatile control options include built-in electronic timer, DMX with RDM, stand alone operation, and built-in wireless remote. The units also comes with 8 preprogramed colored chase effects and 25 color macros for quick and easy programming.
SpecificationsInput voltage
US model : AC 100-120V, 50/60Hz 15.2A
EU model : AC 220-240V, 50/60Hz 7.6A
Rated power
1820W
Light Source
27 x 8W LED (5-in-1 LED)
Warm-up time
14 minutes (approx.)
Fluid consumption
400 ml/min (100% output)
Fluid tank capacity
6 Liters (1.59 gallon)
Compatible fluid
Antari FLC-6 Super Light Fog Fluid
Ambient temp/ range
0C 40C (32F 104F)
Output
10 meters height
Control
Manual, Timer, DMX 512,
Master / Slave, Wireless
Wireless DMX (Optional)
DMX channels
10 / 15 / 25 channels

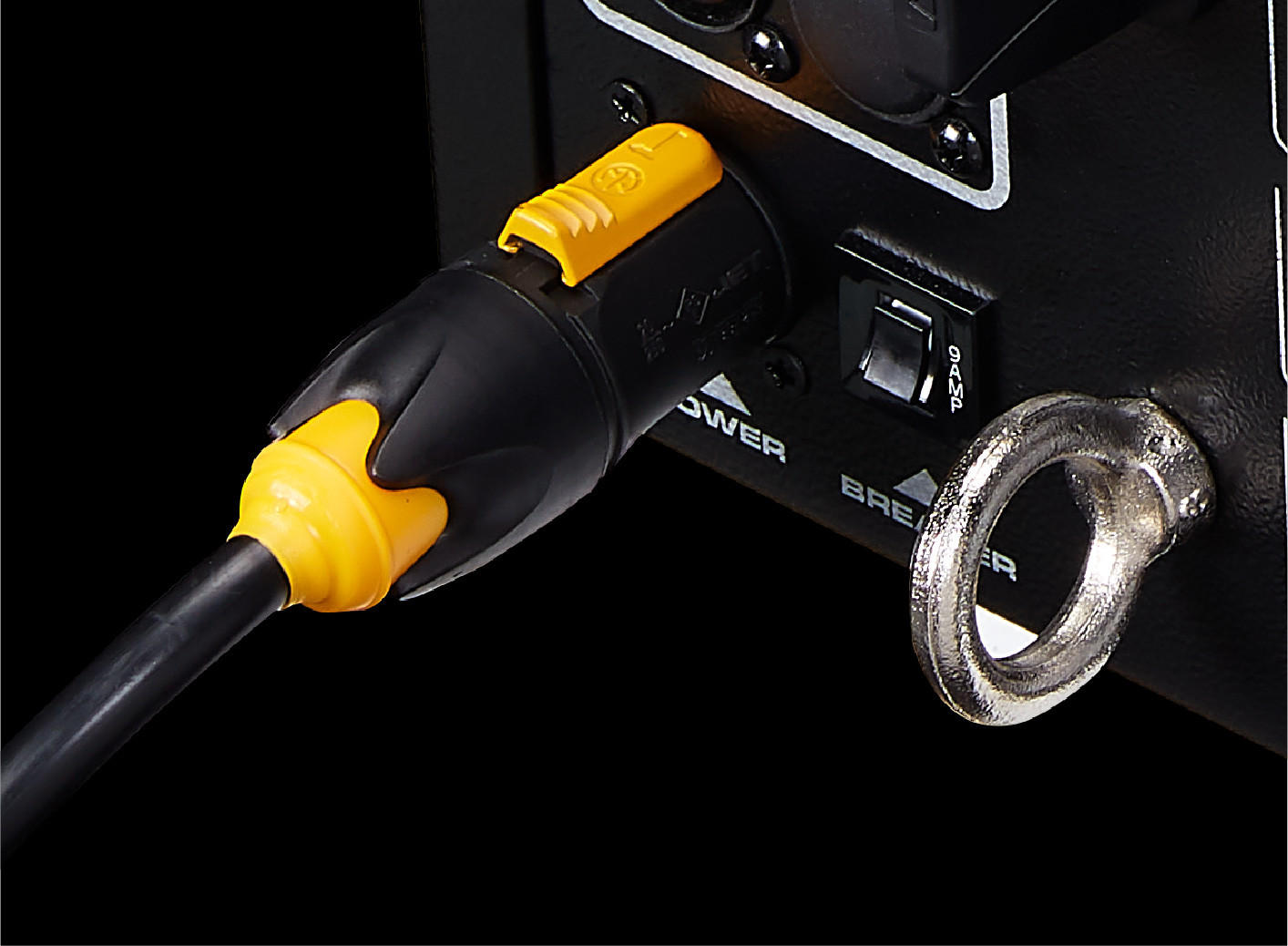

Connection
Neutrik TRUE 1 Connector (Power)
XLR 3-pin and 5-pin (DMX)
Optional accessories
WTR-90 Wireless DMX
Dimension
L 393 W 321 H 420 mm
(L 15.47 W 12.63 H 16.53 inch)
Weight25 kg (55.1 lbs)
