The Antari S-500XL is an enhanced version of the S-500 large capacity "Silent" operation DMX controllable snow machine packaged with the following included accessories: 65.6 ft (20m) Air Hose and Nozzle, Wireless DMX Control, S-3 Wired Remote Control and PM-1 Pan Motor.

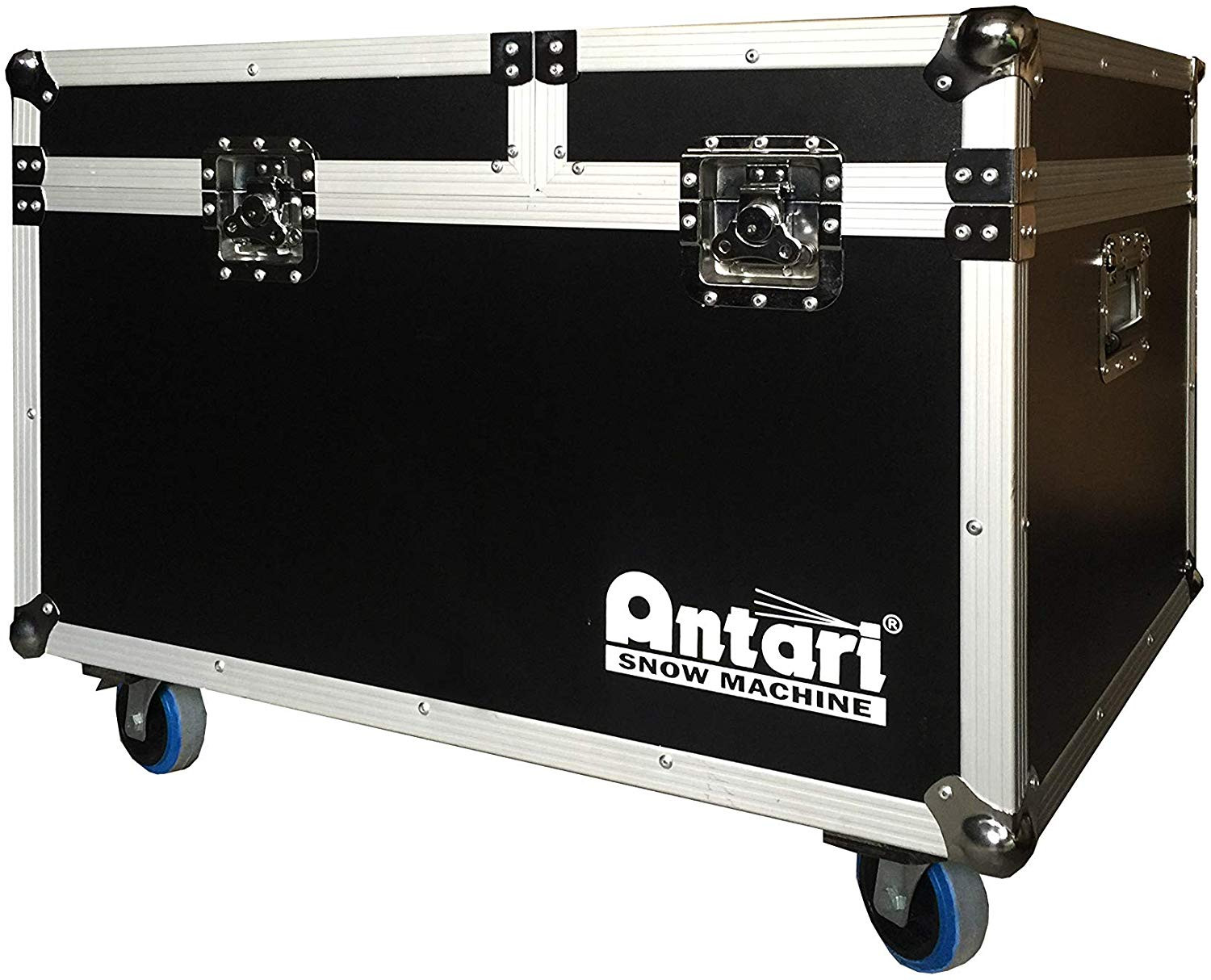

The Antari S-500XL is housed in a durable road case with wheels and features a 5.2 gallon (20 Liter) capacity fluid tank, a 65.6 foot (20 meter) long air hose for easy rigging on a stand or truss, and adjustable wind volume and flow rates. The road case features a small access door for the air hose so can the case can closed when in use for "Silent" operation.
This unit is designed to work with
Antari SL Snow Foam Fluid, (Antari SL-N, SL-AN, SL-H, SL-C or SL-UV.). Using a fluid other than what is recommended for this machine may void the manufacturer's warranty. See the owner's manual or warranty details for more information.
Specifications OUTPUT
400 ml / min
TANK CAPACITY
5.2 gal (20 Liter)
WORKING NOISE LEVEL
66 db Full On @ 3.3 ft (1m)
CONTROL / CONNECTIONS
Wired Remote and Wireless DMX
(2) DMX Channel Modes (1 / 2)
3pin/5pin XLR In/Out
powerCON In
SIZE / WEIGHT
Length: 31.61" (803mm)
Width: 23.74" (603mm)
Height: 25.63" (651mm)
Weight: 102.29 lbs. (46.4 kg)
ELECTRICAL
AC120V / 60Hz
1,200W Max Power Consumption

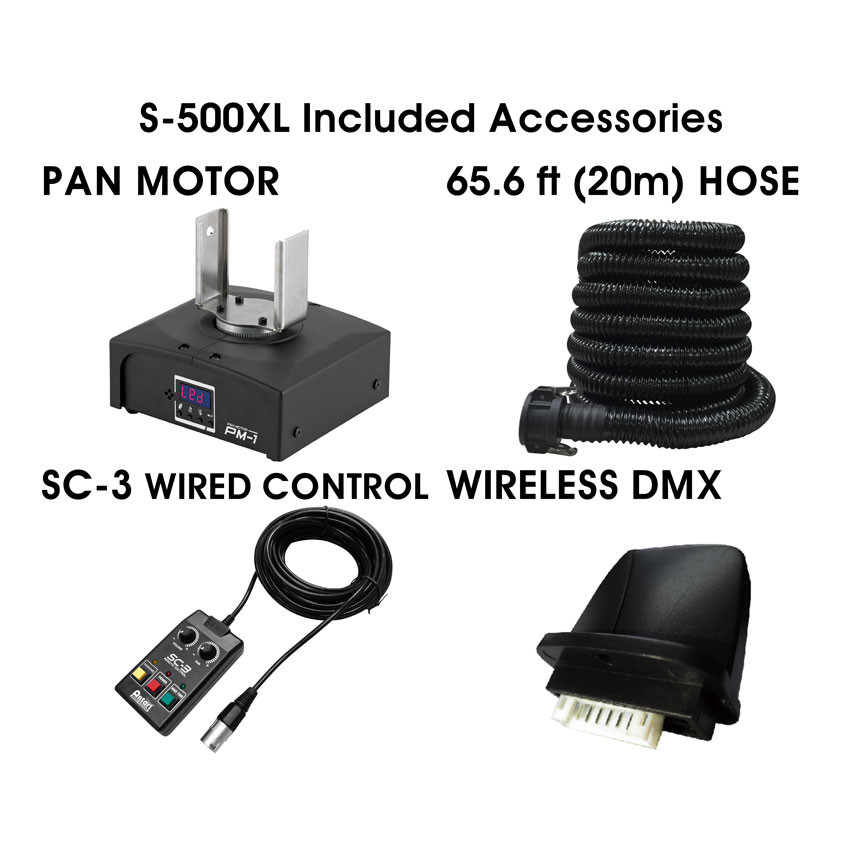

INCLUDED ITEMS
powerCON Cable
5.2 gallon (20 Liter) Fluid Tank and Feed Tube

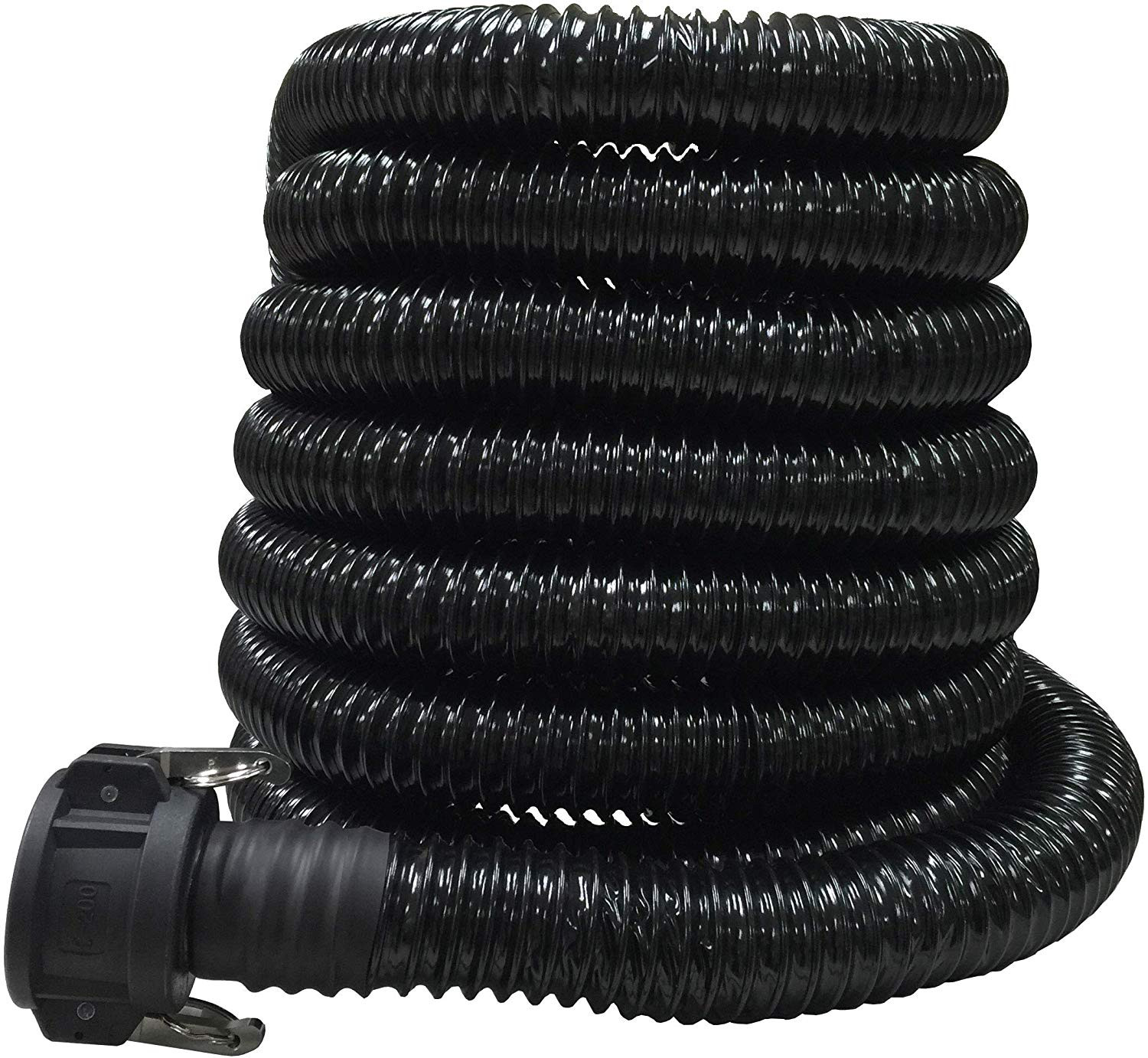

65.6 ft (20m) Air Hose and Nozzle
Wireless DMX Control
S-3 Wired Remote Control
PM-1 Pan Motor

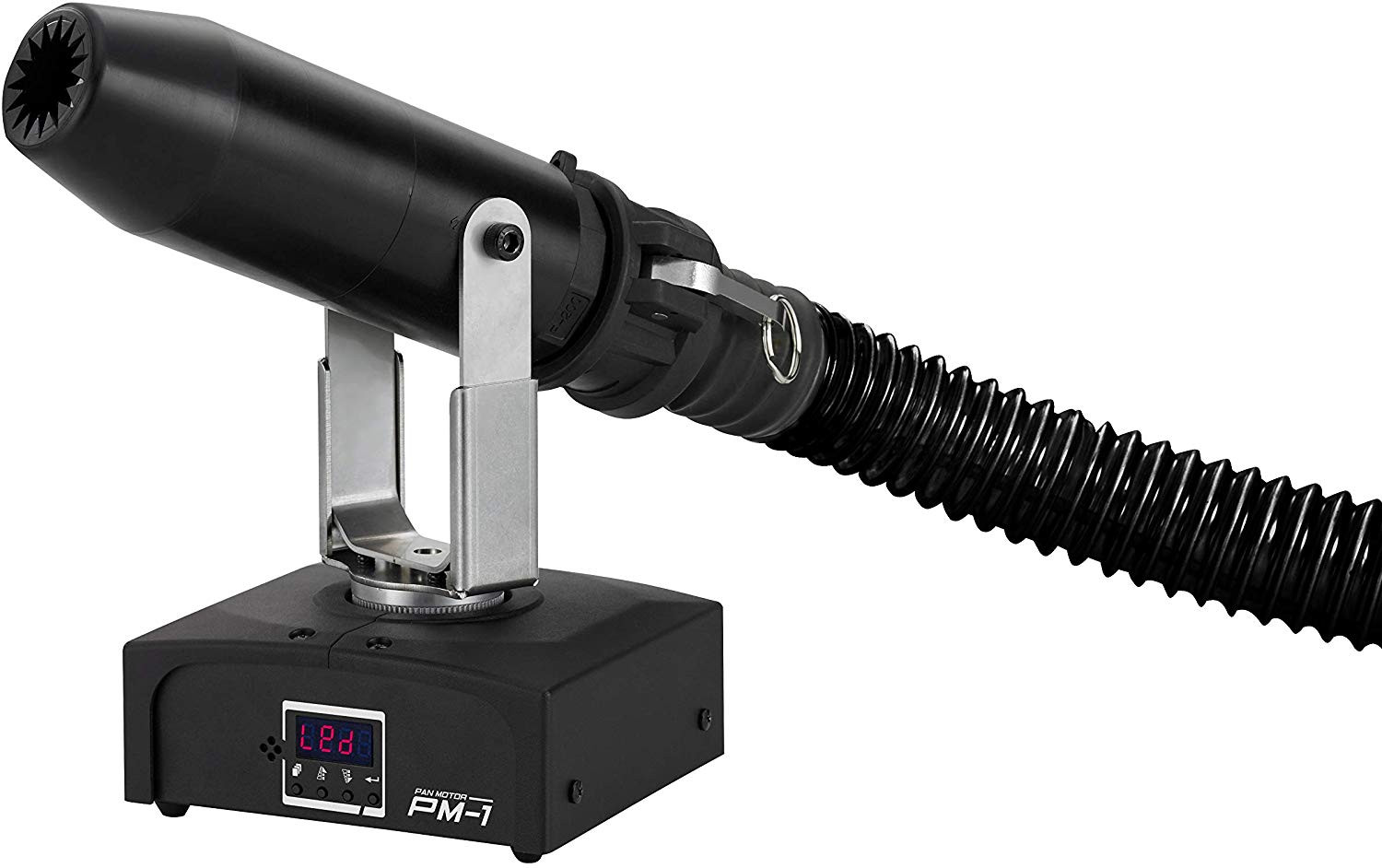

PM-1 PAN MOTOR SPECIFICATIONS
120 Degree Pan Movement | LED Control Display with 4 Buttons
Metal Chassis with Plastic Cover
CONTROL / CONNECTIONS
(2) DMX Channels | 3pin XLR DMX In/Out
INCLUDED ITEMS
Motor, Power Cord, Omega Bracket (for clamp mounting)
SIZE / WEIGHT
Length: 6.7" (169mm)
Width: 6.1" (154mm)
Vertical Height: 5.9" (151mm)
Weight: 4 lbs. (1.8 kg)
ELECTRICAL
AC120-240V 50/60Hz
11W Max Power Consumption
OPTIONAL ACCESSORIES
Wireless Remote Control Add On Kit - SKU# WTR-20
