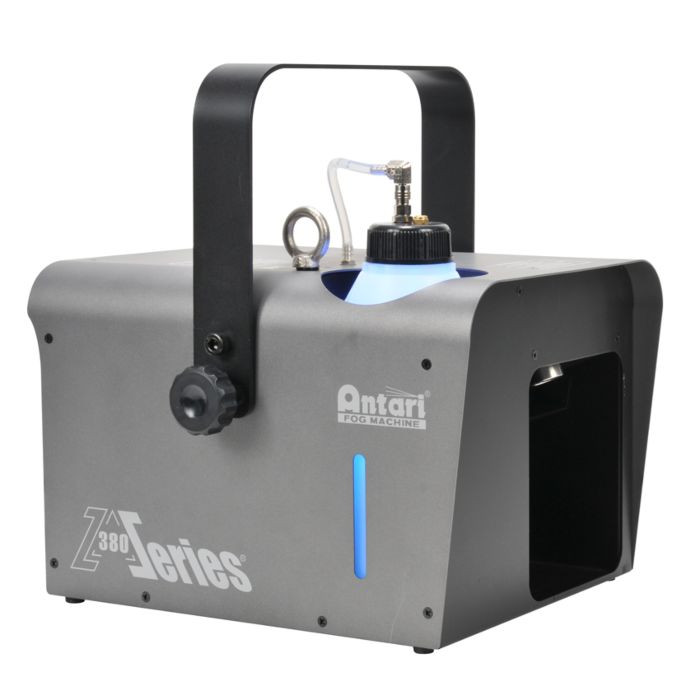

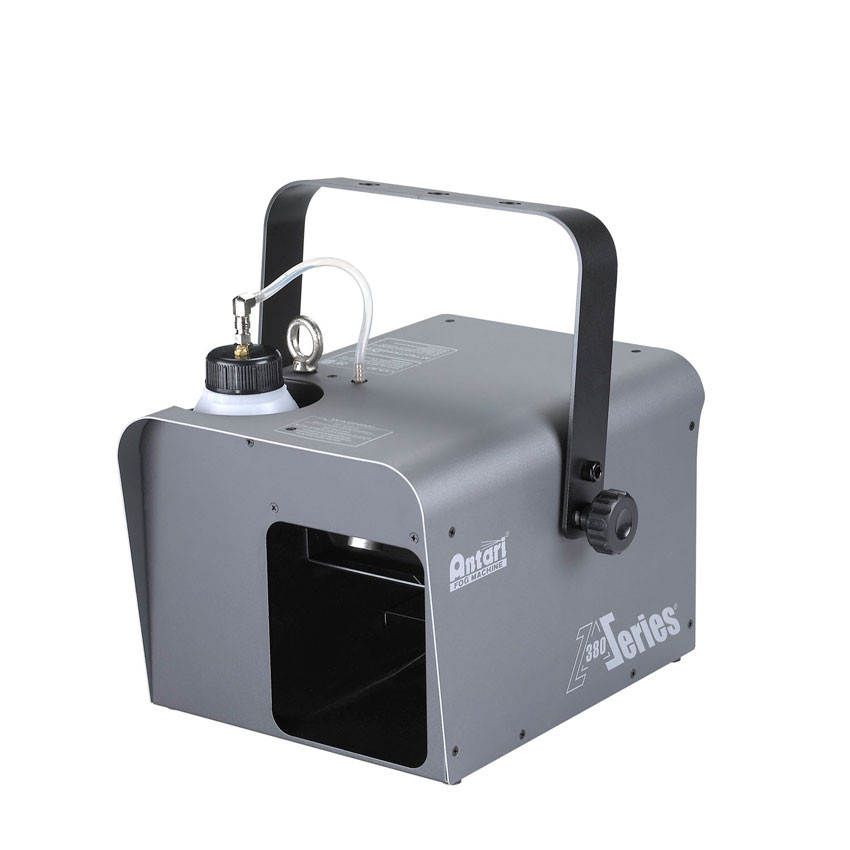

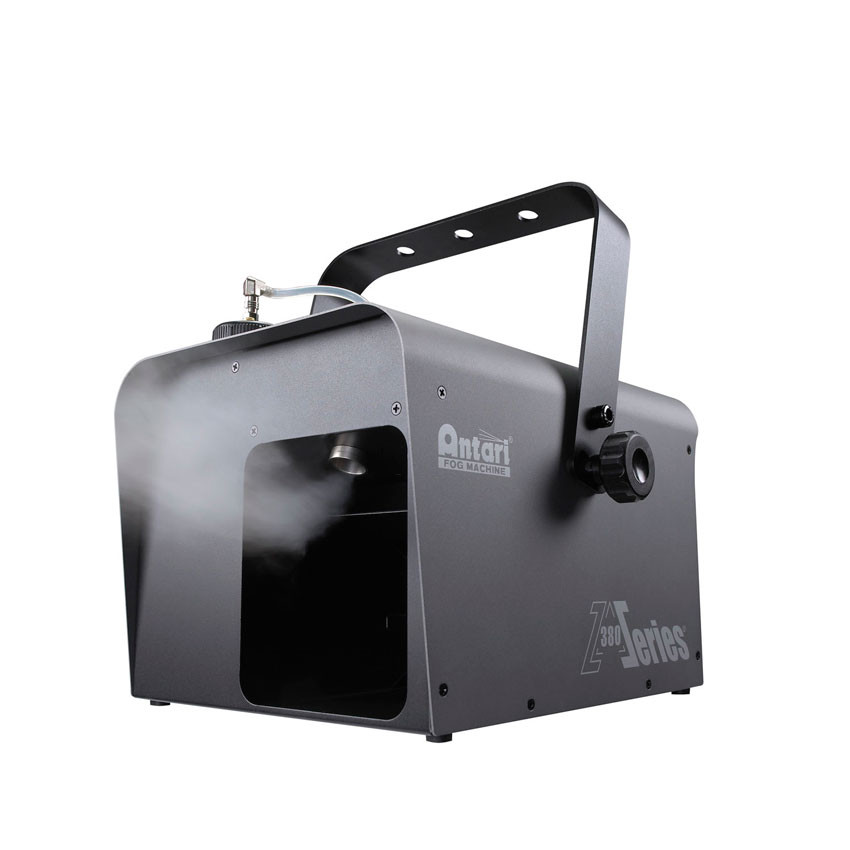

The Z-380 Fazer provides an impressive output of 6,000 cubic foot per minute, features include a hanging bracket for truss installations, a rear panel LCD interface for easier control, and an improved heater design with larger size tubing reducing clogging issues and extending the life of the heater. Optional accessories include wireless and wired remote control kits.
Antari Z-380 Fazer is
Actors' Equity Approved when used in combination with Antari FLG Fog Fluid.
VIDEO
Features: • Compact Design
• Powerful Output of 6,000 Cubic Foot Per Minute
• Large Size Tubing to Reduce Clogging Issues with Antari FLG Fog Fluid
• Auto Cleaning Function
• User Friendly LCD Control Display
• DMX and Manual Control
• Mounting Bracket Included
• Optional Wired and Wireless Remotes Available
Specifications FIRST HEAT-UP TIME: 1.5 minute
OUTPUT: 6,000 Cu.Ft/min
TANK CAPACITY: 1.2 L
FLUID CONSUMPTION: 6 ml/min (100% output)

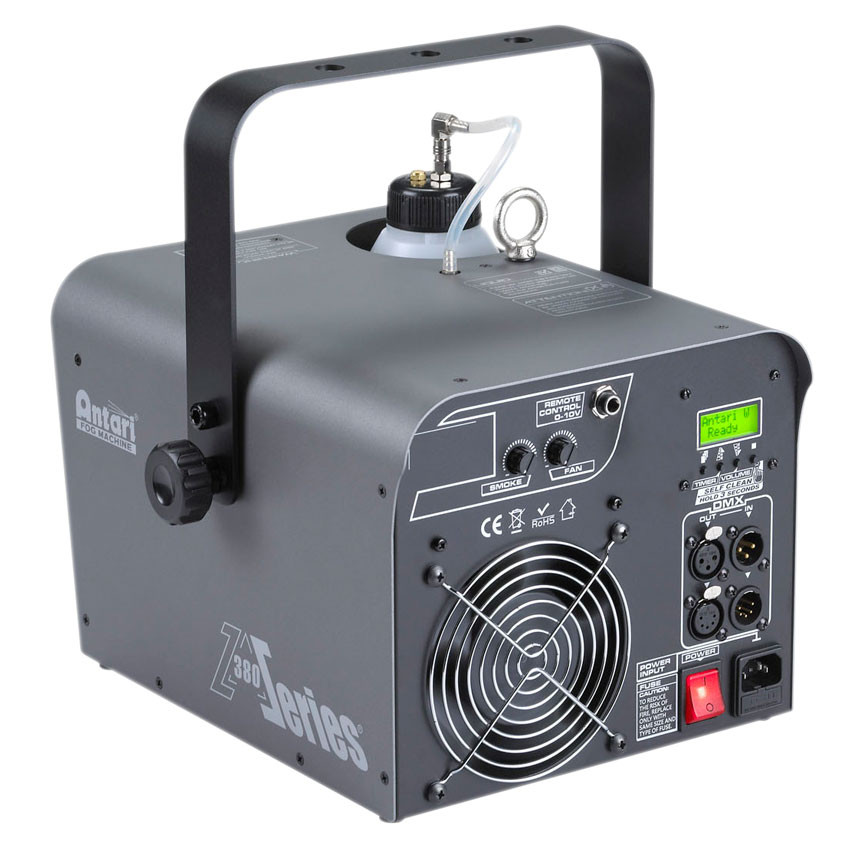

CONTROL / CONNECTIONS
• LCD Display, 4 Buttons, 2 Rotary Knobs
• DMX, Timer, or Manual
• 3pin and 5 pin DMX In/Out
• IEC Power In
SIZE / WEIGHT
• Length: 12.9" (328mm)
• Width: 9.8" (248mm)
• Vertical Height: 10.4" (265) | 12.8" (324mm) with hanging bracket
• Weight: 18.7 lbs. (8.5 kg)
ELECTRICAL / THERMAL
• AC 120V / 60Hz
• 1500W Max Power Consumption
APPROVALS / RATINGS
• CE | cETLus | RoHs
OPTIONAL ACCESSORIES
• Wireless Remote Control Add On Kit - SKU# W-2TRA
• Wired Remote - SKU# Z-3
