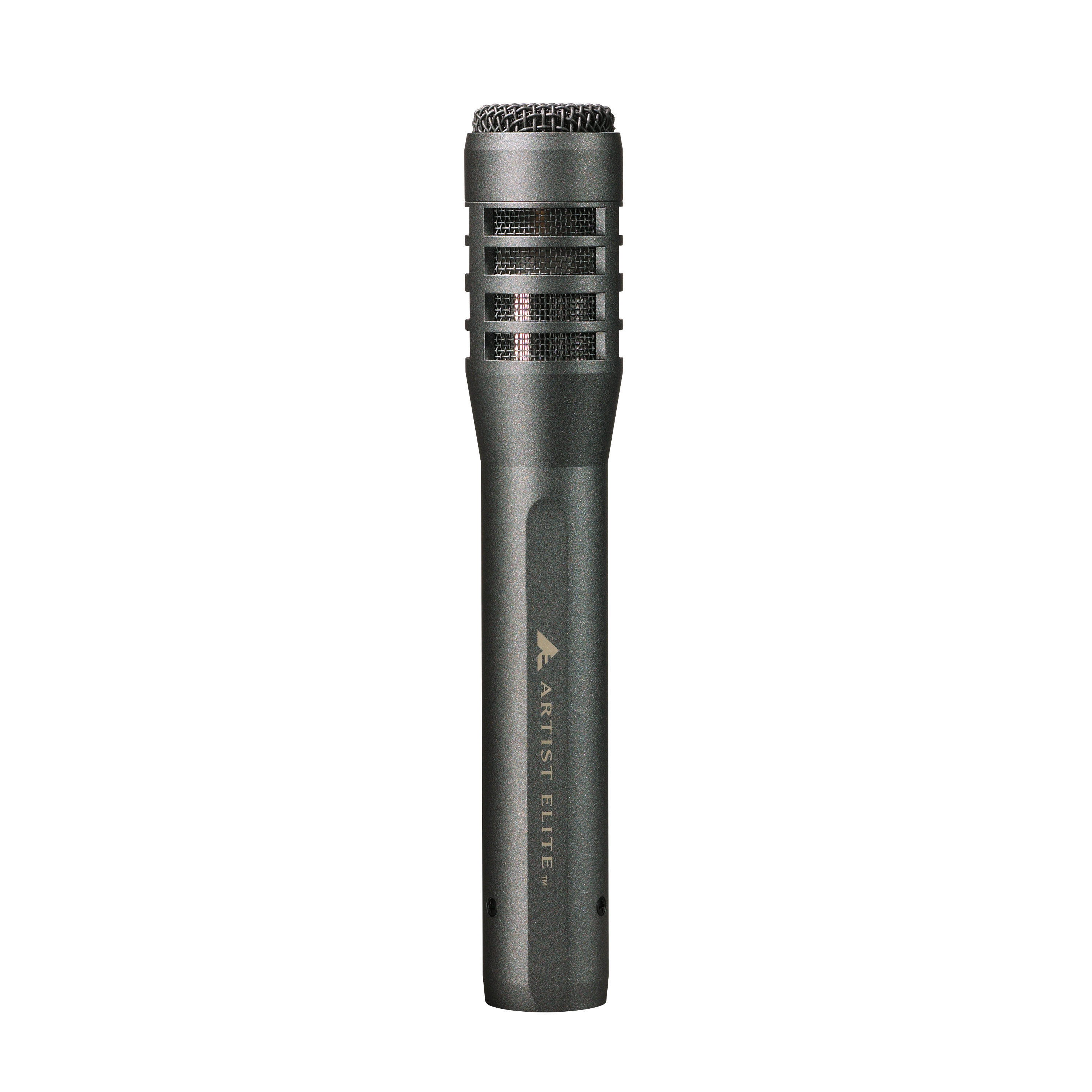

Audio Technica AE5100 Cardioid Condenser Instrument Microphone

audio technica ae5100
audio technica ae5100 Audio Technica AE5100 Cardioid Condenser Instrument Microphone Audio Technica AE5100 Cardioid Condenser Instrument Microphone Audio Technica AE5100 Cardioid Condenser Instrument Microphone Audio Technica AE5100 Cardioid Condenser Instrument Microphone
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable This item has been discontinued or is no longer available.
In Stock It may be available on Amazon
In Stock Free shipping on most orders over $35
Buy on Amazon
The Artist Elite AE5100 large diaphragm cardioid condenser instrument microphone provides uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments. With rich, warm, accurate sound, the AE5100 also incorporates the most essential ingredients for quality live sound in a choir microphone. Its large-diaphragm capsule delivers accurate, natural response, while its low-profile design permits innovative placement options. With a lower profile than the large studio microphones to which it compares sonically, the AE5100 offers an outstanding performance-to-size ratio. With its low noise and smooth response, the AE5100 is ideal for recording, too.

FEATURES:
• Large-diaphragm capsule delivers accurate and natural response
• Low-profile design permits innovative placement options previously unattainable with a large-diaphragm condenser
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Robust design for enduring dependability on the road

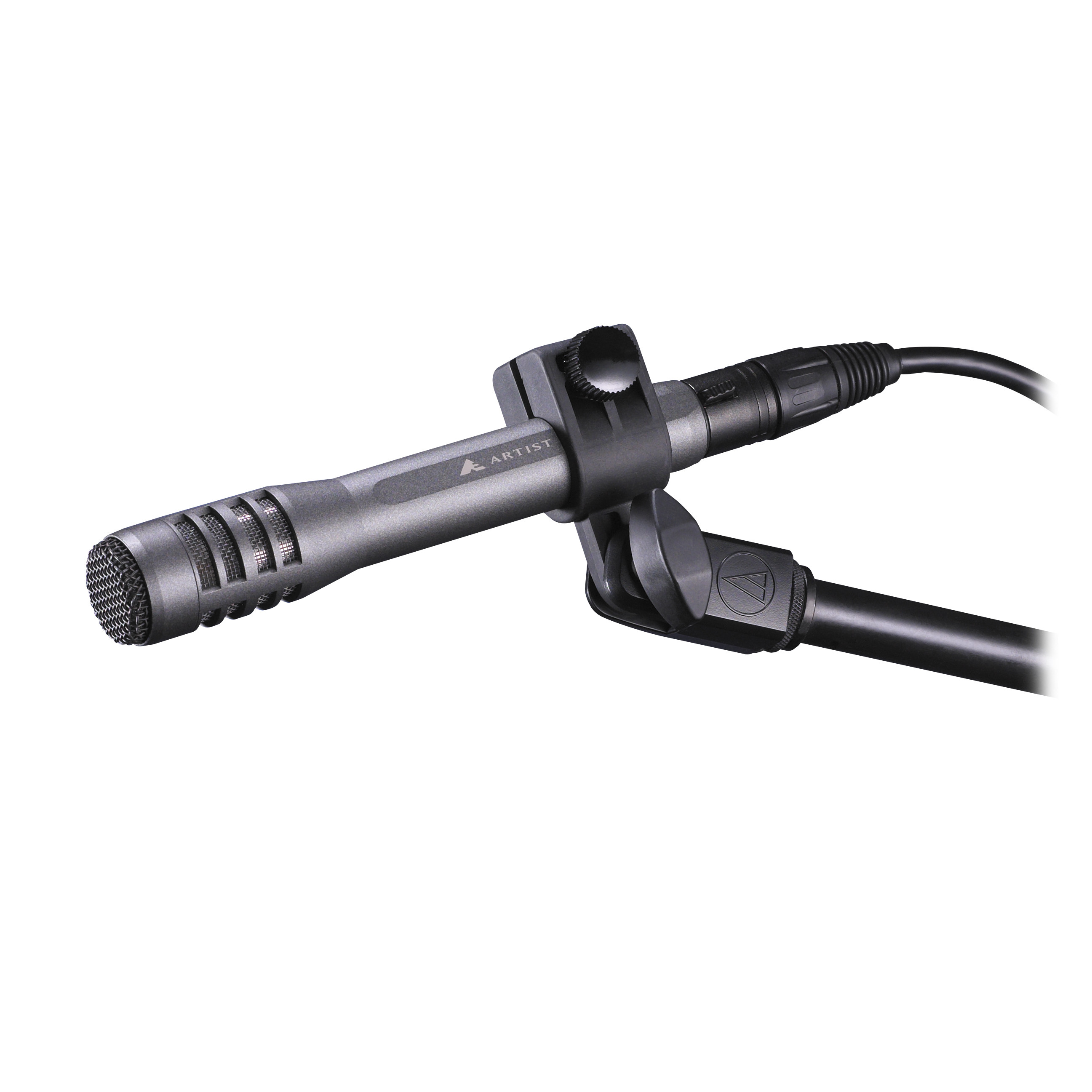

• Includes isolation clamp for shock protection, secure mounting and easy positioning
• Integral 80 Hz HPF switch and 10 dB pad

ELEMENTFixed-charge back plate, permanently polarized condenser

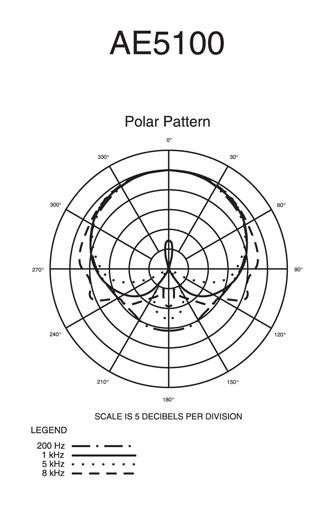

POLAR PATTERNCardioid

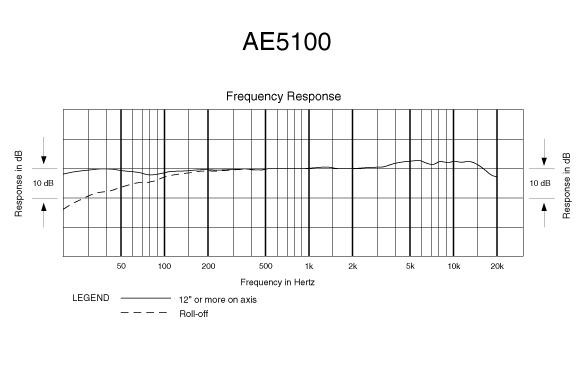

FREQUENCY RESPONSE20-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY-36 dB (15.8 mV) re 1V at 1 Pa
IMPEDANCE150 ohms
MAXIMUM INPUT SOUND LEVEL148 dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL with 10 dB pad (nominal)
NOISE11 dB SPL
DYNAMIC RANGE (typical)137 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO83 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS11-52V DC, 3.2 mA typical
SWITCHESHigh-pass filter;
10 dB pad (nominal)
WEIGHT5.0 oz (143 g)
DIMENSIONS5.85" (148.5 mm) long,
1.02" (26.0 mm) maximum diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type

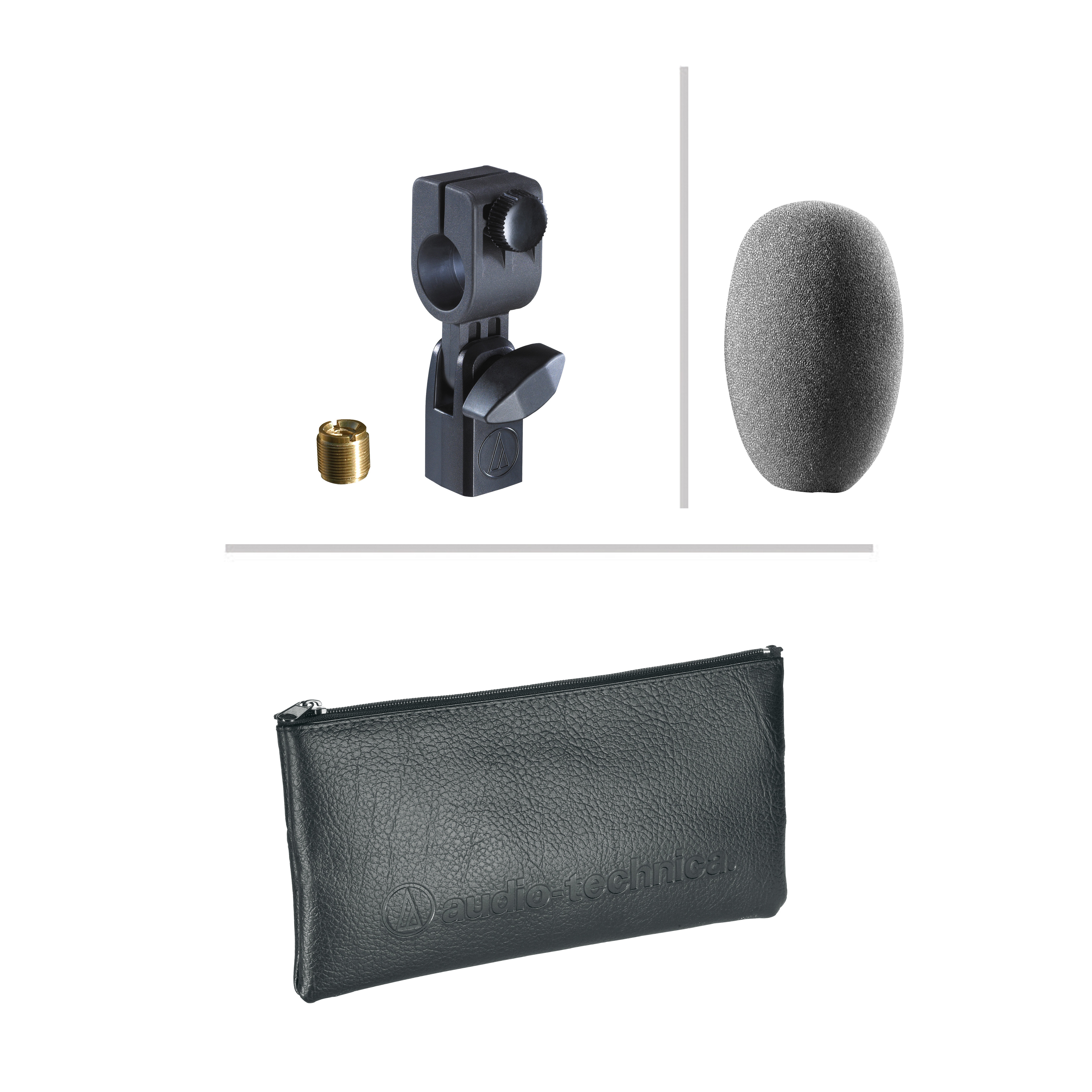

ACCESSORIES FURNISHEDAT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; AT8136 windscreen; soft protective pouch
AUDIO-TECHNICA CASE STYLES4

Additional Information

UPCN/A
SKUAE5100
ManufacturerAudio Technica
Price$279.00
Product ConditionNew - On Clearance
