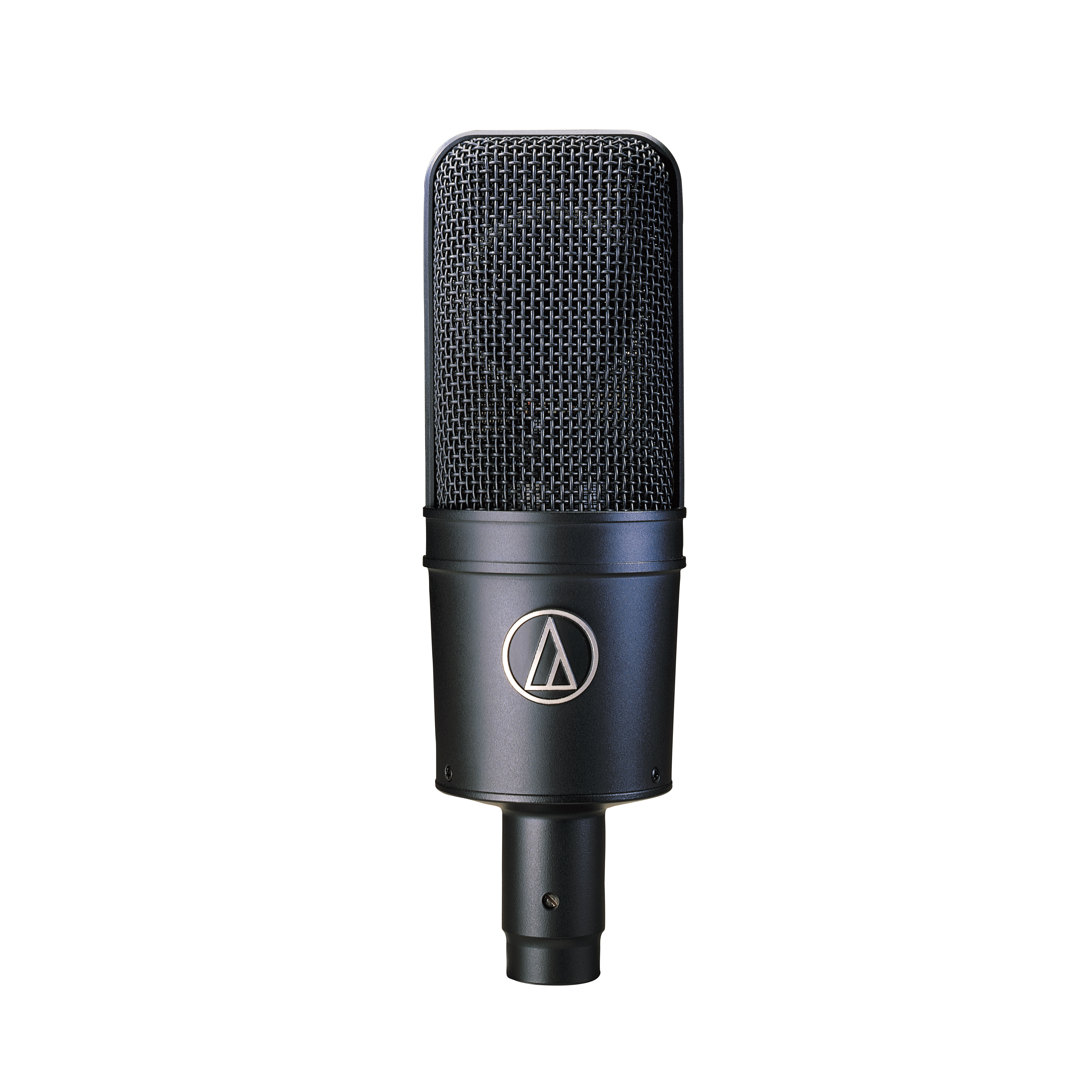

The classic edition of the legendary AT4033 microphone, the side-address AT4033/CL offers low-noise, symmetrical, transformerless circuitry that results in exceptional transient response and clean output signals. A studio classic and bluegrass favorite, the AT4033/CL cardioid studio condenser is the microphone that broke the US$1000-barrier in its class. A strong up-front presence characterizes the sonic signature of this 40 Series pro-audio classic. The AT4033/CL's 80Hz high-pass filter easily switches between flat frequency response and a low-end roll-off that diminishes ambient noise and popping with closely-miked vocals.
FEATURES:• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

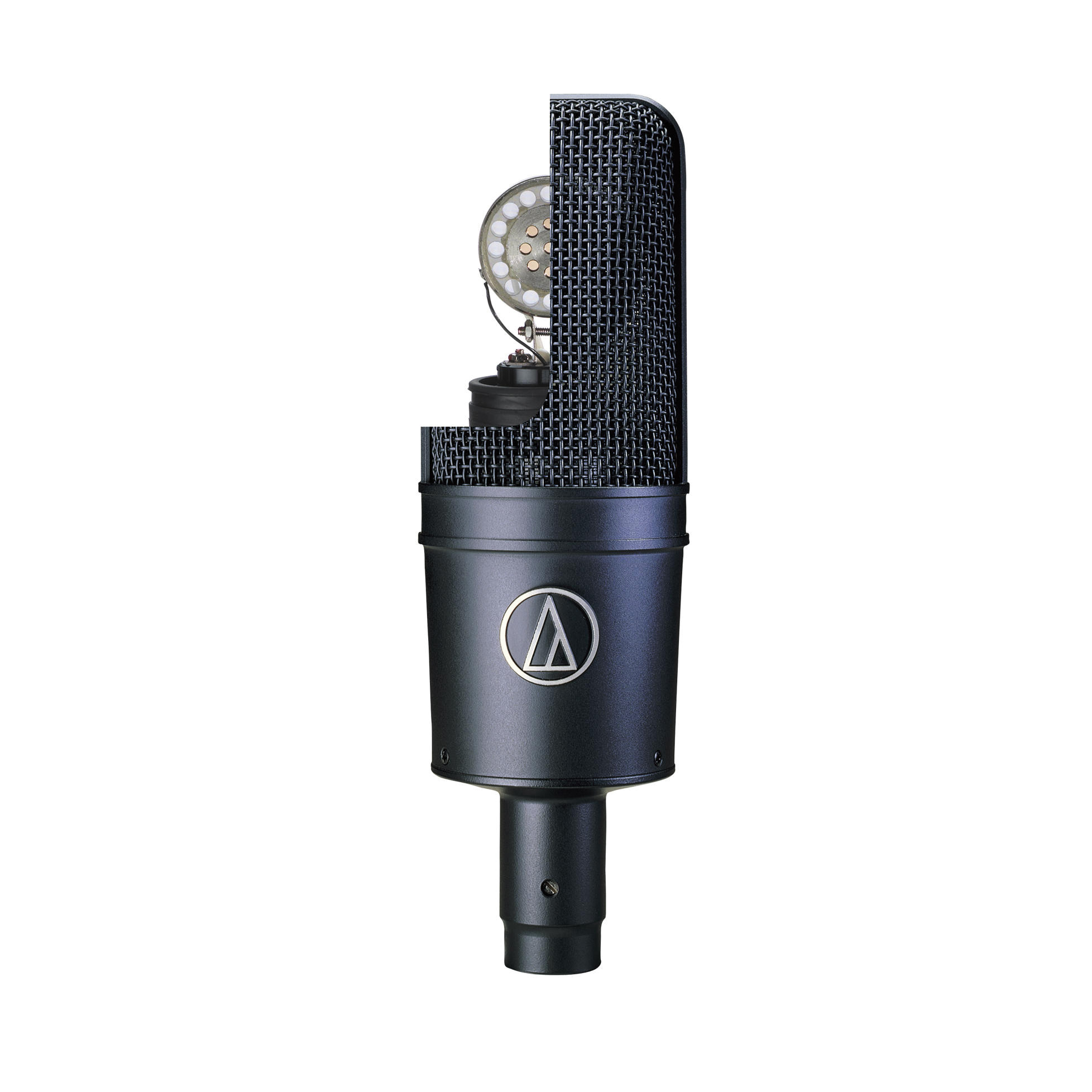

• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use
• Floating-construction capsule assembly provides isolation from noise and vibration
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

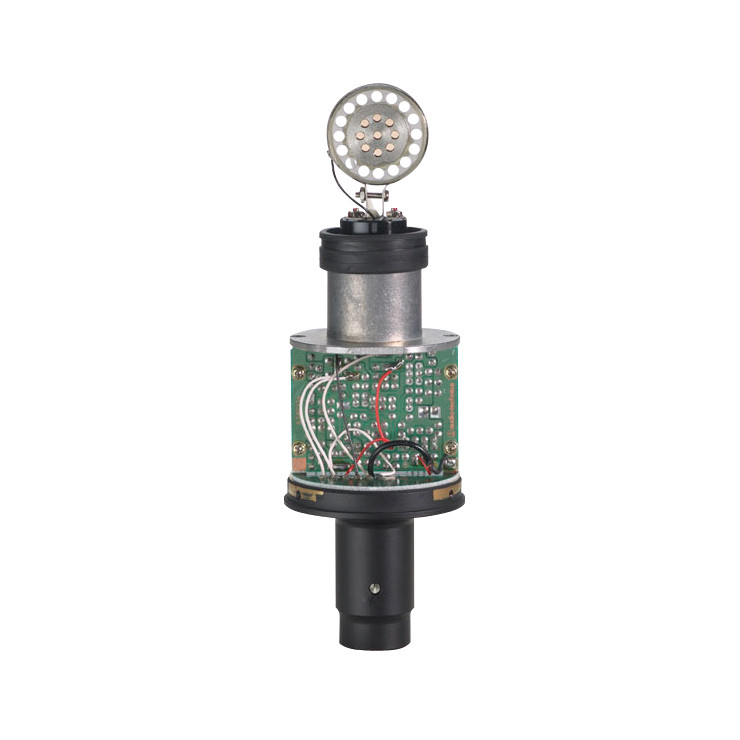

• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

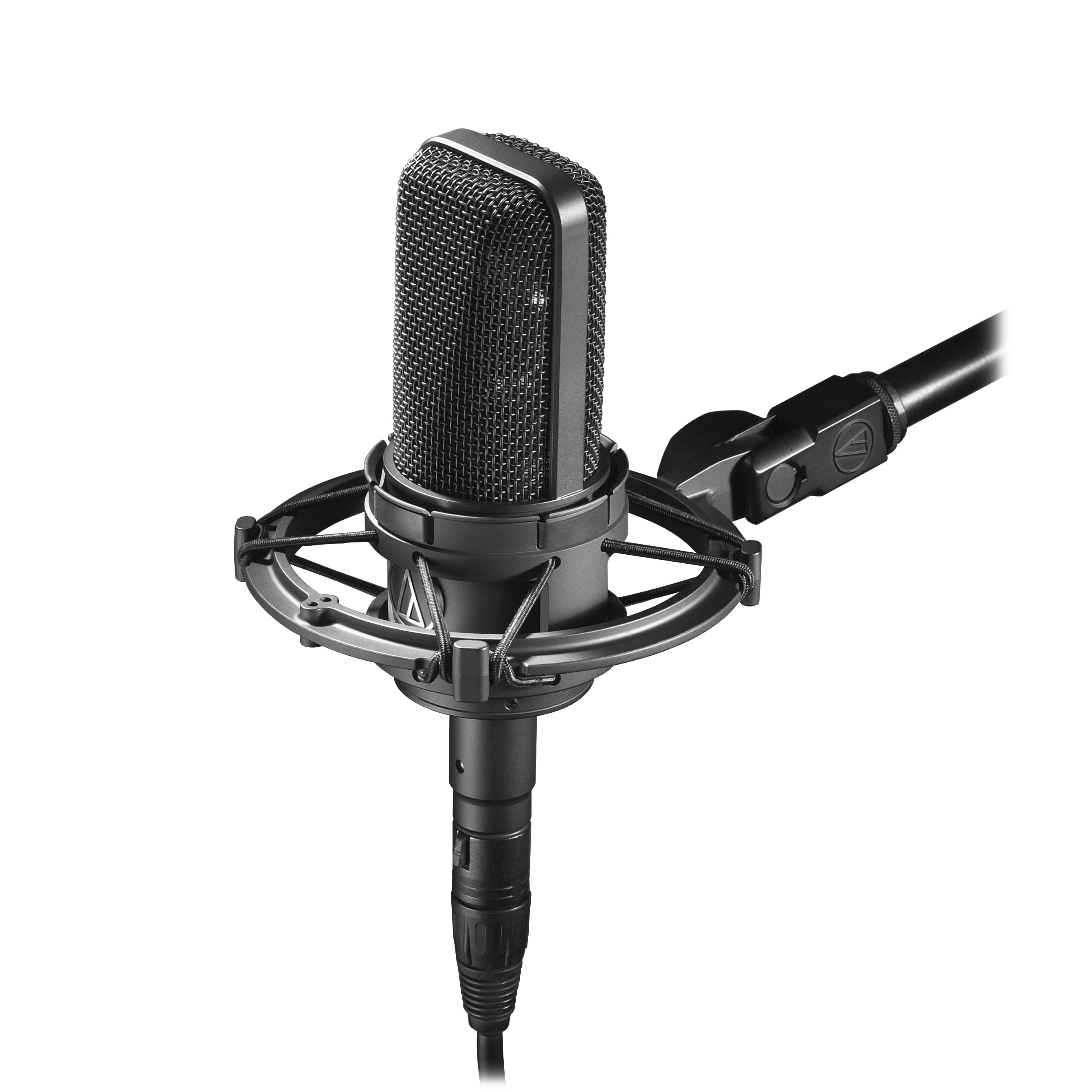

• Custom shock mount provides superior isolation
ELEMENTFixed-charge back plate, permanently polarized condenser

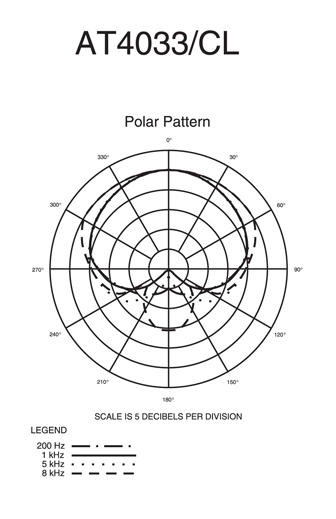

POLAR PATTERNCardioid

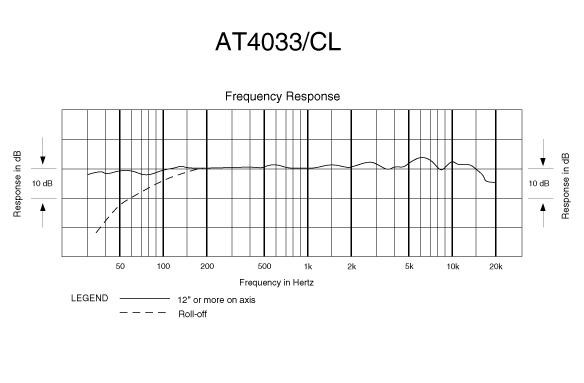

FREQUENCY RESPONSE30-20,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY-32 dB (25.1 mV) re 1V at 1 Pa
IMPEDANCE100 ohms
MAXIMUM INPUT SOUND LEVEL145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB pad (nominal)
NOISE17 dB SPL
DYNAMIC RANGE (typical)128 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO77 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS48V DC, 3.2 mA typical
SWITCHESFlat, roll-off;
10 dB pad (nominal)
WEIGHT13.4 oz (380 g)
DIMENSIONS6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type

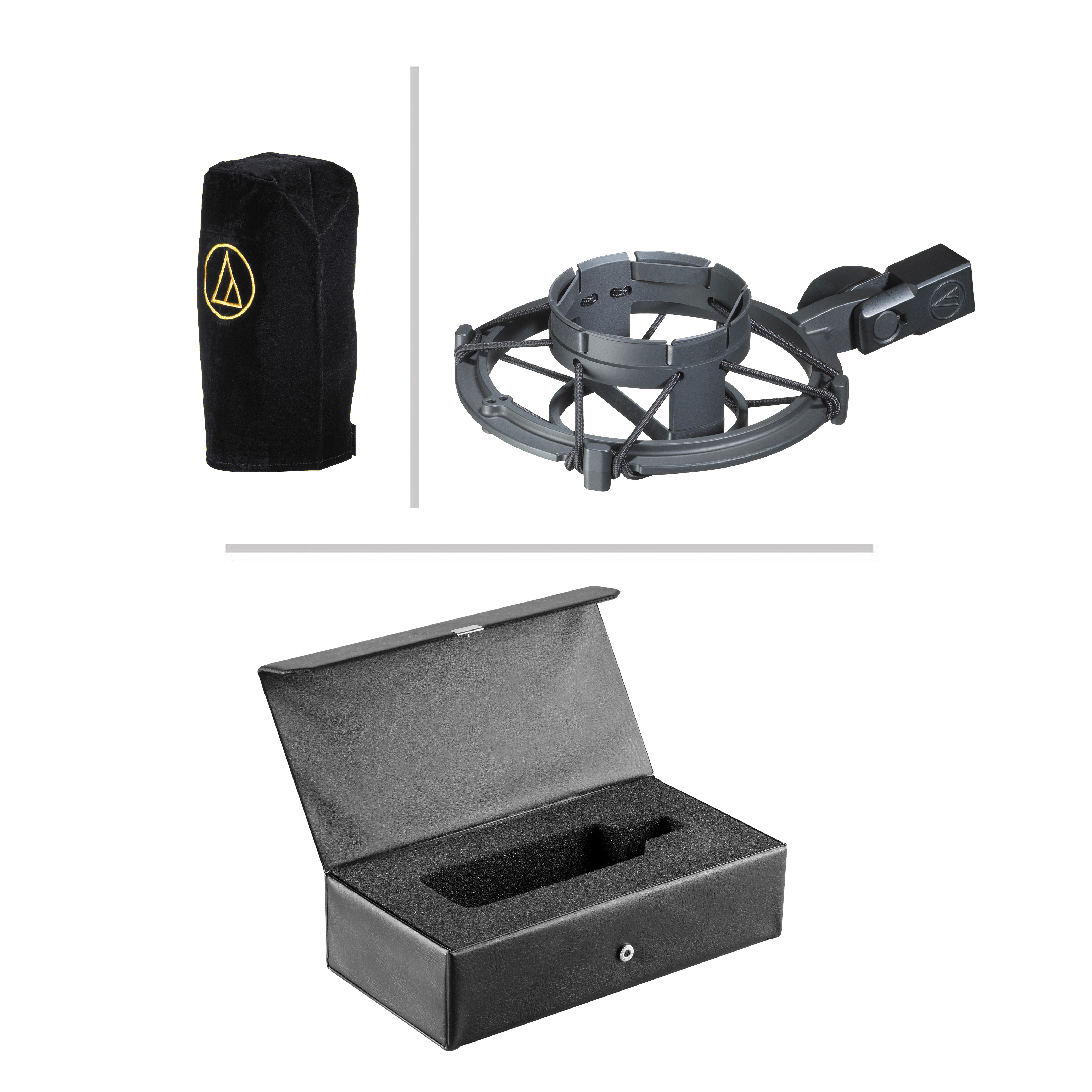

ACCESSORIES FURNISHEDAT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLER1
