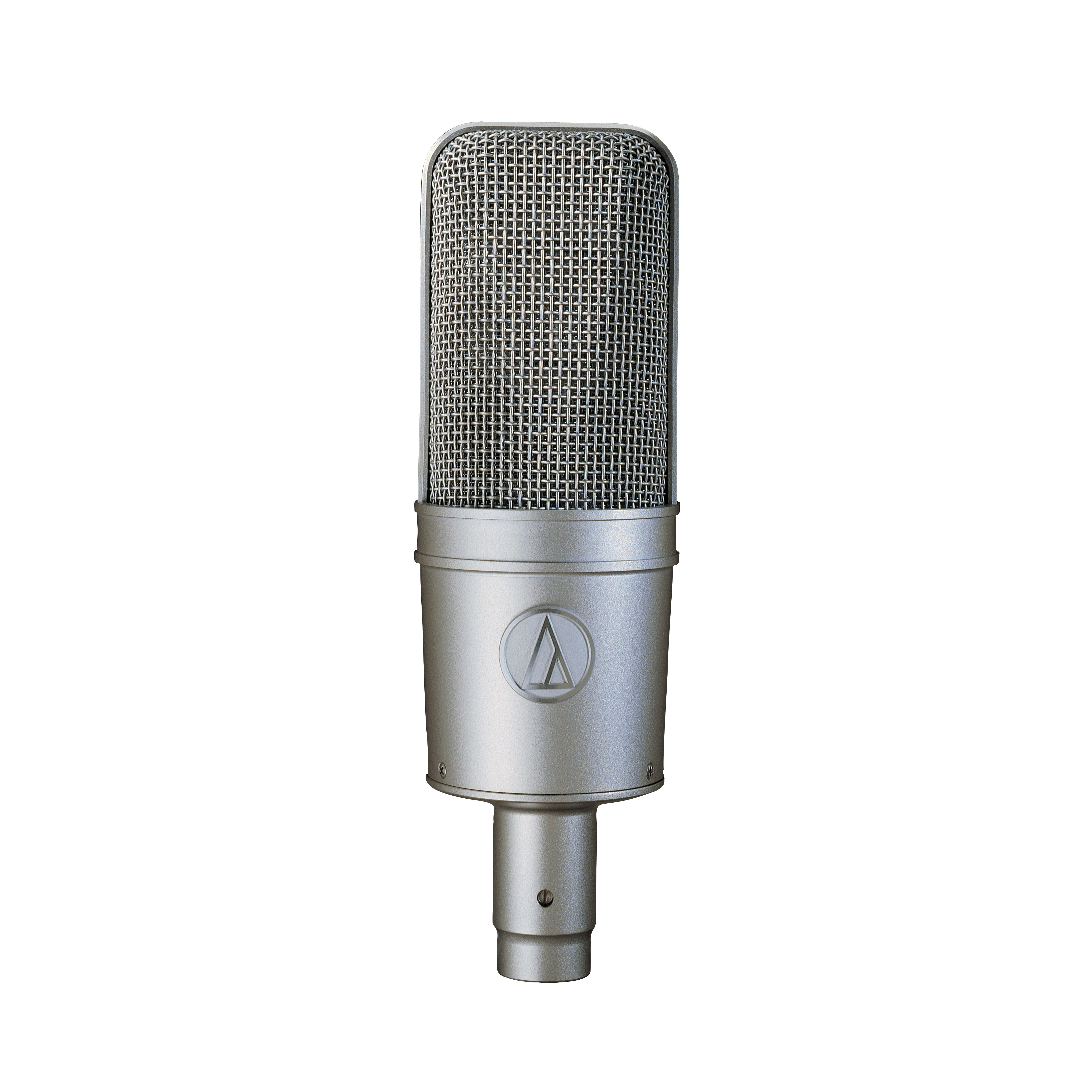

Audio Technica AT4047/SV Cardioid Studio Condenser Microphone

FEATURES
• Designed for critical studio, live sound and broadcast applications
• Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
• Exceptionally low self-noise, wide dynamic range and high SPL capability
• Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
• Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
• Vintage silver-matte finish on microphone and shock mount
• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
• State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
• Switchable 80 Hz hi-pass filter and 10 dB pad

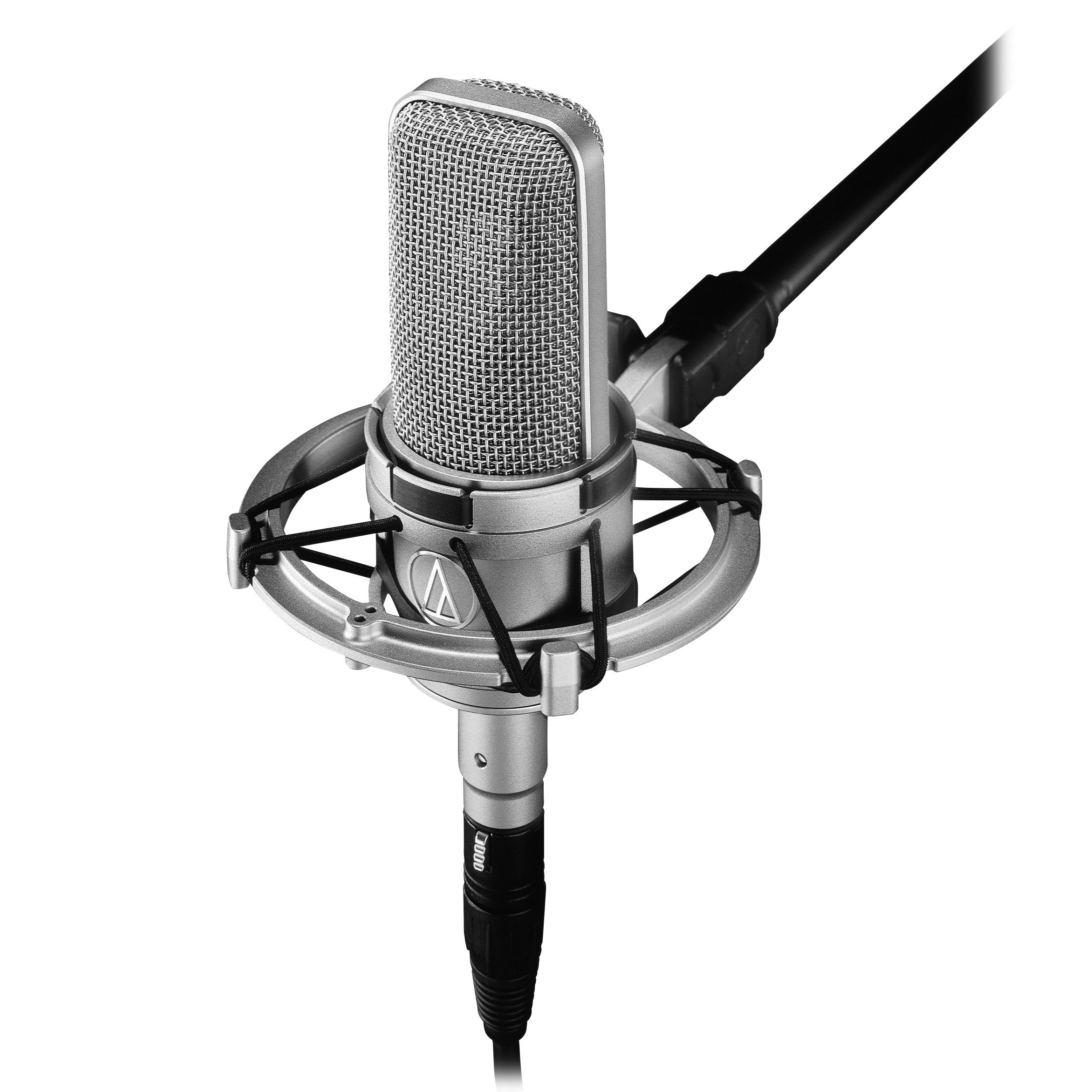

• Custom shock mount provides superior isolation

ELEMENTExternally-polarized (DC bias) condenser

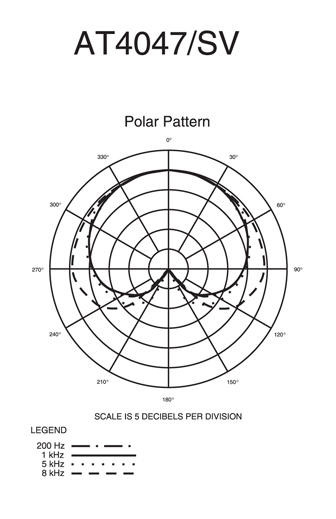

POLAR PATTERNCardioid

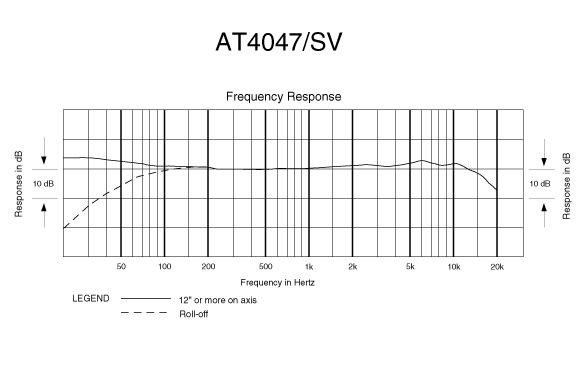

FREQUENCY RESPONSE20-18,000 Hz
LOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octave
OPEN CIRCUIT SENSITIVITY-35 dB (17.7 mV) dB re 1V at 1 Pa
IMPEDANCE250 ohms
MAXIMUM INPUT SOUND LEVEL149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)
NOISE9 dB SPL
DYNAMIC RANGE (typical)140 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO85 dB, 1 kHz at 1 Pa
PHANTOM POWER REQUIREMENTS48V DC, 3.0 mA typical
SWITCHESFlat, roll-off;
10 dB pad (nominal)
WEIGHT14.5 oz (410 g)
DIMENSIONS6.69" (170.0 mm) long,
2.10" (53.4 mm) maximum body diameter
OUTPUT CONNECTORIntegral 3-pin XLRM-type

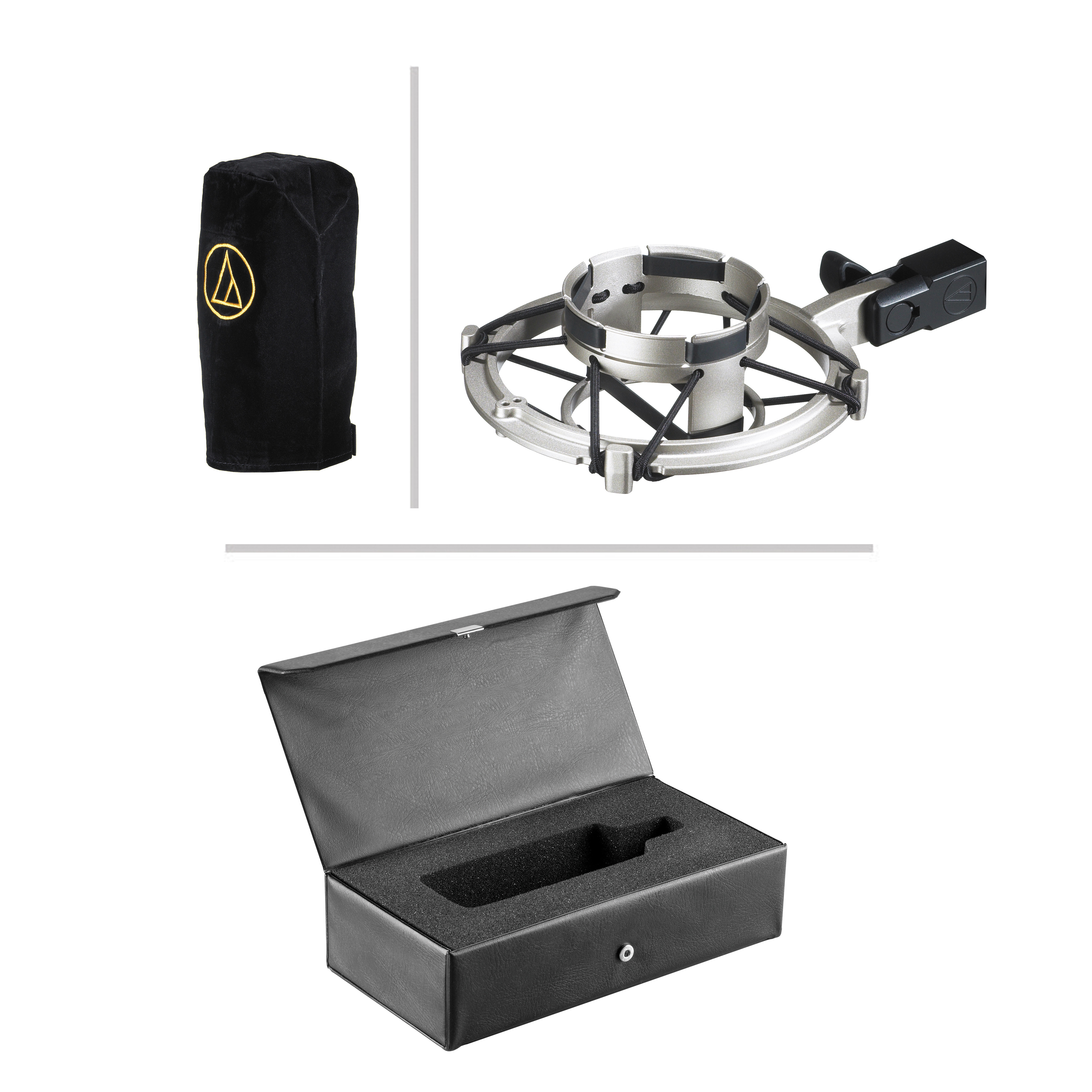

ACCESSORIES FURNISHEDAT8449/SV shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
AUDIO-TECHNICA CASE STYLER1
